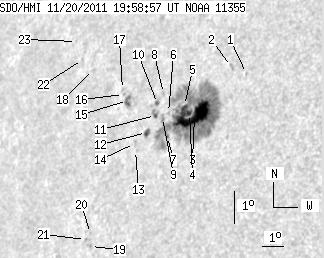

SDO HMI 2011-11-20 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.89 | 264.88 | 37.64 | 199.44 | 14.17 | 252.32 | -47.90 | 73.04 | 0.7543 | -448.7 | -295.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.62 | 15.51 | 254.63 | -45.59 | 70.70 | 0.7317 | 410.0 | 343.9 | |
| 0.00 | 2.31 | 0.00 | 1.70 | 15.70 | 253.90 | -46.31 | 70.63 | 0.7402 | -738.0 | -547.1 | |
| 37.89 | 231.64 | 28.29 | 173.39 | 14.18 | 252.67 | -47.54 | 72.95 | 0.7505 | -972.4 | -344.6 | |
| 1.20 | -3.00 | 0.90 | -3.00 | 14.23 | 252.43 | -47.79 | 72.93 | 0.7533 | -724.4 | 999999 | |
| 0.43 | -3.00 | 0.32 | -3.00 | 14.47 | 252.14 | -48.08 | 72.69 | 0.7570 | -479.0 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.92 | 14.23 | 251.46 | -48.76 | 73.14 | 0.7639 | -390.0 | -298.9 | |
| 0.77 | -3.00 | 0.59 | -3.00 | 13.51 | 251.62 | -48.60 | 74.04 | 0.7609 | -313.2 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.93 | 14.80 | 251.06 | -49.16 | 72.49 | 0.7693 | 143.0 | 79.0 | |
| 0.00 | 2.66 | 0.00 | 2.04 | 14.08 | 251.23 | -48.99 | 73.39 | 0.7661 | -434.0 | -372.5 | |
| 1.46 | 2.31 | 1.13 | 1.79 | 14.49 | 250.87 | -49.35 | 72.93 | 0.7707 | -402.4 | -389.7 | |
| 1.20 | 4.11 | 0.93 | 3.18 | 14.13 | 250.88 | -49.33 | 73.39 | 0.7699 | -371.3 | -285.2 | |
| 2.74 | 3.77 | 2.13 | 2.92 | 13.60 | 250.61 | -49.61 | 74.12 | 0.7719 | -296.8 | -59.2 | |
| 0.00 | 0.34 | 0.00 | 0.27 | 13.05 | 250.25 | -49.97 | 74.90 | 0.7749 | 605.0 | 616.2 | |
| 0.00 | 1.37 | 0.00 | 1.07 | 13.26 | 250.14 | -50.08 | 74.65 | 0.7764 | 582.0 | 551.1 | |
| 4.20 | 5.66 | 3.35 | 4.51 | 14.54 | 249.42 | -50.80 | 73.15 | 0.7861 | 695.4 | 721.8 | |
| 0.00 | 0.77 | 0.00 | 0.62 | 14.72 | 249.17 | -51.05 | 72.98 | 0.7890 | 511.0 | 463.4 | |
| 0.00 | 1.20 | 0.00 | 0.97 | 14.87 | 249.07 | -51.15 | 72.81 | 0.7902 | 590.0 | 473.6 | |
| 0.00 | 0.77 | 0.00 | 0.64 | 15.43 | 247.42 | -52.80 | 72.42 | 0.8077 | 554.0 | 472.6 | |
| 0.00 | 0.77 | 0.00 | 0.62 | 10.11 | 248.83 | -51.39 | 78.85 | 0.7864 | 500.0 | 461.0 | |
| 0.00 | 1.03 | 0.00 | 0.82 | 10.50 | 248.74 | -51.48 | 78.37 | 0.7877 | 631.0 | 532.7 | |
| 0.00 | 1.20 | 0.00 | 0.96 | 10.31 | 248.54 | -51.68 | 78.63 | 0.7896 | 468.0 | 441.3 | |
| 0.00 | 1.11 | 0.00 | 0.95 | 15.71 | 246.74 | -53.47 | 72.19 | 0.8147 | 247.0 | 179.4 | |
| 0.00 | 0.60 | 0.00 | 0.52 | 16.25 | 246.22 | -54.00 | 71.64 | 0.8206 | 332.0 | 338.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
