SDO HMI 2011-11-20 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.40 | 302.63 | 79.84 | 497.31 | 15.85 | 228.11 | -72.10 | 74.05 | 0.9504 | -301.8 | -83.6 | |
|
previous
or next observation for the same group /

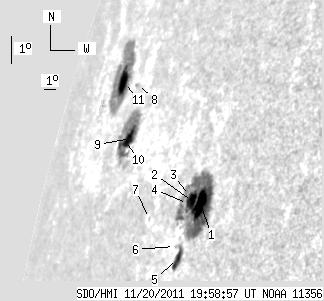

back to the solar disc SDO HMI 2011-11-20 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.23 | 145.65 | 21.45 | 183.55 | 14.26 | 233.89 | -66.33 | 75.41 | 0.9190 | -868.1 | -239.2 | |
| 8.14 | -1.00 | 10.41 | -1.00 | 14.30 | 233.24 | -66.98 | 75.41 | 0.9232 | -247.5 | 999999 | |
| 0.77 | -1.00 | 1.00 | -1.00 | 14.47 | 232.89 | -67.33 | 75.25 | 0.9255 | 102.7 | 999999 | |
| 1.29 | -1.00 | 1.67 | -1.00 | 14.22 | 232.88 | -67.33 | 75.52 | 0.9255 | 183.5 | 999999 | |
| 8.32 | 12.43 | 10.64 | 15.91 | 12.56 | 233.04 | -67.17 | 77.31 | 0.9238 | -234.8 | -129.8 | |
| 0.00 | 0.69 | 0.00 | 0.89 | 12.91 | 232.61 | -67.60 | 76.96 | 0.9267 | -34.0 | -106.0 | |
| 0.00 | 0.86 | 0.00 | 1.26 | 13.67 | 230.00 | -70.22 | 76.27 | 0.9427 | 113.0 | 131.4 | |
| 0.00 | 1.63 | 0.00 | 3.14 | 17.62 | 225.15 | -75.07 | 72.36 | 0.9675 | 240.0 | 194.5 | |
| 7.97 | 58.47 | 14.46 | 107.77 | 15.98 | 226.14 | -74.08 | 74.01 | 0.9629 | 460.9 | 7.3 | |
| 2.31 | -9.00 | 4.31 | -9.00 | 15.90 | 225.64 | -74.58 | 74.11 | 0.9651 | -248.1 | 999999 | |
| 7.37 | 82.90 | 15.90 | 184.79 | 17.62 | 223.46 | -76.76 | 72.42 | 0.9743 | -479.7 | 0.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
