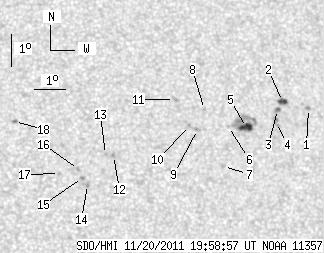

SDO HMI 2011-11-20 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.89 | 56.83 | 5.88 | 30.45 | 18.10 | 316.10 | 15.88 | 316.92 | 0.3809 | -528.7 | -441.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.98 | 18.71 | 319.11 | 18.89 | 312.99 | 0.4209 | -734.0 | -682.9 | |
| 3.60 | 4.46 | 1.96 | 2.42 | 18.93 | 318.27 | 18.05 | 314.63 | 0.4137 | -927.2 | -826.3 | |
| 0.00 | 2.66 | 0.00 | 1.44 | 18.69 | 318.08 | 17.86 | 314.47 | 0.4090 | -1019.0 | -841.5 | |
| 0.00 | 4.37 | 0.00 | 2.37 | 18.29 | 318.01 | 17.79 | 313.84 | 0.4039 | -772.0 | -748.8 | |
| 7.29 | 25.20 | 3.92 | 13.56 | 18.15 | 317.01 | 16.79 | 315.15 | 0.3910 | -1085.4 | -416.7 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 18.18 | 316.43 | 16.21 | 316.19 | 0.3848 | 532.0 | 303.4 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 16.96 | 316.16 | 15.94 | 314.24 | 0.3682 | -795.0 | -691.3 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 18.71 | 315.70 | 15.48 | 318.45 | 0.3828 | 844.0 | 691.5 | |
| 0.00 | 1.80 | 0.00 | 0.96 | 18.10 | 315.42 | 15.20 | 317.81 | 0.3727 | 978.0 | 748.7 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 18.23 | 315.17 | 14.95 | 318.50 | 0.3715 | 969.0 | 829.7 | |
| 0.00 | 2.31 | 0.00 | 1.24 | 19.03 | 314.76 | 14.54 | 320.74 | 0.3767 | -848.0 | -697.5 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 17.32 | 312.67 | 12.45 | 321.79 | 0.3342 | -912.0 | -642.3 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 17.36 | 312.42 | 12.20 | 322.41 | 0.3321 | -816.0 | -624.2 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 16.44 | 311.79 | 11.57 | 322.03 | 0.3140 | -1060.0 | -881.4 | |
| 0.00 | 1.71 | 0.00 | 0.89 | 16.66 | 311.64 | 11.43 | 322.81 | 0.3153 | -901.0 | -713.0 | |
| 0.00 | 1.37 | 0.00 | 0.72 | 16.90 | 311.53 | 11.31 | 323.56 | 0.3174 | -849.0 | -610.0 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 16.79 | 310.93 | 10.71 | 324.80 | 0.3100 | 855.0 | 641.9 | |
| 0.00 | 1.89 | 0.00 | 0.99 | 18.39 | 309.60 | 9.38 | 331.00 | 0.3204 | -967.0 | -684.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
