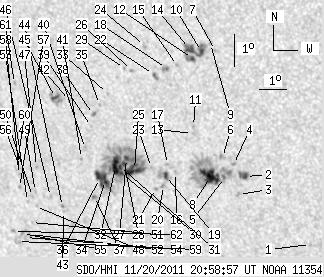

SDO HMI 2011-11-20 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.27 | 326.86 | 50.75 | 205.06 | -16.04 | 266.14 | -33.52 | 120.09 | 0.6153 | -51.4 | -65.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.67 | -18.59 | 271.74 | -27.93 | 128.33 | 0.5681 | 643.0 | 586.5 | |
| 2.83 | 6.09 | 1.71 | 3.68 | -16.49 | 269.80 | -29.87 | 123.48 | 0.5747 | 985.0 | 922.0 | |
| 0.00 | 2.31 | 0.00 | 1.41 | -17.06 | 269.45 | -30.22 | 124.05 | 0.5829 | 772.0 | 569.2 | |
| 0.00 | 1.63 | 0.00 | 0.99 | -16.13 | 269.43 | -30.23 | 122.62 | 0.5766 | 981.0 | 758.5 | |
| 1.20 | 75.79 | 0.73 | 46.39 | -16.54 | 269.04 | -30.63 | 122.93 | 0.5841 | 797.1 | 346.9 | |
| 0.00 | 2.91 | 0.00 | 1.77 | -15.91 | 269.07 | -30.59 | 122.02 | 0.5794 | 722.0 | 548.2 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -12.61 | 269.32 | -30.34 | 116.95 | 0.5552 | -324.0 | -262.2 | |
| 16.89 | -5.00 | 10.34 | -5.00 | -16.52 | 268.54 | -31.13 | 122.51 | 0.5900 | 933.7 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.87 | -12.40 | 269.17 | -30.49 | 116.50 | 0.5559 | -13.0 | 64.9 | |
| 2.14 | 24.18 | 1.28 | 14.50 | -12.65 | 268.82 | -30.84 | 116.66 | 0.5620 | 992.1 | 712.3 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -14.97 | 268.19 | -31.48 | 119.89 | 0.5841 | -883.0 | -677.9 | |
| 1.71 | -10.00 | 1.03 | -10.00 | -12.87 | 268.47 | -31.19 | 116.78 | 0.5678 | 693.5 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -15.19 | 268.12 | -31.55 | 120.18 | 0.5863 | -711.0 | -559.2 | |
| 7.29 | -10.00 | 4.37 | -10.00 | -12.57 | 268.41 | -31.26 | 116.24 | 0.5668 | 860.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -13.10 | 267.91 | -31.76 | 116.75 | 0.5764 | 785.0 | 625.4 | |
| 0.00 | 1.29 | 0.00 | 0.80 | -16.42 | 267.28 | -32.38 | 121.42 | 0.6043 | 500.0 | 337.1 | |
| 0.00 | 1.46 | 0.00 | 0.91 | -16.18 | 267.03 | -32.63 | 120.88 | 0.6057 | -781.0 | -541.9 | |
| 0.34 | 3.34 | 0.21 | 2.03 | -13.20 | 267.50 | -32.17 | 116.64 | 0.5822 | 924.2 | 703.2 | |
| 2.49 | 10.46 | 1.55 | 6.52 | -16.52 | 266.89 | -32.77 | 121.29 | 0.6095 | 572.0 | 42.2 | |
| 0.00 | 2.83 | 0.00 | 1.77 | -16.84 | 266.76 | -32.91 | 121.65 | 0.6131 | 648.0 | 440.3 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -16.94 | 266.44 | -33.22 | 121.57 | 0.6175 | 517.0 | 412.9 | |
| 0.34 | 2.91 | 0.21 | 1.78 | -13.39 | 267.00 | -32.67 | 116.61 | 0.5896 | 761.8 | 583.5 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -16.28 | 266.42 | -33.24 | 120.60 | 0.6136 | -702.0 | -668.5 | |
| 0.00 | 2.31 | 0.00 | 1.41 | -12.51 | 266.80 | -32.86 | 115.10 | 0.5872 | 649.0 | 595.7 | |
| 12.69 | 130.83 | 8.01 | 83.10 | -16.36 | 265.78 | -33.89 | 120.27 | 0.6217 | -1019.9 | -438.6 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -13.29 | 266.21 | -33.45 | 115.95 | 0.5989 | 697.0 | 580.2 | |
| 2.49 | -25.00 | 1.57 | -25.00 | -16.02 | 265.55 | -34.12 | 119.62 | 0.6225 | -1075.5 | 999999 | |
| 1.37 | -25.00 | 0.87 | -25.00 | -16.18 | 265.44 | -34.22 | 119.78 | 0.6247 | -1028.4 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.74 | -13.23 | 265.97 | -33.70 | 115.71 | 0.6017 | 460.0 | 488.8 | |
| 1.37 | -25.00 | 0.87 | -25.00 | -16.50 | 265.26 | -34.40 | 120.12 | 0.6286 | -985.1 | 999999 | |
| 1.29 | -25.00 | 0.82 | -25.00 | -16.28 | 265.23 | -34.43 | 119.79 | 0.6277 | -1088.5 | 999999 | |
| 6.86 | -25.00 | 4.36 | -25.00 | -16.28 | 265.08 | -34.58 | 119.70 | 0.6295 | -969.9 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.70 | -14.02 | 265.21 | -34.46 | 116.44 | 0.6153 | 646.0 | 522.2 | |
| 7.63 | -25.00 | 4.89 | -25.00 | -16.73 | 264.61 | -35.05 | 120.03 | 0.6376 | -665.0 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -14.36 | 264.85 | -34.82 | 116.74 | 0.6216 | 505.0 | 503.4 | |
| 6.77 | -25.00 | 4.35 | -25.00 | -16.67 | 264.40 | -35.27 | 119.81 | 0.6398 | 437.0 | 999999 | |
| 1.37 | 1.80 | 0.89 | 1.17 | -17.24 | 264.08 | -35.58 | 120.42 | 0.6467 | 650.1 | 755.2 | |
| 1.37 | 1.97 | 0.87 | 1.25 | -14.68 | 264.57 | -35.10 | 117.04 | 0.6267 | 639.8 | 585.1 | |
| 0.00 | 0.77 | 0.00 | 0.49 | -15.05 | 264.42 | -35.24 | 117.50 | 0.6305 | 426.0 | 348.6 | |
| 0.00 | 1.97 | 0.00 | 1.27 | -15.75 | 264.06 | -35.61 | 118.28 | 0.6386 | -800.0 | -628.7 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -16.06 | 263.84 | -35.82 | 118.60 | 0.6429 | -297.0 | -323.4 | |
| 0.00 | 1.37 | 0.00 | 0.88 | -14.27 | 263.74 | -35.92 | 115.94 | 0.6346 | -722.0 | -654.8 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -17.75 | 262.77 | -36.90 | 120.29 | 0.6646 | 491.0 | 459.6 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -17.59 | 262.77 | -36.90 | 120.08 | 0.6637 | 213.0 | 95.5 | |
| 2.83 | 10.03 | 1.82 | 6.45 | -14.19 | 263.22 | -36.44 | 115.53 | 0.6405 | -877.6 | -659.2 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -17.29 | 262.37 | -37.29 | 119.42 | 0.6665 | -900.0 | -700.4 | |
| 0.00 | 1.03 | 0.00 | 0.68 | -16.36 | 262.04 | -37.62 | 117.95 | 0.6654 | -762.0 | -712.3 | |
| 0.00 | 0.51 | 0.00 | 0.34 | -17.62 | 261.70 | -37.96 | 119.48 | 0.6759 | -554.0 | -534.3 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -17.14 | 261.82 | -37.85 | 118.90 | 0.6721 | -638.0 | -564.2 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -17.30 | 261.66 | -38.00 | 119.03 | 0.6747 | -678.0 | -535.0 | |
| 0.00 | 0.51 | 0.00 | 0.35 | -18.13 | 261.41 | -38.25 | 120.00 | 0.6818 | -590.0 | -519.3 | |
| 0.00 | 1.63 | 0.00 | 1.11 | -18.51 | 261.23 | -38.43 | 120.41 | 0.6858 | -784.0 | -648.4 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -17.47 | 261.42 | -38.24 | 119.12 | 0.6782 | -745.0 | -577.7 | |
| 0.00 | 1.46 | 0.00 | 0.99 | -18.61 | 261.05 | -38.62 | 120.43 | 0.6884 | -630.0 | -570.2 | |
| 0.00 | 3.60 | 0.00 | 2.45 | -18.49 | 260.96 | -38.71 | 120.22 | 0.6887 | -804.0 | -623.0 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -16.43 | 261.40 | -38.27 | 117.69 | 0.6733 | -680.0 | -490.5 | |
| 0.00 | 1.29 | 0.00 | 0.86 | -17.03 | 261.21 | -38.45 | 118.41 | 0.6784 | -626.0 | -508.3 | |
| 0.00 | 1.11 | 0.00 | 0.75 | -16.62 | 261.31 | -38.35 | 117.91 | 0.6752 | -685.0 | -580.5 | |
| 0.00 | 3.69 | 0.00 | 2.52 | -18.75 | 260.69 | -38.98 | 120.41 | 0.6930 | -503.0 | -449.0 | |
| 0.00 | 1.80 | 0.00 | 1.21 | -16.47 | 261.23 | -38.44 | 117.65 | 0.6753 | -405.0 | -353.4 | |
| 0.00 | 1.11 | 0.00 | 0.73 | -13.79 | 261.72 | -37.94 | 114.16 | 0.6568 | -640.0 | -525.8 | |
| 0.00 | 1.71 | 0.00 | 1.17 | -18.43 | 260.61 | -39.05 | 119.95 | 0.6922 | -716.0 | -572.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
