SDO HMI 2011-11-20 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.93 | 320.13 | 84.61 | 511.68 | 15.84 | 228.06 | -71.60 | 74.03 | 0.9477 | -334.3 | -71.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

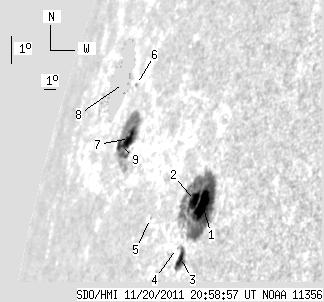

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.26 | 152.69 | 22.27 | 188.49 | 14.25 | 233.87 | -65.80 | 75.38 | 0.9153 | -877.8 | -222.5 | |
| 8.57 | -1.00 | 10.71 | -1.00 | 14.35 | 233.20 | -66.46 | 75.32 | 0.9199 | -266.4 | 999999 | |
| 8.32 | 13.29 | 10.39 | 16.59 | 12.61 | 233.09 | -66.58 | 77.22 | 0.9199 | -308.5 | -47.4 | |
| 0.00 | 0.51 | 0.00 | 0.65 | 12.86 | 232.64 | -67.03 | 76.97 | 0.9230 | -42.0 | -118.8 | |
| 0.00 | 0.86 | 0.00 | 1.23 | 13.68 | 229.97 | -69.69 | 76.23 | 0.9397 | 117.0 | 125.9 | |
| 0.00 | 1.29 | 0.00 | 2.41 | 17.63 | 225.06 | -74.61 | 72.32 | 0.9656 | 298.0 | 219.1 | |
| 9.09 | 62.24 | 15.98 | 110.94 | 16.00 | 226.02 | -73.65 | 73.98 | 0.9609 | 490.4 | 48.0 | |
| 8.06 | 89.25 | 16.74 | 191.37 | 17.61 | 223.45 | -76.21 | 72.41 | 0.9722 | -541.1 | -1.9 | |
| 4.63 | -7.00 | 8.52 | -7.00 | 15.79 | 225.32 | -74.35 | 74.22 | 0.9641 | -332.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
