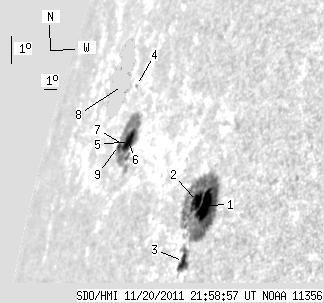

SDO HMI 2011-11-20 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.70 | 336.78 | 79.48 | 522.01 | 15.82 | 228.11 | -71.00 | 74.02 | 0.9446 | -367.3 | -86.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.78 | 159.90 | 22.43 | 193.35 | 14.26 | 233.83 | -65.28 | 75.33 | 0.9119 | -884.9 | -228.5 | |
| 7.80 | -1.00 | 9.53 | -1.00 | 14.36 | 233.25 | -65.87 | 75.26 | 0.9159 | -297.3 | 999999 | |
| 6.52 | 16.12 | 7.96 | 19.69 | 12.53 | 233.18 | -65.93 | 77.26 | 0.9156 | -346.0 | -210.2 | |
| 0.00 | 0.86 | 0.00 | 1.55 | 17.65 | 225.06 | -74.05 | 72.28 | 0.9631 | 272.0 | 238.1 | |
| 9.26 | 65.33 | 15.79 | 112.59 | 15.95 | 226.05 | -73.06 | 74.00 | 0.9582 | 488.6 | 57.9 | |
| 0.51 | -5.00 | 0.90 | -5.00 | 16.09 | 225.59 | -73.52 | 73.87 | 0.9604 | -176.8 | 999999 | |
| 1.80 | -5.00 | 3.14 | -5.00 | 15.81 | 225.64 | -73.48 | 74.16 | 0.9601 | -201.6 | 999999 | |
| 8.40 | 94.57 | 16.79 | 194.83 | 17.59 | 223.44 | -75.68 | 72.41 | 0.9701 | -596.3 | -25.5 | |
| 1.63 | -5.00 | 2.94 | -5.00 | 15.79 | 224.99 | -74.13 | 74.21 | 0.9631 | -444.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
