SDO HMI 2011-11-20 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.99 | 326.32 | 54.73 | 201.96 | -15.98 | 266.26 | -32.30 | 120.85 | 0.6003 | -22.2 | -67.8 | |
|
previous
or next observation for the same group /

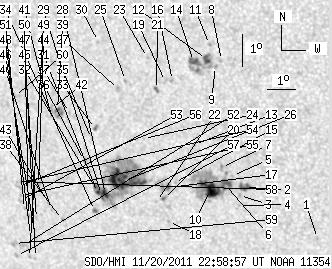

back to the solar disc SDO HMI 2011-11-20 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.71 | -18.01 | 271.99 | -26.57 | 128.78 | 0.5477 | 678.0 | 530.1 | |
| 5.66 | 7.29 | 3.38 | 4.36 | -16.46 | 269.69 | -28.87 | 124.26 | 0.5625 | 916.8 | 838.1 | |
| 0.00 | 1.29 | 0.00 | 0.77 | -16.71 | 269.47 | -29.09 | 124.46 | 0.5669 | 734.0 | 606.9 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -17.02 | 269.42 | -29.14 | 124.89 | 0.5699 | 729.0 | 632.7 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -16.09 | 269.32 | -29.24 | 123.38 | 0.5642 | 708.0 | 588.4 | |
| 7.89 | 80.86 | 4.75 | 48.95 | -16.38 | 269.03 | -29.53 | 123.57 | 0.5698 | 913.0 | 315.0 | |
| 0.00 | 2.14 | 0.00 | 1.29 | -15.85 | 268.97 | -29.59 | 122.71 | 0.5667 | 751.0 | 520.7 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -12.54 | 269.45 | -29.11 | 117.73 | 0.5387 | -58.0 | -167.6 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -12.72 | 269.22 | -29.35 | 117.87 | 0.5429 | 778.0 | 291.3 | |
| 16.03 | -6.00 | 9.71 | -6.00 | -16.54 | 268.47 | -30.09 | 123.36 | 0.5777 | 958.2 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -12.05 | 269.09 | -29.47 | 116.65 | 0.5404 | 797.0 | 671.3 | |
| 4.20 | 26.15 | 2.48 | 15.47 | -12.52 | 268.93 | -29.63 | 117.30 | 0.5454 | 946.1 | 651.8 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -15.15 | 268.13 | -30.43 | 120.95 | 0.5723 | -635.0 | -504.8 | |
| 5.66 | -12.00 | 3.36 | -12.00 | -12.59 | 268.46 | -30.10 | 117.08 | 0.5518 | 858.0 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -16.35 | 267.20 | -31.36 | 122.07 | 0.5915 | 389.0 | 316.1 | |
| 0.00 | 1.71 | 0.00 | 1.03 | -13.18 | 267.64 | -30.92 | 117.47 | 0.5661 | 744.0 | 621.1 | |
| 1.97 | 6.52 | 1.21 | 4.01 | -16.51 | 266.96 | -31.60 | 122.12 | 0.5955 | 641.7 | -20.8 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -17.58 | 266.75 | -31.81 | 123.53 | 0.6050 | 690.0 | 564.2 | |
| 0.00 | 2.23 | 0.00 | 1.34 | -13.22 | 267.39 | -31.17 | 117.34 | 0.5695 | 809.0 | 615.3 | |
| 1.37 | 1.80 | 0.85 | 1.11 | -16.86 | 266.71 | -31.85 | 122.45 | 0.6007 | 452.9 | 510.6 | |
| 0.77 | 2.40 | 0.47 | 1.45 | -13.47 | 267.03 | -31.53 | 117.50 | 0.5756 | 731.8 | 567.2 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -16.96 | 266.44 | -32.12 | 122.39 | 0.6046 | 361.0 | 252.6 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -12.50 | 266.85 | -31.71 | 115.81 | 0.5723 | 783.0 | 682.8 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -15.00 | 266.32 | -32.24 | 119.37 | 0.5936 | -604.0 | -426.5 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -13.22 | 265.95 | -32.61 | 116.37 | 0.5878 | 678.0 | 623.3 | |
| 34.38 | 134.11 | 21.51 | 84.05 | -16.33 | 265.38 | -33.18 | 120.70 | 0.6131 | -1011.1 | -381.9 | |
| 0.00 | 2.66 | 0.00 | 1.63 | -13.50 | 265.65 | -32.91 | 116.62 | 0.5931 | 503.0 | 420.5 | |
| 3.43 | -26.00 | 2.17 | -26.00 | -16.75 | 264.59 | -33.97 | 120.77 | 0.6250 | -741.9 | 999999 | |
| 0.51 | -26.00 | 0.33 | -26.00 | -16.79 | 264.43 | -34.13 | 120.71 | 0.6270 | 291.2 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -12.04 | 265.14 | -33.42 | 114.01 | 0.5919 | 628.0 | 541.0 | |
| 1.03 | -26.00 | 0.65 | -26.00 | -16.73 | 264.30 | -34.26 | 120.53 | 0.6283 | 629.7 | 999999 | |
| 1.97 | -26.00 | 1.25 | -26.00 | -16.57 | 264.25 | -34.31 | 120.28 | 0.6279 | 414.7 | 999999 | |
| 1.20 | 1.97 | 0.75 | 1.23 | -14.73 | 264.61 | -33.96 | 117.81 | 0.6130 | 574.8 | 593.4 | |
| 1.63 | 2.23 | 1.04 | 1.42 | -17.30 | 264.06 | -34.50 | 121.19 | 0.6344 | 631.5 | 610.6 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -15.04 | 264.40 | -34.16 | 118.14 | 0.6173 | 622.0 | 396.3 | |
| 0.00 | 1.80 | 0.00 | 1.14 | -15.73 | 264.01 | -34.55 | 118.91 | 0.6259 | -808.0 | -614.4 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -14.25 | 263.72 | -34.84 | 116.55 | 0.6212 | -819.0 | -678.7 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -17.61 | 262.78 | -35.78 | 120.78 | 0.6511 | 210.0 | 235.7 | |
| 1.29 | 6.35 | 0.82 | 4.02 | -14.17 | 263.29 | -35.27 | 116.17 | 0.6261 | -930.2 | -786.7 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -17.30 | 262.42 | -36.14 | 120.14 | 0.6534 | -823.0 | -723.3 | |
| 0.00 | 0.77 | 0.00 | 0.49 | -14.39 | 263.02 | -35.54 | 116.34 | 0.6305 | -470.0 | -400.1 | |
| 0.00 | 2.23 | 0.00 | 1.42 | -14.15 | 263.07 | -35.49 | 116.00 | 0.6287 | -609.0 | -540.6 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -17.08 | 262.36 | -36.20 | 119.79 | 0.6529 | -712.0 | -577.2 | |
| 0.00 | 1.54 | 0.00 | 1.01 | -16.53 | 262.10 | -36.46 | 118.85 | 0.6528 | -920.0 | -802.8 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -17.60 | 261.77 | -36.79 | 120.15 | 0.6624 | -461.0 | -457.0 | |
| 0.00 | 1.63 | 0.00 | 1.08 | -18.20 | 261.59 | -36.97 | 120.86 | 0.6679 | -678.0 | -534.8 | |
| 0.00 | 0.34 | 0.00 | 0.23 | -18.84 | 261.43 | -37.14 | 121.61 | 0.6733 | -390.0 | -424.2 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -18.14 | 261.41 | -37.15 | 120.67 | 0.6696 | -750.0 | -604.9 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -18.85 | 261.19 | -37.37 | 121.48 | 0.6759 | -570.0 | -443.5 | |
| 0.00 | 1.11 | 0.00 | 0.74 | -17.51 | 261.48 | -37.08 | 119.85 | 0.6653 | -714.0 | -601.0 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -17.30 | 261.38 | -37.18 | 119.49 | 0.6653 | -705.0 | -539.3 | |
| 0.00 | 2.14 | 0.00 | 1.44 | -18.47 | 261.01 | -37.55 | 120.87 | 0.6758 | -826.0 | -687.8 | |
| 0.00 | 1.71 | 0.00 | 1.13 | -17.05 | 261.28 | -37.28 | 119.09 | 0.6650 | -572.0 | -458.3 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -16.48 | 261.41 | -37.15 | 118.38 | 0.6606 | -751.0 | -619.3 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -16.89 | 261.32 | -37.24 | 118.90 | 0.6638 | -604.0 | -538.8 | |
| 0.00 | 2.40 | 0.00 | 1.58 | -16.61 | 261.30 | -37.26 | 118.50 | 0.6625 | -699.0 | -546.4 | |
| 0.00 | 1.89 | 0.00 | 1.27 | -18.79 | 260.69 | -37.88 | 121.11 | 0.6812 | -582.0 | -471.6 | |
| 0.00 | 0.34 | 0.00 | 0.23 | -16.45 | 261.26 | -37.30 | 118.26 | 0.6621 | -473.0 | -492.0 | |
| 0.00 | 3.26 | 0.00 | 2.19 | -18.41 | 260.71 | -37.85 | 120.61 | 0.6789 | -498.0 | -437.4 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -13.81 | 261.73 | -36.83 | 114.75 | 0.6434 | -588.0 | -537.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
