SDO HMI 2011-11-20 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.76 | 317.00 | 41.49 | 231.84 | 14.15 | 252.18 | -46.38 | 72.70 | 0.7374 | -459.2 | -245.5 | |
|
previous
or next observation for the same group /

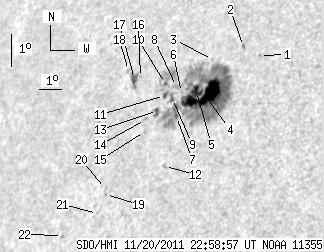

back to the solar disc SDO HMI 2011-11-20 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.60 | 15.42 | 254.72 | -43.84 | 70.31 | 0.7115 | 425.0 | 352.3 | |
| 0.00 | 1.97 | 0.00 | 1.40 | 15.68 | 253.96 | -44.60 | 70.18 | 0.7209 | -548.0 | -465.4 | |
| 0.00 | 1.03 | 0.00 | 0.75 | 15.25 | 252.73 | -45.83 | 71.10 | 0.7339 | -473.0 | -385.4 | |
| 39.19 | 254.07 | 28.38 | 184.48 | 14.18 | 252.66 | -45.90 | 72.55 | 0.7321 | -964.0 | -331.6 | |
| 6.77 | -4.00 | 4.94 | -4.00 | 14.26 | 252.29 | -46.27 | 72.53 | 0.7366 | -693.0 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.57 | 14.21 | 251.63 | -46.93 | 72.75 | 0.7438 | -283.0 | -210.2 | |
| 0.86 | -4.00 | 0.63 | -4.00 | 13.48 | 251.60 | -46.96 | 73.73 | 0.7427 | -510.1 | 999999 | |
| 0.00 | 3.26 | 0.00 | 2.42 | 14.39 | 251.36 | -47.20 | 72.58 | 0.7472 | -77.0 | -147.2 | |
| 1.71 | 10.29 | 1.27 | 7.67 | 14.02 | 251.28 | -47.28 | 73.08 | 0.7474 | -450.5 | -341.8 | |
| 0.69 | 20.15 | 0.51 | 15.11 | 14.47 | 250.84 | -47.72 | 72.60 | 0.7532 | -438.2 | -17.4 | |
| 1.71 | -9.00 | 1.28 | -9.00 | 14.10 | 250.89 | -47.67 | 73.06 | 0.7518 | -473.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.14 | 11.97 | 251.43 | -47.13 | 75.79 | 0.7419 | 683.0 | 587.1 | |
| 1.11 | 3.86 | 0.84 | 2.90 | 13.64 | 250.70 | -47.86 | 73.71 | 0.7531 | -380.4 | -195.0 | |
| 0.00 | 1.63 | 0.00 | 1.23 | 13.36 | 250.23 | -48.33 | 74.18 | 0.7578 | 740.0 | 633.6 | |
| 0.00 | 1.54 | 0.00 | 1.16 | 12.99 | 250.28 | -48.28 | 74.65 | 0.7566 | 680.0 | 618.2 | |
| 0.00 | 1.03 | 0.00 | 0.79 | 14.61 | 249.64 | -48.92 | 72.67 | 0.7665 | 634.0 | 464.7 | |
| 4.72 | 8.57 | 3.64 | 6.62 | 14.58 | 249.37 | -49.19 | 72.77 | 0.7693 | 717.9 | 624.4 | |
| 0.00 | 2.06 | 0.00 | 1.60 | 14.81 | 249.01 | -49.55 | 72.55 | 0.7735 | 544.0 | 466.4 | |
| 0.00 | 0.86 | 0.00 | 0.66 | 11.05 | 248.95 | -49.61 | 77.40 | 0.7683 | 622.0 | 545.4 | |
| 0.00 | 1.63 | 0.00 | 1.26 | 11.23 | 248.91 | -49.66 | 77.17 | 0.7690 | 649.0 | 435.6 | |
| 0.00 | 0.94 | 0.00 | 0.73 | 10.48 | 248.70 | -49.86 | 78.18 | 0.7703 | 543.0 | 489.8 | |
| 0.00 | 0.94 | 0.00 | 0.75 | 9.77 | 247.19 | -51.37 | 79.27 | 0.7859 | 588.0 | 503.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
