SDO HMI 2011-11-20 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.55 | 367.97 | 76.13 | 550.86 | 15.94 | 227.83 | -70.18 | 73.83 | 0.9400 | -376.8 | -71.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-20 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

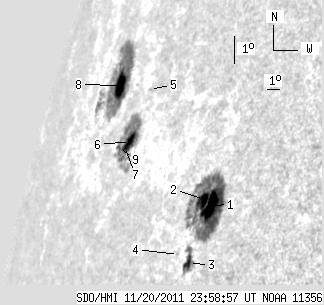

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.27 | 163.36 | 20.96 | 189.36 | 14.26 | 233.86 | -64.14 | 75.23 | 0.9038 | -905.9 | -255.6 | |
| 7.03 | -1.00 | 8.22 | -1.00 | 14.43 | 233.35 | -64.66 | 75.09 | 0.9076 | -372.5 | 999999 | |
| 6.95 | 17.49 | 8.13 | 20.51 | 12.48 | 233.19 | -64.82 | 77.25 | 0.9077 | -363.4 | -166.3 | |
| 0.00 | 0.94 | 0.00 | 1.14 | 12.72 | 232.34 | -65.67 | 77.03 | 0.9138 | 289.0 | 289.5 | |
| 0.00 | 0.69 | 0.00 | 1.08 | 17.58 | 226.47 | -71.54 | 72.20 | 0.9511 | -305.0 | -269.4 | |
| 9.09 | 65.95 | 14.61 | 107.10 | 15.96 | 226.06 | -71.95 | 73.93 | 0.9527 | 509.6 | 68.0 | |
| 1.89 | -6.00 | 3.10 | -6.00 | 15.79 | 225.60 | -72.41 | 74.13 | 0.9549 | -165.3 | 999999 | |
| 10.81 | 119.54 | 20.24 | 231.67 | 17.60 | 223.41 | -74.60 | 72.35 | 0.9656 | -542.3 | 14.2 | |
| 0.51 | -6.00 | 0.87 | -6.00 | 15.74 | 225.02 | -72.99 | 74.21 | 0.9578 | -436.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
