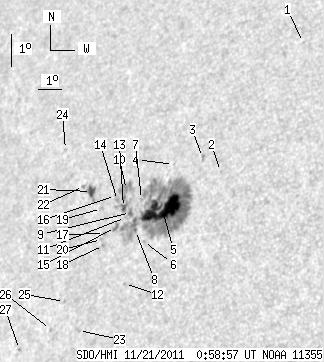

SDO HMI 2011-11-21 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.29 | 302.31 | 41.10 | 216.98 | 14.11 | 252.13 | -45.32 | 72.48 | 0.7254 | -403.7 | -267.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.58 | 19.38 | 257.11 | -40.35 | 63.52 | 0.6847 | -452.0 | -355.7 | |
| 0.00 | 0.34 | 0.00 | 0.24 | 15.35 | 254.78 | -42.68 | 70.04 | 0.6979 | 603.0 | 487.0 | |
| 0.00 | 2.32 | 0.00 | 1.62 | 15.76 | 253.91 | -43.55 | 69.74 | 0.7092 | -752.0 | -493.7 | |
| 0.00 | 0.43 | 0.00 | 0.31 | 15.51 | 252.73 | -44.73 | 70.43 | 0.7221 | -565.0 | -484.4 | |
| 45.80 | 235.42 | 32.57 | 167.62 | 14.14 | 252.61 | -44.84 | 72.33 | 0.7200 | -970.5 | -377.2 | |
| 0.00 | 1.03 | 0.00 | 0.74 | 13.15 | 252.03 | -45.43 | 73.82 | 0.7246 | -392.0 | -206.8 | |
| 0.00 | 1.20 | 0.00 | 0.87 | 14.42 | 251.63 | -45.83 | 72.20 | 0.7320 | 194.0 | 136.1 | |
| 0.94 | -5.00 | 0.68 | -5.00 | 13.48 | 251.60 | -45.86 | 73.48 | 0.7302 | -502.3 | 999999 | |
| 0.00 | 4.12 | 0.00 | 3.00 | 14.01 | 251.25 | -46.21 | 72.84 | 0.7354 | -568.0 | -452.8 | |
| 0.00 | 15.09 | 0.00 | 11.09 | 14.70 | 250.88 | -46.58 | 72.00 | 0.7410 | -41.0 | -64.2 | |
| 0.00 | 1.11 | 0.00 | 0.81 | 13.86 | 251.07 | -46.39 | 73.09 | 0.7371 | -31.0 | -51.4 | |
| 0.00 | 1.03 | 0.00 | 0.74 | 11.87 | 251.50 | -45.96 | 75.68 | 0.7284 | 538.0 | 436.1 | |
| 2.83 | 8.75 | 2.07 | 6.42 | 14.15 | 250.90 | -46.56 | 72.73 | 0.7397 | -509.2 | -206.7 | |
| 0.00 | 2.40 | 0.00 | 1.77 | 14.36 | 250.57 | -46.89 | 72.53 | 0.7437 | 220.0 | 146.0 | |
| 2.57 | 4.37 | 1.89 | 3.21 | 13.54 | 250.70 | -46.76 | 73.59 | 0.7406 | -283.4 | -9.4 | |
| 0.00 | 0.77 | 0.00 | 0.57 | 14.51 | 250.44 | -47.02 | 72.37 | 0.7455 | 269.0 | 189.8 | |
| 0.00 | 1.46 | 0.00 | 1.08 | 13.35 | 250.26 | -47.20 | 73.95 | 0.7452 | 790.0 | 672.6 | |
| 0.00 | 1.63 | 0.00 | 1.20 | 12.99 | 250.30 | -47.15 | 74.42 | 0.7440 | 611.0 | 527.4 | |
| 0.00 | 2.32 | 0.00 | 1.73 | 14.10 | 249.92 | -47.54 | 73.03 | 0.7504 | 407.0 | 384.1 | |
| 0.00 | 1.11 | 0.00 | 0.83 | 13.16 | 250.17 | -47.29 | 74.21 | 0.7459 | 509.0 | 498.2 | |
| 5.15 | 8.92 | 3.89 | 6.74 | 14.60 | 249.32 | -48.14 | 72.50 | 0.7580 | 760.0 | 581.6 | |
| 0.00 | 1.29 | 0.00 | 0.98 | 14.74 | 248.91 | -48.55 | 72.41 | 0.7627 | 539.0 | 405.7 | |
| 0.00 | 2.14 | 0.00 | 1.59 | 10.41 | 249.77 | -47.69 | 77.95 | 0.7461 | 646.0 | 519.8 | |
| 0.00 | 0.94 | 0.00 | 0.74 | 15.84 | 247.71 | -49.75 | 71.27 | 0.7776 | 604.0 | 495.5 | |
| 0.00 | 0.86 | 0.00 | 0.65 | 11.26 | 248.95 | -48.51 | 76.95 | 0.7565 | 714.0 | 598.9 | |
| 0.00 | 1.29 | 0.00 | 0.98 | 10.40 | 248.49 | -48.97 | 78.14 | 0.7604 | 571.0 | 474.6 | |
| 0.00 | 1.11 | 0.00 | 0.87 | 9.77 | 247.18 | -50.28 | 79.14 | 0.7742 | 697.0 | 576.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
