SDO HMI 2011-11-21 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.91 | 250.45 | 26.54 | 141.90 | -24.08 | 284.39 | -12.52 | 155.94 | 0.4867 | 618.7 | 294.6 | |
|
previous
or next observation for the same group /

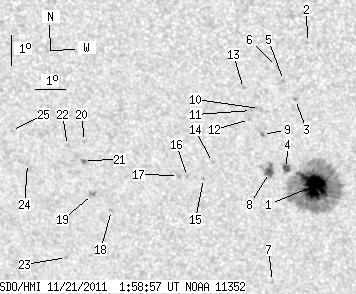

back to the solar disc SDO HMI 2011-11-21 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.57 | 200.36 | 21.24 | 113.34 | -24.26 | 285.11 | -11.80 | 157.24 | 0.4840 | 1296.1 | 366.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -19.61 | 285.27 | -11.64 | 152.85 | 0.4182 | 737.0 | 511.2 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -21.45 | 284.74 | -12.17 | 153.87 | 0.4475 | 858.0 | 728.4 | |
| 4.03 | 5.06 | 2.28 | 2.86 | -23.70 | 284.23 | -12.68 | 155.24 | 0.4818 | 914.0 | 740.3 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -20.84 | 284.40 | -12.51 | 152.58 | 0.4415 | 861.0 | 714.4 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -20.39 | 284.21 | -12.70 | 151.72 | 0.4367 | 877.0 | 693.2 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -27.50 | 283.33 | -13.57 | 157.16 | 0.5384 | 629.0 | 509.2 | |
| 4.97 | 10.55 | 2.82 | 5.97 | -23.84 | 283.65 | -13.25 | 154.40 | 0.4874 | 774.7 | 552.5 | |
| 0.00 | 2.14 | 0.00 | 1.20 | -22.60 | 283.55 | -13.36 | 152.97 | 0.4714 | 870.0 | 714.6 | |
| 0.00 | 3.35 | 0.00 | 1.86 | -21.75 | 283.53 | -13.38 | 152.03 | 0.4601 | 680.0 | 604.3 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -21.82 | 283.26 | -13.64 | 151.64 | 0.4630 | 837.0 | 683.7 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -22.11 | 283.17 | -13.74 | 151.80 | 0.4676 | 743.0 | 620.2 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -21.11 | 283.07 | -13.84 | 150.50 | 0.4550 | 713.0 | 654.6 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -23.53 | 281.79 | -15.12 | 151.06 | 0.4964 | -838.0 | -679.2 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -24.06 | 281.42 | -15.49 | 151.06 | 0.5059 | -756.0 | -652.7 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -24.00 | 280.89 | -16.02 | 150.18 | 0.5091 | -699.0 | -593.0 | |
| 0.00 | 2.83 | 0.00 | 1.63 | -23.97 | 280.59 | -16.32 | 149.70 | 0.5110 | -806.0 | -626.5 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -25.16 | 278.13 | -18.78 | 147.50 | 0.5446 | -682.0 | -573.1 | |
| 0.00 | 3.77 | 0.00 | 2.22 | -24.64 | 277.55 | -19.36 | 146.15 | 0.5430 | -1051.0 | -790.0 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -22.89 | 277.55 | -19.36 | 144.10 | 0.5228 | -828.0 | -607.7 | |
| 0.34 | 2.49 | 0.20 | 1.45 | -23.52 | 277.42 | -19.49 | 144.68 | 0.5312 | -927.8 | -721.6 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -23.03 | 276.95 | -19.96 | 143.46 | 0.5297 | -791.0 | -603.8 | |
| 0.00 | 1.29 | 0.00 | 0.78 | -26.77 | 276.27 | -20.64 | 146.85 | 0.5778 | -630.0 | -519.9 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -23.64 | 275.47 | -21.44 | 142.30 | 0.5497 | -654.0 | -445.1 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -22.57 | 275.10 | -21.81 | 140.49 | 0.5415 | -721.0 | -576.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
