SDO HMI 2011-11-21 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.37 | 46.41 | 4.04 | 25.06 | 17.50 | 314.32 | 17.41 | 314.01 | 0.3922 | -445.1 | -370.6 | |
|
previous
or next observation for the same group /

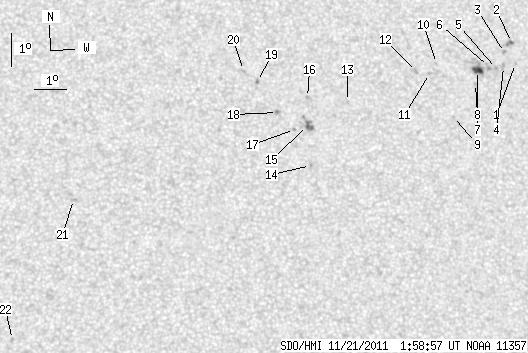

back to the solar disc SDO HMI 2011-11-21 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.51 | 0.00 | 0.29 | 18.49 | 318.64 | 21.73 | 308.90 | 0.4531 | -662.0 | -545.8 | |
| 1.03 | 3.43 | 0.57 | 1.91 | 19.14 | 318.60 | 21.69 | 310.12 | 0.4584 | -863.2 | -767.0 | |
| 0.00 | 1.89 | 0.00 | 1.05 | 18.83 | 318.32 | 21.41 | 309.92 | 0.4523 | -870.0 | -727.8 | |
| 0.00 | 2.06 | 0.00 | 1.14 | 18.40 | 318.23 | 21.32 | 309.24 | 0.4473 | -872.0 | -719.6 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 18.34 | 317.98 | 21.08 | 309.44 | 0.4438 | -866.0 | -729.9 | |
| 0.00 | 2.49 | 0.00 | 1.37 | 18.41 | 317.73 | 20.82 | 309.88 | 0.4413 | -686.0 | -626.1 | |
| 5.40 | 9.26 | 2.97 | 5.09 | 18.29 | 317.34 | 20.43 | 310.16 | 0.4356 | -1064.1 | -688.6 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 17.89 | 317.23 | 20.32 | 309.56 | 0.4305 | -827.0 | -639.1 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 16.89 | 316.39 | 19.48 | 308.73 | 0.4108 | -855.0 | -712.7 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 18.52 | 316.01 | 19.10 | 312.40 | 0.4220 | 710.0 | 528.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 18.22 | 315.74 | 18.84 | 312.21 | 0.4158 | 908.0 | 668.9 | |
| 0.00 | 1.97 | 0.00 | 1.07 | 18.28 | 315.32 | 18.42 | 312.94 | 0.4115 | 862.0 | 686.2 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 17.38 | 312.99 | 16.08 | 314.93 | 0.3749 | -802.0 | -583.4 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 15.44 | 311.64 | 14.73 | 313.24 | 0.3380 | -872.0 | -700.6 | |
| 0.94 | 6.35 | 0.50 | 3.36 | 16.66 | 311.64 | 14.73 | 315.89 | 0.3515 | -1009.9 | -837.3 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 17.52 | 311.71 | 14.80 | 317.49 | 0.3621 | -810.0 | -567.0 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 16.54 | 311.21 | 14.31 | 316.45 | 0.3453 | -826.0 | -679.1 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 17.07 | 310.71 | 13.80 | 318.52 | 0.3458 | 969.0 | 742.7 | |
| 0.00 | 1.46 | 0.00 | 0.77 | 18.02 | 310.15 | 13.24 | 321.52 | 0.3515 | -969.0 | -791.5 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 18.37 | 309.72 | 12.82 | 323.03 | 0.3516 | -824.0 | -582.9 | |
| 0.00 | 2.06 | 0.00 | 1.05 | 14.46 | 304.19 | 7.28 | 330.06 | 0.2469 | 781.0 | 640.7 | |
| 0.00 | 1.72 | 0.00 | 0.86 | 10.25 | 302.22 | 5.31 | 327.06 | 0.1683 | 978.0 | 643.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
