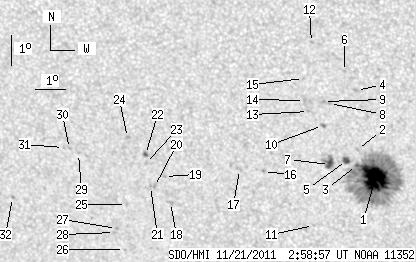

SDO HMI 2011-11-21 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.81 | 248.66 | 27.55 | 140.80 | -24.11 | 284.20 | -12.16 | 156.63 | 0.4851 | 519.4 | 284.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.49 | 197.71 | 22.84 | 111.62 | -24.26 | 285.13 | -11.23 | 158.22 | 0.4807 | 1296.9 | 366.5 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -23.34 | 284.61 | -11.75 | 156.51 | 0.4709 | 743.0 | 523.8 | |
| 1.20 | -1.00 | 0.68 | -1.00 | -23.87 | 284.53 | -11.83 | 156.85 | 0.4787 | 679.4 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -21.42 | 284.75 | -11.61 | 154.87 | 0.4432 | 883.0 | 710.2 | |
| 2.06 | 4.72 | 1.16 | 2.66 | -23.71 | 284.22 | -12.14 | 156.15 | 0.4784 | 1002.1 | 750.8 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -20.81 | 284.41 | -11.95 | 153.58 | 0.4370 | 899.0 | 669.8 | |
| 4.46 | 10.04 | 2.52 | 5.67 | -23.85 | 283.64 | -12.72 | 155.30 | 0.4839 | 799.8 | 594.1 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -21.85 | 283.83 | -12.53 | 153.63 | 0.4553 | 817.0 | 664.2 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -21.79 | 283.64 | -12.72 | 153.22 | 0.4558 | 860.0 | 716.6 | |
| 0.00 | 1.80 | 0.00 | 1.01 | -22.57 | 283.53 | -12.83 | 153.86 | 0.4672 | 890.0 | 718.3 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -25.88 | 282.88 | -13.48 | 155.93 | 0.5162 | 653.0 | 487.1 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -19.89 | 283.41 | -12.95 | 150.65 | 0.4317 | 860.0 | 655.6 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -22.12 | 283.12 | -13.24 | 152.65 | 0.4640 | 769.0 | 586.9 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -21.76 | 283.02 | -13.34 | 152.10 | 0.4599 | 682.0 | 643.2 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -21.05 | 283.05 | -13.31 | 151.36 | 0.4501 | 778.0 | 634.5 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -24.10 | 281.41 | -14.95 | 151.92 | 0.5024 | -896.0 | -673.7 | |
| 0.00 | 1.97 | 0.00 | 1.13 | -24.04 | 280.61 | -15.75 | 150.62 | 0.5075 | -720.0 | -572.0 | |
| 0.00 | 2.66 | 0.00 | 1.56 | -25.17 | 278.10 | -18.26 | 148.20 | 0.5405 | -834.0 | -607.9 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -24.30 | 278.02 | -18.34 | 147.15 | 0.5307 | -783.0 | -583.6 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -24.64 | 277.63 | -18.73 | 146.99 | 0.5379 | -1019.0 | -807.9 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -24.64 | 277.49 | -18.87 | 146.80 | 0.5390 | -951.0 | -800.6 | |
| 0.60 | 1.80 | 0.35 | 1.05 | -23.59 | 277.48 | -18.88 | 145.58 | 0.5267 | -955.6 | -834.6 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -23.88 | 277.44 | -18.92 | 145.86 | 0.5305 | -417.0 | -440.0 | |
| 0.00 | 1.89 | 0.00 | 1.10 | -23.03 | 276.95 | -19.41 | 144.19 | 0.5248 | -837.0 | -693.4 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -25.25 | 276.56 | -19.80 | 146.25 | 0.5537 | -696.0 | -564.8 | |
| 0.00 | 0.60 | 0.00 | 0.36 | -26.77 | 276.22 | -20.14 | 147.46 | 0.5738 | -612.0 | -493.6 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -26.07 | 276.07 | -20.30 | 146.52 | 0.5670 | -720.0 | -624.0 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -26.20 | 275.97 | -20.39 | 146.54 | 0.5693 | -689.0 | -572.7 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -23.58 | 275.17 | -21.19 | 142.54 | 0.5467 | -832.0 | -522.8 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -23.42 | 274.89 | -21.47 | 141.98 | 0.5475 | -711.0 | -548.0 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -23.39 | 274.69 | -21.67 | 141.69 | 0.5490 | -570.0 | -517.2 | |
| 0.00 | 1.37 | 0.00 | 0.84 | -25.08 | 272.57 | -23.79 | 141.24 | 0.5858 | -664.0 | -500.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
