SDO HMI 2011-11-21 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.37 | 251.05 | 22.18 | 141.90 | -24.17 | 284.23 | -11.58 | 157.67 | 0.4821 | 493.0 | 282.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

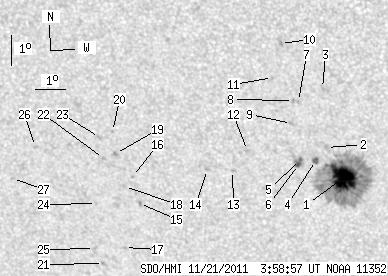

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.77 | 205.53 | 18.46 | 115.83 | -24.27 | 285.07 | -10.74 | 159.09 | 0.4779 | 1341.0 | 378.5 | |
| 0.00 | 2.74 | 0.00 | 1.54 | -23.28 | 284.60 | -11.21 | 157.39 | 0.4667 | 819.0 | 581.5 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -21.36 | 284.62 | -11.19 | 155.61 | 0.4394 | 774.0 | 667.9 | |
| 3.17 | 3.17 | 1.78 | 1.78 | -23.72 | 284.20 | -11.62 | 157.07 | 0.4751 | 971.8 | 0.0 | |
| 0.60 | 8.06 | 0.34 | 4.55 | -23.69 | 283.70 | -12.11 | 156.19 | 0.4777 | 1000.0 | 564.6 | |
| 2.83 | -5.00 | 1.60 | -5.00 | -23.85 | 283.62 | -12.19 | 156.20 | 0.4805 | 800.8 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -21.79 | 283.81 | -12.00 | 154.52 | 0.4508 | 843.0 | 663.1 | |
| 0.00 | 1.46 | 0.00 | 0.81 | -21.76 | 283.65 | -12.16 | 154.19 | 0.4515 | 837.0 | 683.0 | |
| 0.00 | 1.97 | 0.00 | 1.10 | -22.51 | 283.52 | -12.30 | 154.72 | 0.4627 | 912.0 | 609.7 | |
| 0.00 | 1.97 | 0.00 | 1.08 | -19.93 | 283.38 | -12.43 | 151.66 | 0.4282 | 739.0 | 598.0 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -21.02 | 283.03 | -12.78 | 152.26 | 0.4457 | 650.0 | 536.8 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -23.41 | 281.98 | -13.84 | 152.99 | 0.4853 | -809.0 | -630.2 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -24.07 | 281.40 | -14.41 | 152.74 | 0.4981 | -817.0 | -643.6 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -24.05 | 280.56 | -15.25 | 151.40 | 0.5037 | -763.0 | -681.6 | |
| 0.00 | 1.97 | 0.00 | 1.16 | -25.20 | 278.09 | -17.72 | 148.99 | 0.5366 | -860.0 | -714.5 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -24.31 | 277.99 | -17.83 | 147.86 | 0.5266 | -743.0 | -642.5 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -26.69 | 277.34 | -18.48 | 149.51 | 0.5602 | -576.0 | -441.8 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -24.64 | 277.66 | -18.15 | 147.78 | 0.5332 | -786.0 | -610.2 | |
| 0.00 | 2.06 | 0.00 | 1.19 | -23.55 | 277.52 | -18.30 | 146.34 | 0.5213 | -1012.0 | -839.5 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -22.83 | 277.52 | -18.30 | 145.49 | 0.5128 | -753.0 | -586.7 | |
| 0.00 | 1.80 | 0.00 | 1.09 | -27.25 | 276.50 | -19.31 | 148.99 | 0.5729 | -681.0 | -557.5 | |
| 0.00 | 1.37 | 0.00 | 0.80 | -23.73 | 277.08 | -18.73 | 145.94 | 0.5270 | -747.0 | -616.7 | |
| 0.00 | 1.97 | 0.00 | 1.14 | -23.04 | 277.05 | -18.77 | 145.07 | 0.5192 | -690.0 | -619.1 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -25.22 | 276.61 | -19.21 | 146.99 | 0.5484 | -705.0 | -572.0 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -26.74 | 276.28 | -19.54 | 148.18 | 0.5687 | -644.0 | -444.9 | |
| 0.00 | 1.80 | 0.00 | 1.06 | -23.36 | 274.80 | -21.01 | 142.48 | 0.5426 | -643.0 | -576.7 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -24.43 | 273.81 | -22.00 | 142.54 | 0.5630 | -686.0 | -504.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
