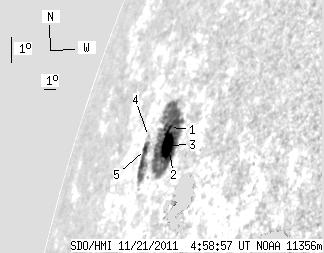

SDO HMI 2011-11-21 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.71 | 148.74 | 35.81 | 247.83 | 17.57 | 222.90 | -72.37 | 72.26 | 0.9552 | -223.7 | 26.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.46 | 123.35 | 2.39 | 202.13 | 18.11 | 222.98 | -72.29 | 71.68 | 0.9551 | -561.4 | -65.4 | |
| 12.70 | -1.00 | 20.42 | -1.00 | 17.57 | 223.42 | -71.84 | 72.23 | 0.9527 | -624.3 | 999999 | |
| 4.20 | -1.00 | 6.90 | -1.00 | 17.55 | 223.03 | -72.24 | 72.26 | 0.9547 | 331.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 2.83 | 17.76 | 221.05 | -74.22 | 72.15 | 0.9640 | 409.0 | 365.3 | |
| 3.35 | 23.85 | 6.10 | 42.87 | 17.36 | 221.15 | -74.11 | 72.56 | 0.9634 | 517.8 | 432.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
