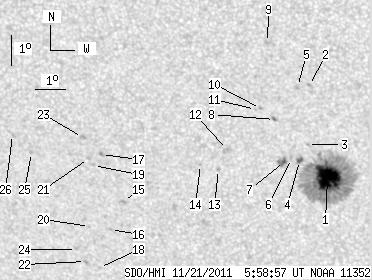

SDO HMI 2011-11-21 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.23 | 241.15 | 22.59 | 135.76 | -24.19 | 284.19 | -10.53 | 159.51 | 0.4763 | 522.8 | 293.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.86 | 196.36 | 20.13 | 110.29 | -24.31 | 285.03 | -9.69 | 160.99 | 0.4727 | 1320.7 | 380.5 | |
| 0.00 | 2.32 | 0.00 | 1.27 | -21.31 | 284.67 | -10.05 | 157.75 | 0.4313 | 1011.0 | 694.7 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -23.23 | 284.46 | -10.26 | 159.07 | 0.4601 | 932.0 | 701.4 | |
| 2.83 | 3.43 | 1.59 | 1.92 | -23.76 | 284.16 | -10.56 | 158.96 | 0.4694 | 942.7 | 839.1 | |
| 0.00 | 2.49 | 0.00 | 1.37 | -21.34 | 284.28 | -10.44 | 157.01 | 0.4342 | 582.0 | 548.6 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -23.69 | 283.90 | -10.82 | 158.44 | 0.4699 | 560.0 | 493.7 | |
| 1.54 | 5.92 | 0.87 | 3.32 | -23.79 | 283.66 | -11.06 | 158.10 | 0.4727 | 908.6 | 704.1 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -22.42 | 283.45 | -11.27 | 156.47 | 0.4546 | 793.0 | 635.3 | |
| 0.00 | 2.66 | 0.00 | 1.45 | -19.93 | 283.41 | -11.31 | 153.84 | 0.4199 | 794.0 | 653.7 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -22.06 | 283.02 | -11.70 | 155.34 | 0.4524 | 883.0 | 647.5 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -22.10 | 282.85 | -11.87 | 155.07 | 0.4539 | 637.0 | 532.4 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -23.41 | 281.81 | -12.91 | 154.54 | 0.4789 | -938.0 | -829.0 | |
| 0.00 | 1.72 | 0.00 | 0.97 | -24.07 | 281.44 | -13.28 | 154.57 | 0.4903 | -927.0 | -647.0 | |
| 0.00 | 0.51 | 0.00 | 0.29 | -23.92 | 280.86 | -13.86 | 153.45 | 0.4920 | -744.0 | -619.5 | |
| 0.00 | 2.75 | 0.00 | 1.60 | -25.17 | 278.10 | -16.62 | 150.50 | 0.5278 | -843.0 | -633.3 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -26.12 | 277.52 | -17.20 | 150.64 | 0.5438 | -796.0 | -480.9 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -23.62 | 277.57 | -17.15 | 148.05 | 0.5126 | -1011.0 | -833.1 | |
| 0.00 | 1.46 | 0.00 | 0.87 | -27.41 | 276.93 | -17.79 | 151.12 | 0.5638 | -252.0 | -309.2 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -23.99 | 277.25 | -17.47 | 147.99 | 0.5197 | -751.0 | -631.4 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -26.02 | 276.80 | -17.92 | 149.56 | 0.5479 | -515.0 | -396.0 | |
| 0.00 | 1.46 | 0.00 | 0.84 | -23.76 | 277.11 | -17.61 | 147.54 | 0.5180 | -827.0 | -623.6 | |
| 0.00 | 1.72 | 0.00 | 1.03 | -27.21 | 276.47 | -18.25 | 150.32 | 0.5646 | -734.0 | -537.8 | |
| 0.00 | 2.57 | 0.00 | 1.48 | -23.07 | 277.00 | -17.72 | 146.59 | 0.5105 | -656.0 | -643.8 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -26.81 | 276.22 | -18.50 | 149.59 | 0.5616 | -650.0 | -494.8 | |
| 0.00 | 1.46 | 0.00 | 0.85 | -23.59 | 275.19 | -19.53 | 144.67 | 0.5319 | -805.0 | -693.2 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -23.00 | 274.63 | -20.09 | 143.21 | 0.5302 | -782.0 | -595.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
