SDO HMI 2011-11-21 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.56 | 308.48 | 60.97 | 347.41 | 14.60 | 231.33 | -63.39 | 74.76 | 0.8969 | -337.8 | -115.1 | |
|
previous
or next observation for the same group /

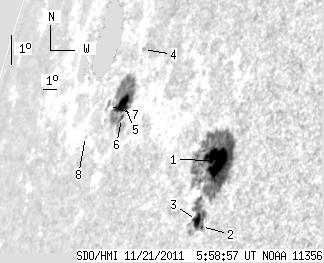

back to the solar disc SDO HMI 2011-11-21 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.77 | 195.15 | 33.91 | 202.79 | 14.35 | 233.74 | -60.98 | 74.81 | 0.8798 | -807.5 | -226.8 | |
| 0.86 | 35.69 | 0.88 | 37.24 | 12.34 | 233.66 | -61.06 | 77.10 | 0.8791 | 269.3 | -233.2 | |
| 7.72 | -2.00 | 8.05 | -2.00 | 12.51 | 233.27 | -61.45 | 76.94 | 0.8823 | -502.6 | 999999 | |
| 0.00 | 1.63 | 0.00 | 2.21 | 17.53 | 226.51 | -68.21 | 72.00 | 0.9326 | -364.0 | -236.3 | |
| 11.49 | 72.49 | 15.79 | 100.03 | 15.81 | 226.12 | -68.60 | 73.86 | 0.9342 | 546.7 | 146.0 | |
| 1.72 | -5.00 | 2.34 | -5.00 | 15.39 | 226.25 | -68.47 | 74.31 | 0.9332 | 317.6 | 999999 | |
| 0.00 | 3.26 | 0.00 | 4.74 | 15.74 | 224.85 | -69.87 | 74.03 | 0.9415 | 106.0 | 69.1 | |
| 0.00 | 0.26 | 0.00 | 0.40 | 14.74 | 223.48 | -71.24 | 75.16 | 0.9487 | 468.0 | 445.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
