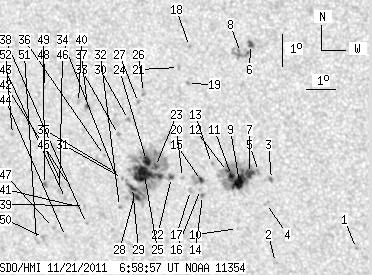

SDO HMI 2011-11-21 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.07 | 289.19 | 39.74 | 171.67 | -16.22 | 265.93 | -28.24 | 124.42 | 0.5526 | -63.3 | -45.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.59 | -18.63 | 272.04 | -22.13 | 134.60 | 0.5034 | 781.0 | 636.8 | |
| 0.00 | 1.80 | 0.00 | 1.06 | -19.12 | 269.20 | -24.97 | 132.01 | 0.5390 | 630.0 | 509.3 | |
| 0.00 | 1.46 | 0.00 | 0.84 | -16.50 | 269.45 | -24.72 | 128.27 | 0.5128 | 981.0 | 835.4 | |
| 0.00 | 1.80 | 0.00 | 1.04 | -17.26 | 269.18 | -25.00 | 129.17 | 0.5226 | 673.0 | 540.5 | |
| 0.00 | 2.32 | 0.00 | 1.34 | -16.26 | 269.04 | -25.13 | 127.44 | 0.5156 | 895.0 | 854.3 | |
| 2.57 | 3.35 | 1.45 | 1.89 | -12.33 | 269.24 | -24.93 | 120.91 | 0.4819 | 963.1 | 830.9 | |
| 5.83 | 63.65 | 3.38 | 37.03 | -16.32 | 268.73 | -25.45 | 127.22 | 0.5199 | 1054.6 | 455.7 | |
| 0.00 | 11.92 | 0.00 | 6.76 | -12.58 | 268.88 | -25.29 | 121.01 | 0.4885 | 671.0 | 684.9 | |
| 11.32 | -7.00 | 6.59 | -7.00 | -16.61 | 268.34 | -25.83 | 127.29 | 0.5269 | 1059.1 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -18.06 | 268.05 | -26.12 | 129.23 | 0.5425 | 620.0 | 533.4 | |
| 2.49 | -7.00 | 1.45 | -7.00 | -16.40 | 268.10 | -26.08 | 126.70 | 0.5280 | 970.0 | 999999 | |
| 1.29 | -7.00 | 0.75 | -7.00 | -16.27 | 267.98 | -26.19 | 126.38 | 0.5285 | 712.0 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -16.03 | 267.46 | -26.71 | 125.49 | 0.5327 | -793.0 | -652.6 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -17.04 | 267.00 | -27.18 | 126.63 | 0.5463 | 799.0 | 659.3 | |
| 2.06 | 8.32 | 1.21 | 4.90 | -16.57 | 267.04 | -27.14 | 125.94 | 0.5421 | 661.8 | -89.8 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -16.86 | 266.96 | -27.22 | 126.30 | 0.5453 | 627.0 | 521.8 | |
| 0.00 | 2.49 | 0.00 | 1.47 | -16.89 | 266.60 | -27.57 | 126.02 | 0.5498 | 450.0 | 223.9 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -12.43 | 267.17 | -27.00 | 119.18 | 0.5099 | 936.0 | 804.1 | |
| 0.00 | 1.37 | 0.00 | 0.79 | -13.57 | 266.97 | -27.20 | 120.97 | 0.5204 | 874.0 | 655.4 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -16.49 | 266.39 | -27.79 | 125.20 | 0.5492 | -947.0 | -708.5 | |
| 0.00 | 1.97 | 0.00 | 1.14 | -13.08 | 266.72 | -27.45 | 119.92 | 0.5202 | 820.0 | 534.6 | |
| 1.80 | 141.36 | 1.07 | 84.59 | -16.50 | 266.00 | -28.17 | 124.86 | 0.5539 | -969.2 | -383.8 | |
| 2.14 | -22.00 | 1.28 | -22.00 | -16.16 | 265.49 | -28.68 | 123.89 | 0.5575 | -1051.9 | 999999 | |
| 5.06 | -22.00 | 3.02 | -22.00 | -15.98 | 265.20 | -28.97 | 123.36 | 0.5597 | -967.3 | 999999 | |
| 24.36 | -22.00 | 14.59 | -22.00 | -16.42 | 265.06 | -29.11 | 123.92 | 0.5646 | -990.5 | 999999 | |
| 0.00 | 3.00 | 0.00 | 1.77 | -13.87 | 265.41 | -28.77 | 120.15 | 0.5424 | 752.0 | 621.2 | |
| 0.00 | 1.72 | 0.00 | 1.01 | -14.19 | 265.19 | -28.98 | 120.49 | 0.5473 | 739.0 | 582.4 | |
| 1.89 | -22.00 | 1.14 | -22.00 | -17.09 | 264.59 | -29.58 | 124.53 | 0.5750 | -308.8 | 999999 | |
| 3.26 | -22.00 | 1.97 | -22.00 | -16.84 | 264.56 | -29.61 | 124.13 | 0.5735 | -771.7 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.33 | -14.72 | 264.76 | -29.41 | 121.00 | 0.5563 | 871.0 | 628.8 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -16.56 | 264.25 | -29.92 | 123.45 | 0.5752 | -582.0 | -530.3 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -17.44 | 263.99 | -30.18 | 124.56 | 0.5847 | 387.0 | 442.8 | |
| 0.00 | 1.89 | 0.00 | 1.13 | -15.19 | 264.34 | -29.84 | 121.40 | 0.5647 | 667.0 | 482.7 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -16.60 | 264.07 | -30.10 | 123.35 | 0.5777 | 417.0 | 270.9 | |
| 0.00 | 0.43 | 0.00 | 0.26 | -16.38 | 264.04 | -30.14 | 123.00 | 0.5766 | -614.0 | -475.8 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -15.86 | 263.73 | -30.44 | 121.95 | 0.5767 | 522.0 | 323.8 | |
| 1.46 | 2.14 | 0.88 | 1.29 | -14.34 | 263.37 | -30.81 | 119.32 | 0.5713 | -894.4 | -861.2 | |
| 0.00 | 1.29 | 0.00 | 0.80 | -18.01 | 262.69 | -31.49 | 124.33 | 0.6038 | 438.0 | 240.5 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -17.44 | 262.72 | -31.45 | 123.53 | 0.5994 | -659.0 | -586.8 | |
| 0.00 | 1.80 | 0.00 | 1.09 | -14.23 | 263.06 | -31.11 | 118.91 | 0.5744 | -698.0 | -570.1 | |
| 0.00 | 1.29 | 0.00 | 0.80 | -17.48 | 262.46 | -31.71 | 123.38 | 0.6027 | -503.0 | -466.0 | |
| 0.00 | 1.12 | 0.00 | 0.69 | -16.82 | 262.29 | -31.88 | 122.30 | 0.6003 | -837.0 | -675.2 | |
| 0.00 | 1.80 | 0.00 | 1.12 | -17.23 | 262.07 | -32.11 | 122.73 | 0.6057 | -548.0 | -570.6 | |
| 0.00 | 1.12 | 0.00 | 0.70 | -18.43 | 261.82 | -32.35 | 124.27 | 0.6166 | -552.0 | -448.8 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -16.73 | 262.02 | -32.16 | 121.96 | 0.6030 | -721.0 | -613.4 | |
| 0.00 | 1.97 | 0.00 | 1.23 | -17.02 | 261.89 | -32.28 | 122.28 | 0.6064 | -738.0 | -613.7 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -18.16 | 261.44 | -32.74 | 123.59 | 0.6192 | -739.0 | -559.9 | |
| 1.54 | 2.92 | 0.96 | 1.82 | -16.81 | 261.38 | -32.80 | 121.60 | 0.6111 | -651.9 | -508.8 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -13.79 | 261.91 | -32.26 | 117.41 | 0.5862 | -744.0 | -618.3 | |
| 0.00 | 2.66 | 0.00 | 1.69 | -18.48 | 260.99 | -33.18 | 123.72 | 0.6264 | -827.0 | -646.8 | |
| 0.00 | 2.06 | 0.00 | 1.31 | -18.58 | 260.71 | -33.46 | 123.66 | 0.6302 | -546.0 | -437.8 | |
| 0.00 | 1.72 | 0.00 | 1.07 | -15.27 | 260.49 | -33.69 | 118.72 | 0.6124 | -62.0 | -120.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
