SDO HMI 2011-11-21 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.54 | 313.97 | 42.49 | 213.75 | 14.09 | 252.03 | -42.14 | 71.58 | 0.6881 | -346.0 | -270.3 | |
|
previous
or next observation for the same group /

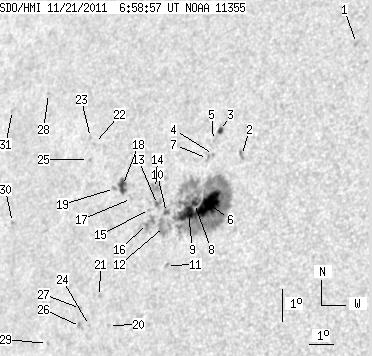

back to the solar disc SDO HMI 2011-11-21 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.97 | 0.00 | 1.27 | 19.22 | 257.65 | -36.52 | 61.86 | 0.6397 | -769.0 | -569.4 | |
| 0.00 | 2.83 | 0.00 | 1.88 | 15.68 | 253.96 | -40.21 | 68.67 | 0.6696 | -640.0 | -591.6 | |
| 2.66 | 3.86 | 1.80 | 2.62 | 16.43 | 252.92 | -41.25 | 67.99 | 0.6845 | 520.7 | 315.2 | |
| 0.00 | 1.29 | 0.00 | 0.87 | 15.69 | 252.82 | -41.35 | 69.07 | 0.6833 | -617.0 | -519.9 | |
| 0.00 | 0.86 | 0.00 | 0.58 | 16.11 | 252.71 | -41.46 | 68.51 | 0.6860 | -549.0 | -434.1 | |
| 31.74 | 223.80 | 21.29 | 150.64 | 14.17 | 252.98 | -41.20 | 71.21 | 0.6770 | -1123.2 | -420.5 | |
| 0.00 | 2.32 | 0.00 | 1.57 | 15.56 | 252.61 | -41.57 | 69.33 | 0.6855 | -677.0 | -481.9 | |
| 2.92 | -6.00 | 1.97 | -6.00 | 14.18 | 252.40 | -41.78 | 71.36 | 0.6840 | -785.7 | 999999 | |
| 13.30 | -6.00 | 9.02 | -6.00 | 13.88 | 252.22 | -41.95 | 71.86 | 0.6853 | -799.9 | 999999 | |
| 2.57 | 4.37 | 1.77 | 3.01 | 13.88 | 251.31 | -42.87 | 72.11 | 0.6964 | -517.9 | -409.7 | |
| 0.00 | 1.46 | 0.00 | 0.99 | 12.29 | 251.65 | -42.52 | 74.29 | 0.6884 | 618.0 | 429.5 | |
| 0.00 | 13.64 | 0.00 | 9.37 | 13.46 | 251.32 | -42.86 | 72.70 | 0.6951 | 105.0 | -72.3 | |
| 1.72 | 6.09 | 1.19 | 4.22 | 14.12 | 250.87 | -43.30 | 71.90 | 0.7021 | -524.6 | -449.0 | |
| 0.00 | 7.89 | 0.00 | 5.50 | 14.60 | 250.67 | -43.50 | 71.29 | 0.7057 | 128.0 | 22.5 | |
| 0.00 | 1.63 | 0.00 | 1.13 | 13.96 | 250.57 | -43.60 | 72.21 | 0.7052 | -8.0 | -58.3 | |
| 0.00 | 12.87 | 0.00 | 8.94 | 13.53 | 250.59 | -43.58 | 72.80 | 0.7040 | 198.0 | 47.8 | |
| 0.00 | 1.03 | 0.00 | 0.73 | 14.27 | 249.73 | -44.44 | 72.00 | 0.7159 | 757.0 | 628.3 | |
| 7.63 | 9.69 | 5.45 | 6.92 | 14.65 | 249.24 | -44.93 | 71.61 | 0.7224 | 729.3 | 633.3 | |
| 0.00 | 2.06 | 0.00 | 1.48 | 14.55 | 248.92 | -45.25 | 71.83 | 0.7259 | 605.0 | 476.2 | |
| 0.00 | 1.20 | 0.00 | 0.84 | 10.43 | 249.58 | -44.59 | 77.37 | 0.7100 | 572.0 | 396.1 | |
| 0.00 | 1.12 | 0.00 | 0.79 | 11.29 | 249.03 | -45.14 | 76.28 | 0.7180 | 651.0 | 564.6 | |
| 0.00 | 1.12 | 0.00 | 0.82 | 15.90 | 247.66 | -46.52 | 70.36 | 0.7433 | 665.0 | 576.4 | |
| 0.00 | 1.54 | 0.00 | 1.14 | 16.07 | 247.42 | -46.75 | 70.19 | 0.7463 | 575.0 | 455.0 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 10.41 | 248.77 | -45.40 | 77.54 | 0.7196 | 594.0 | 553.0 | |
| 0.00 | 0.51 | 0.00 | 0.38 | 15.40 | 247.53 | -46.64 | 71.05 | 0.7435 | 596.0 | 595.2 | |
| 0.00 | 3.43 | 0.00 | 2.46 | 10.37 | 248.39 | -45.78 | 77.66 | 0.7241 | 600.0 | 528.3 | |
| 0.00 | 1.12 | 0.00 | 0.80 | 10.91 | 248.29 | -45.89 | 76.94 | 0.7261 | 580.0 | 458.5 | |
| 0.00 | 0.94 | 0.00 | 0.74 | 17.36 | 245.04 | -49.13 | 69.15 | 0.7747 | 557.0 | 466.8 | |
| 0.00 | 1.46 | 0.00 | 1.07 | 9.82 | 247.04 | -47.13 | 78.61 | 0.7390 | 588.0 | 476.3 | |
| 0.00 | 1.29 | 0.00 | 1.00 | 13.41 | 244.61 | -49.56 | 74.30 | 0.7714 | 633.0 | 554.8 | |
| 0.00 | 1.72 | 0.00 | 1.38 | 16.80 | 243.51 | -50.67 | 70.23 | 0.7891 | 539.0 | 478.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
