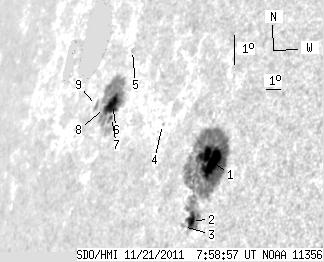

SDO HMI 2011-11-21 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.32 | 311.54 | 66.63 | 338.09 | 14.53 | 231.31 | -62.32 | 74.72 | 0.8888 | -326.5 | -118.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 07:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.85 | 230.90 | 35.89 | 232.27 | 14.34 | 233.72 | -59.91 | 74.69 | 0.8712 | -793.9 | -231.2 | |
| 8.83 | -1.00 | 8.89 | -1.00 | 12.51 | 233.37 | -60.25 | 76.82 | 0.8726 | -542.2 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.49 | 12.32 | 232.95 | -60.67 | 77.09 | 0.8759 | 257.0 | 240.7 | |
| 0.00 | 0.69 | 0.00 | 0.77 | 15.33 | 230.16 | -63.47 | 73.95 | 0.8997 | -492.0 | -420.1 | |
| 0.00 | 1.63 | 0.00 | 2.11 | 17.50 | 226.52 | -67.11 | 71.93 | 0.9259 | -381.0 | -267.6 | |
| 14.07 | 73.51 | 18.46 | 96.82 | 15.81 | 226.11 | -67.52 | 73.78 | 0.9275 | 545.3 | 147.0 | |
| 1.54 | -6.00 | 2.01 | -6.00 | 15.42 | 226.30 | -67.33 | 74.19 | 0.9262 | 331.2 | 999999 | |
| 1.03 | -6.00 | 1.38 | -6.00 | 15.67 | 225.55 | -68.08 | 73.97 | 0.9309 | -73.2 | 999999 | |
| 0.00 | 3.35 | 0.00 | 4.63 | 15.74 | 224.82 | -68.81 | 73.95 | 0.9354 | 238.0 | 162.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
