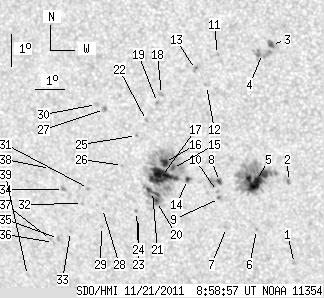

SDO HMI 2011-11-21 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.29 | 281.05 | 35.36 | 164.83 | -16.22 | 266.15 | -26.93 | 125.61 | 0.5367 | -98.9 | 3.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.85 | -19.11 | 269.24 | -23.84 | 133.25 | 0.5264 | 643.0 | 591.0 | |
| 0.00 | 2.49 | 0.00 | 1.42 | -16.52 | 269.41 | -23.68 | 129.45 | 0.5006 | 896.0 | 723.0 | |
| 1.20 | 4.46 | 0.67 | 2.49 | -12.29 | 269.32 | -23.76 | 122.00 | 0.4662 | 1022.6 | 693.3 | |
| 0.00 | 12.01 | 0.00 | 6.74 | -12.57 | 268.99 | -24.09 | 122.18 | 0.4726 | 551.0 | 678.9 | |
| 18.87 | 77.19 | 10.87 | 44.50 | -16.51 | 268.33 | -24.76 | 128.23 | 0.5132 | 1028.2 | 460.5 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -18.05 | 268.10 | -24.98 | 130.39 | 0.5293 | 682.0 | 561.3 | |
| 0.00 | 1.72 | 0.00 | 1.01 | -18.01 | 267.07 | -26.01 | 129.24 | 0.5406 | 374.0 | 307.5 | |
| 1.72 | 9.09 | 1.00 | 5.31 | -16.56 | 267.05 | -26.03 | 126.99 | 0.5288 | 690.6 | -41.6 | |
| 0.00 | 1.29 | 0.00 | 0.75 | -17.10 | 266.97 | -26.11 | 127.74 | 0.5341 | 749.0 | 635.1 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -16.88 | 266.94 | -26.15 | 127.37 | 0.5327 | 641.0 | 521.9 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -12.63 | 267.48 | -25.60 | 120.78 | 0.4928 | 900.0 | 762.0 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -13.59 | 267.00 | -26.08 | 122.01 | 0.5061 | 757.0 | 513.6 | |
| 0.00 | 2.23 | 0.00 | 1.28 | -13.10 | 266.68 | -26.40 | 120.88 | 0.5066 | 801.0 | 668.2 | |
| 2.06 | 137.83 | 1.21 | 81.64 | -16.52 | 265.95 | -27.13 | 125.84 | 0.5415 | -892.2 | -372.2 | |
| 1.54 | -14.00 | 0.91 | -14.00 | -16.18 | 265.48 | -27.60 | 124.87 | 0.5446 | -1111.7 | 999999 | |
| 4.46 | -14.00 | 2.63 | -14.00 | -16.00 | 265.23 | -27.86 | 124.36 | 0.5462 | -972.8 | 999999 | |
| 24.61 | -14.00 | 14.59 | -14.00 | -16.44 | 265.06 | -28.03 | 124.89 | 0.5516 | -1006.8 | 999999 | |
| 0.00 | 2.49 | 0.00 | 1.45 | -13.89 | 265.42 | -27.66 | 121.10 | 0.5284 | 748.0 | 621.4 | |
| 0.00 | 1.46 | 0.00 | 0.85 | -14.14 | 265.25 | -27.83 | 121.37 | 0.5324 | 754.0 | 638.2 | |
| 0.94 | -14.00 | 0.56 | -14.00 | -17.23 | 264.75 | -28.33 | 125.82 | 0.5612 | 283.6 | 999999 | |
| 4.89 | -14.00 | 2.92 | -14.00 | -16.92 | 264.66 | -28.42 | 125.27 | 0.5599 | -736.0 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -14.71 | 264.79 | -28.29 | 121.90 | 0.5421 | 768.0 | 544.1 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -17.78 | 264.02 | -29.07 | 125.99 | 0.5740 | 557.0 | 468.9 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -17.56 | 263.99 | -29.10 | 125.64 | 0.5727 | 534.0 | 397.5 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -15.18 | 264.37 | -28.71 | 122.30 | 0.5507 | 691.0 | 505.8 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -16.12 | 263.73 | -29.35 | 123.24 | 0.5652 | -503.0 | -434.9 | |
| 0.00 | 2.66 | 0.00 | 1.58 | -14.39 | 263.37 | -29.72 | 120.22 | 0.5579 | -1059.0 | -839.7 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -17.49 | 262.78 | -30.30 | 124.51 | 0.5863 | -726.0 | -544.3 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -18.06 | 262.64 | -30.45 | 125.23 | 0.5920 | 277.0 | 193.6 | |
| 0.00 | 2.49 | 0.00 | 1.48 | -14.24 | 263.11 | -29.98 | 119.77 | 0.5602 | -697.0 | -583.3 | |
| 0.00 | 1.29 | 0.00 | 0.79 | -16.87 | 262.39 | -30.69 | 123.27 | 0.5865 | -707.0 | -604.3 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -17.34 | 262.08 | -31.00 | 123.73 | 0.5934 | -719.0 | -583.0 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -18.24 | 261.47 | -31.61 | 124.55 | 0.6067 | -746.0 | -527.7 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -16.92 | 261.47 | -31.61 | 122.63 | 0.5977 | -747.0 | -598.9 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -18.47 | 260.98 | -32.10 | 124.50 | 0.6139 | -756.0 | -625.0 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -18.60 | 260.77 | -32.31 | 124.52 | 0.6172 | -523.0 | -402.7 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -18.51 | 260.68 | -32.41 | 124.32 | 0.6176 | -626.0 | -439.7 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -16.27 | 261.12 | -31.96 | 121.40 | 0.5976 | -622.0 | -527.5 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -19.67 | 259.55 | -33.53 | 125.10 | 0.6381 | -583.0 | -430.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
