SDO HMI 2011-11-21 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.71 | 242.52 | 22.17 | 135.59 | -24.17 | 284.26 | -8.28 | 163.53 | 0.4646 | 500.1 | 276.5 | |
|
previous
or next observation for the same group /

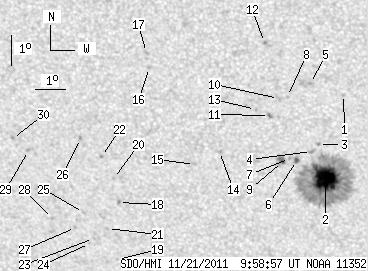

back to the solar disc SDO HMI 2011-11-21 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.75 | -21.60 | 285.72 | -6.82 | 164.64 | 0.4187 | 654.0 | 543.1 | |
| 36.79 | 196.64 | 20.54 | 109.86 | -24.35 | 284.99 | -7.55 | 164.96 | 0.4633 | 1298.9 | 337.3 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -23.23 | 284.82 | -7.71 | 163.92 | 0.4472 | 990.0 | 778.2 | |
| 0.00 | 2.66 | 0.00 | 1.47 | -23.46 | 284.58 | -7.96 | 163.61 | 0.4517 | 933.0 | 760.7 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -21.25 | 284.68 | -7.86 | 162.17 | 0.4182 | 868.0 | 667.0 | |
| 2.06 | 2.32 | 1.15 | 1.29 | -23.76 | 284.07 | -8.46 | 162.84 | 0.4585 | 953.6 | 867.7 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -23.70 | 283.85 | -8.69 | 162.36 | 0.4586 | 828.0 | 610.5 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -21.67 | 283.91 | -8.63 | 160.93 | 0.4283 | 656.0 | 543.0 | |
| 0.86 | 6.60 | 0.48 | 3.68 | -23.80 | 283.61 | -8.93 | 161.99 | 0.4612 | 947.8 | 664.9 | |
| 0.00 | 2.66 | 0.00 | 1.46 | -21.74 | 283.62 | -8.92 | 160.39 | 0.4309 | 882.0 | 707.4 | |
| 0.00 | 2.40 | 0.00 | 1.32 | -22.29 | 283.29 | -9.25 | 160.20 | 0.4407 | 875.0 | 668.5 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -19.94 | 283.28 | -9.26 | 158.04 | 0.4063 | 760.0 | 697.2 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -22.10 | 282.85 | -9.69 | 159.17 | 0.4404 | 667.0 | 596.0 | |
| 0.00 | 1.72 | 0.00 | 0.96 | -23.48 | 281.57 | -10.97 | 157.98 | 0.4675 | -891.0 | -781.2 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -23.92 | 280.70 | -11.83 | 156.84 | 0.4787 | -795.0 | -652.2 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -20.77 | 279.51 | -13.02 | 151.50 | 0.4435 | -748.0 | -593.5 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -20.29 | 279.46 | -13.08 | 150.84 | 0.4374 | -260.0 | -180.2 | |
| 0.00 | 1.46 | 0.00 | 0.84 | -25.20 | 278.02 | -14.51 | 153.66 | 0.5131 | -863.0 | -755.7 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -27.12 | 277.74 | -14.80 | 155.00 | 0.5400 | -674.0 | -526.2 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -24.41 | 277.95 | -14.59 | 152.76 | 0.5032 | -746.0 | -613.7 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -26.08 | 277.54 | -15.00 | 153.75 | 0.5278 | -694.0 | -632.7 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -23.68 | 277.63 | -14.90 | 151.52 | 0.4960 | -812.0 | -696.2 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -26.42 | 277.01 | -15.52 | 153.30 | 0.5356 | -610.0 | -503.5 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -26.59 | 276.85 | -15.69 | 153.23 | 0.5389 | -559.0 | -360.7 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -25.55 | 276.79 | -15.75 | 152.14 | 0.5260 | -643.0 | -511.1 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -23.10 | 277.00 | -15.54 | 149.89 | 0.4932 | -848.0 | -755.9 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -26.06 | 276.45 | -16.09 | 152.13 | 0.5348 | -668.0 | -507.2 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -25.76 | 275.70 | -16.84 | 150.77 | 0.5364 | -741.0 | -553.8 | |
| 0.00 | 1.46 | 0.00 | 0.84 | -23.51 | 275.20 | -17.34 | 147.63 | 0.5125 | -910.0 | -736.1 | |
| 0.00 | 1.46 | 0.00 | 0.84 | -23.12 | 274.71 | -17.83 | 146.47 | 0.5118 | -742.0 | -648.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
