SDO HMI 2011-11-21 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.15 | 341.15 | 46.57 | 226.15 | 14.06 | 252.13 | -40.41 | 71.06 | 0.6670 | -419.9 | -269.6 | |
|
previous
or next observation for the same group /

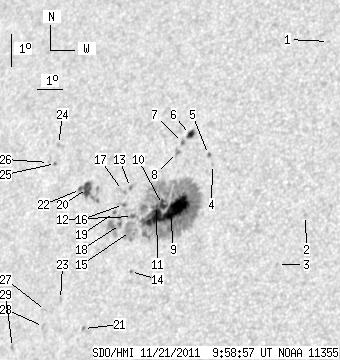

back to the solar disc SDO HMI 2011-11-21 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.43 | 19.36 | 257.72 | -34.82 | 60.68 | 0.6201 | -476.0 | -416.5 | |
| 0.00 | 1.11 | 0.00 | 0.68 | 14.02 | 257.97 | -34.57 | 68.89 | 0.5924 | -580.0 | -523.8 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 12.52 | 257.17 | -35.36 | 71.67 | 0.5975 | -510.0 | -477.6 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 15.49 | 254.13 | -38.41 | 68.24 | 0.6470 | -598.0 | -469.5 | |
| 0.94 | 1.37 | 0.61 | 0.89 | 15.79 | 253.90 | -38.64 | 67.88 | 0.6508 | -494.9 | -559.6 | |
| 4.03 | 5.40 | 2.66 | 3.57 | 16.39 | 253.05 | -39.49 | 67.36 | 0.6634 | 433.9 | 104.1 | |
| 1.29 | 1.80 | 0.85 | 1.19 | 16.14 | 252.79 | -39.75 | 67.83 | 0.6657 | -745.3 | -596.2 | |
| 0.00 | 3.52 | 0.00 | 2.33 | 15.83 | 252.66 | -39.88 | 68.32 | 0.6662 | -766.0 | -616.4 | |
| 45.28 | 241.15 | 29.74 | 158.38 | 14.03 | 252.78 | -39.76 | 70.91 | 0.6589 | -1009.2 | -424.5 | |
| 3.86 | -9.00 | 2.55 | -9.00 | 14.24 | 252.42 | -40.12 | 70.74 | 0.6640 | -748.3 | 999999 | |
| 0.26 | -9.00 | 0.17 | -9.00 | 14.20 | 252.18 | -40.35 | 70.87 | 0.6668 | -596.0 | 999999 | |
| 1.63 | 4.72 | 1.09 | 3.16 | 13.85 | 251.29 | -41.25 | 71.67 | 0.6767 | -551.0 | -434.1 | |
| 0.00 | 2.06 | 0.00 | 1.39 | 14.72 | 251.01 | -41.53 | 70.50 | 0.6826 | -603.0 | -462.7 | |
| 0.00 | 0.94 | 0.00 | 0.63 | 12.19 | 251.54 | -40.99 | 74.02 | 0.6693 | 722.0 | 663.0 | |
| 0.00 | 18.18 | 0.00 | 12.18 | 13.39 | 251.30 | -41.23 | 72.32 | 0.6753 | 105.0 | -20.4 | |
| 0.34 | 2.83 | 0.23 | 1.92 | 14.20 | 250.84 | -41.70 | 71.30 | 0.6832 | -620.0 | -284.7 | |
| 0.00 | 3.43 | 0.00 | 2.33 | 14.62 | 250.70 | -41.83 | 70.74 | 0.6860 | 15.0 | -92.4 | |
| 1.29 | 19.81 | 0.87 | 13.41 | 13.59 | 250.85 | -41.68 | 72.16 | 0.6814 | -524.0 | 83.6 | |
| 1.11 | -18.00 | 0.76 | -18.00 | 13.95 | 250.53 | -42.01 | 71.75 | 0.6863 | -270.5 | 999999 | |
| 8.83 | 20.41 | 6.14 | 14.15 | 14.65 | 249.24 | -43.30 | 71.14 | 0.7035 | 748.9 | 673.3 | |
| 0.00 | 1.63 | 0.00 | 1.11 | 10.44 | 249.95 | -42.59 | 76.96 | 0.6855 | 689.0 | 604.6 | |
| 1.29 | -20.00 | 0.90 | -20.00 | 14.61 | 248.95 | -43.59 | 71.28 | 0.7068 | 503.3 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.13 | 11.28 | 248.84 | -43.70 | 75.98 | 0.7007 | 599.0 | 436.5 | |
| 0.00 | 1.80 | 0.00 | 1.29 | 15.95 | 247.65 | -44.89 | 69.82 | 0.7253 | 688.0 | 578.3 | |
| 0.00 | 1.46 | 0.00 | 1.04 | 15.37 | 247.68 | -44.86 | 70.60 | 0.7235 | 470.0 | 485.5 | |
| 0.00 | 1.03 | 0.00 | 0.74 | 15.39 | 247.37 | -45.17 | 70.65 | 0.7271 | 508.0 | 414.2 | |
| 0.00 | 0.69 | 0.00 | 0.48 | 10.93 | 248.28 | -44.26 | 76.58 | 0.7069 | 587.0 | 492.2 | |
| 0.00 | 1.72 | 0.00 | 1.20 | 10.45 | 248.28 | -44.26 | 77.26 | 0.7060 | 531.0 | 582.9 | |
| 0.00 | 1.72 | 0.00 | 1.22 | 9.79 | 247.08 | -45.46 | 78.38 | 0.7194 | 460.0 | 439.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
