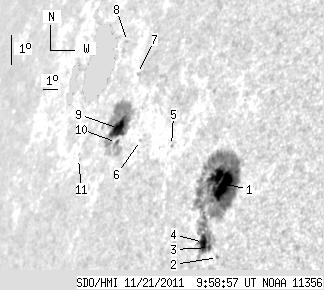

SDO HMI 2011-11-21 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.51 | 325.02 | 55.19 | 340.83 | 14.50 | 231.31 | -61.22 | 74.64 | 0.8802 | -353.5 | -113.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.33 | 238.41 | 31.33 | 232.20 | 14.34 | 233.78 | -58.75 | 74.55 | 0.8614 | -799.8 | -257.2 | |
| 0.00 | 0.94 | 0.00 | 0.89 | 12.11 | 234.41 | -58.13 | 77.07 | 0.8540 | 348.0 | 293.8 | |
| 0.94 | -1.00 | 0.91 | -1.00 | 12.40 | 233.84 | -58.70 | 76.80 | 0.8592 | 254.8 | 999999 | |
| 8.66 | -1.00 | 8.43 | -1.00 | 12.54 | 233.43 | -59.10 | 76.68 | 0.8629 | -595.2 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.84 | 15.39 | 230.14 | -62.40 | 73.77 | 0.8918 | -494.0 | -395.0 | |
| 0.00 | 1.11 | 0.00 | 1.31 | 15.47 | 227.94 | -64.60 | 73.90 | 0.9080 | 473.0 | 409.6 | |
| 0.00 | 0.86 | 0.00 | 1.07 | 17.49 | 226.40 | -66.14 | 71.85 | 0.9197 | -291.0 | -311.2 | |
| 0.00 | 0.86 | 0.00 | 1.14 | 18.43 | 224.87 | -67.67 | 70.97 | 0.9299 | -228.0 | -217.3 | |
| 10.38 | 71.26 | 13.02 | 89.86 | 15.78 | 226.09 | -66.45 | 73.73 | 0.9207 | 568.7 | 178.1 | |
| 1.20 | 10.12 | 1.50 | 12.56 | 15.35 | 226.21 | -66.33 | 74.18 | 0.9196 | 343.9 | 257.9 | |
| 0.00 | 0.69 | 0.00 | 0.96 | 14.77 | 223.49 | -69.05 | 75.00 | 0.9364 | 487.0 | 480.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
