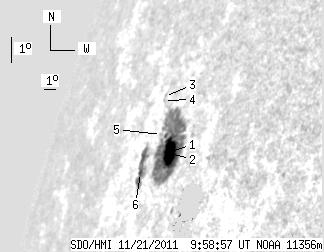

SDO HMI 2011-11-21 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.70 | 163.02 | 30.98 | 236.99 | 17.48 | 222.92 | -69.62 | 72.15 | 0.9407 | -296.2 | 1.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.95 | 136.61 | 22.58 | 195.75 | 17.57 | 223.35 | -69.19 | 72.02 | 0.9384 | -596.0 | -89.2 | |
| 4.72 | -1.00 | 6.79 | -1.00 | 17.53 | 223.03 | -69.51 | 72.09 | 0.9402 | 247.6 | 999999 | |
| 0.00 | 0.94 | 0.00 | 1.48 | 19.22 | 221.24 | -71.29 | 70.44 | 0.9505 | 305.0 | 269.2 | |
| 0.00 | 1.03 | 0.00 | 1.61 | 19.10 | 221.27 | -71.26 | 70.57 | 0.9503 | 223.0 | 188.8 | |
| 0.00 | 1.20 | 0.00 | 1.81 | 18.06 | 222.10 | -70.44 | 71.60 | 0.9456 | 414.0 | 381.5 | |
| 1.03 | 23.24 | 1.61 | 36.34 | 16.85 | 221.19 | -71.35 | 72.94 | 0.9500 | 478.8 | 394.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
