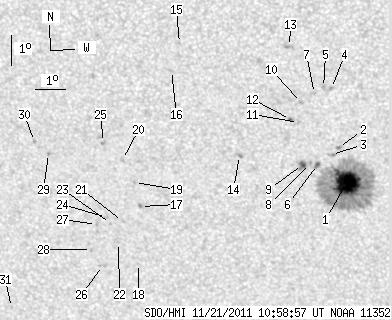

SDO HMI 2011-11-21 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.81 | 261.20 | 24.42 | 145.96 | -24.19 | 284.12 | -7.87 | 164.37 | 0.4631 | 517.0 | 249.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.67 | 209.57 | 21.56 | 116.95 | -24.35 | 284.96 | -7.03 | 165.95 | 0.4612 | 1267.0 | 307.7 | |
| 0.00 | 2.06 | 0.00 | 1.14 | -23.20 | 284.77 | -7.23 | 164.86 | 0.4446 | 937.0 | 777.5 | |
| 0.00 | 2.92 | 0.00 | 1.61 | -23.43 | 284.53 | -7.47 | 164.54 | 0.4491 | 969.0 | 749.6 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -21.28 | 284.64 | -7.35 | 163.28 | 0.4162 | 789.0 | 715.2 | |
| 0.00 | 2.49 | 0.00 | 1.35 | -21.25 | 284.39 | -7.61 | 162.71 | 0.4169 | 812.0 | 641.8 | |
| 0.86 | 2.83 | 0.48 | 1.57 | -23.76 | 284.05 | -7.94 | 163.83 | 0.4561 | 1040.4 | 770.3 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -21.45 | 284.09 | -7.90 | 162.23 | 0.4213 | 774.0 | 639.9 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -23.73 | 283.82 | -8.17 | 163.38 | 0.4566 | 819.0 | 669.3 | |
| 3.34 | 5.14 | 1.86 | 2.87 | -23.77 | 283.56 | -8.43 | 162.90 | 0.4583 | 824.5 | 632.2 | |
| 0.00 | 1.89 | 0.00 | 1.03 | -21.74 | 283.65 | -8.34 | 161.56 | 0.4278 | 963.0 | 761.1 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -22.39 | 283.52 | -8.48 | 161.80 | 0.4382 | 729.0 | 601.7 | |
| 0.94 | 1.46 | 0.52 | 0.80 | -22.29 | 283.26 | -8.73 | 161.22 | 0.4380 | 723.6 | 614.3 | |
| 0.00 | 3.86 | 0.00 | 2.09 | -19.94 | 283.37 | -8.62 | 159.41 | 0.4025 | 838.0 | 671.3 | |
| 0.00 | 2.14 | 0.00 | 1.20 | -23.48 | 281.51 | -10.48 | 158.87 | 0.4646 | -936.0 | -745.2 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -19.87 | 279.85 | -12.14 | 152.11 | 0.4246 | 725.0 | 489.4 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -20.74 | 279.52 | -12.47 | 152.48 | 0.4389 | -710.0 | -573.2 | |
| 0.00 | 1.80 | 0.00 | 1.03 | -25.20 | 278.05 | -13.94 | 154.55 | 0.5093 | -907.0 | -756.6 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -27.12 | 277.75 | -14.25 | 155.81 | 0.5365 | -459.0 | -383.7 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -24.40 | 277.94 | -14.05 | 153.61 | 0.4994 | -672.0 | -542.7 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -23.65 | 277.63 | -14.37 | 152.34 | 0.4916 | -599.0 | -619.6 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -25.71 | 277.38 | -14.61 | 153.99 | 0.5203 | -773.0 | -626.3 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -26.42 | 277.15 | -14.84 | 154.30 | 0.5310 | -699.0 | -553.6 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -25.78 | 276.96 | -15.03 | 153.42 | 0.5240 | -570.0 | -470.0 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -25.58 | 276.85 | -15.14 | 153.07 | 0.5222 | -701.0 | -577.6 | |
| 0.00 | 1.80 | 0.00 | 1.02 | -23.10 | 277.06 | -14.94 | 150.84 | 0.4885 | -831.0 | -715.7 | |
| 0.00 | 2.57 | 0.00 | 1.52 | -27.20 | 276.49 | -15.50 | 154.06 | 0.5454 | -597.0 | -505.0 | |
| 0.00 | 1.71 | 0.00 | 1.00 | -25.82 | 276.48 | -15.51 | 152.74 | 0.5278 | -788.0 | -528.5 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -26.66 | 276.19 | -15.80 | 153.13 | 0.5405 | -616.0 | -497.8 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -23.48 | 275.16 | -16.83 | 148.34 | 0.5079 | -748.0 | -716.5 | |
| 0.00 | 1.37 | 0.00 | 0.79 | -23.09 | 274.74 | -17.25 | 147.27 | 0.5065 | -827.0 | -641.5 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -28.68 | 273.05 | -18.94 | 150.84 | 0.5866 | -586.0 | -417.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
