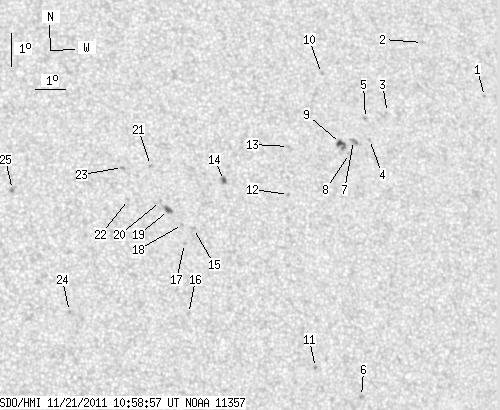

SDO HMI 2011-11-21 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.94 | 43.54 | 3.87 | 24.28 | 17.17 | 314.74 | 22.75 | 305.70 | 0.4557 | -361.0 | -373.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 10:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.57 | 19.95 | 323.21 | 31.22 | 302.57 | 0.5804 | 632.0 | 491.9 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 21.68 | 321.32 | 29.33 | 306.69 | 0.5698 | 707.0 | 583.1 | |
| 0.00 | 0.43 | 0.00 | 0.25 | 19.52 | 319.61 | 27.62 | 304.73 | 0.5339 | -537.0 | -452.6 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 18.69 | 318.83 | 26.84 | 304.05 | 0.5182 | -639.0 | -544.4 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 19.34 | 318.80 | 26.81 | 305.17 | 0.5227 | -841.0 | -615.7 | |
| 0.00 | 2.14 | 0.00 | 1.19 | 10.89 | 317.54 | 25.55 | 290.24 | 0.4532 | -799.0 | -623.6 | |
| 0.00 | 3.34 | 0.00 | 1.92 | 18.67 | 318.27 | 26.28 | 304.52 | 0.5111 | -900.0 | -765.7 | |
| 0.00 | 1.46 | 0.00 | 0.84 | 18.27 | 318.06 | 26.07 | 304.02 | 0.5056 | -785.0 | -636.1 | |
| 3.00 | 6.00 | 1.72 | 3.44 | 18.58 | 317.80 | 25.81 | 304.81 | 0.5047 | -958.0 | -928.1 | |
| 0.00 | 1.37 | 0.00 | 0.79 | 20.77 | 317.51 | 25.52 | 308.73 | 0.5185 | -508.0 | -362.2 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 11.79 | 316.09 | 24.10 | 293.17 | 0.4366 | -854.0 | -719.9 | |
| 0.00 | 1.29 | 0.00 | 0.72 | 17.04 | 315.79 | 23.79 | 304.03 | 0.4674 | -813.0 | -695.9 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 18.52 | 316.00 | 24.01 | 306.49 | 0.4818 | 861.0 | 723.8 | |
| 1.80 | 2.92 | 0.99 | 1.61 | 17.50 | 313.69 | 21.70 | 307.21 | 0.4446 | -808.7 | -807.8 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 16.05 | 312.49 | 20.50 | 305.82 | 0.4169 | -799.0 | -669.4 | |
| 0.00 | 1.80 | 0.00 | 0.97 | 13.47 | 312.08 | 20.09 | 300.78 | 0.3905 | -735.0 | -563.2 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 15.59 | 312.15 | 20.16 | 305.31 | 0.4086 | -826.0 | -697.0 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 16.17 | 312.15 | 20.15 | 306.51 | 0.4135 | -752.0 | -574.0 | |
| 2.14 | 4.54 | 1.16 | 2.47 | 16.60 | 311.73 | 19.74 | 307.93 | 0.4121 | -837.1 | -727.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 16.88 | 311.50 | 19.51 | 308.79 | 0.4118 | -568.0 | -528.5 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 17.99 | 311.29 | 19.30 | 311.23 | 0.4198 | 671.0 | 456.6 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 16.96 | 310.46 | 18.47 | 310.40 | 0.3996 | 763.0 | 545.7 | |
| 0.00 | 1.71 | 0.00 | 0.93 | 17.94 | 310.37 | 18.37 | 312.46 | 0.4083 | -975.0 | -816.2 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 13.57 | 308.27 | 16.28 | 306.28 | 0.3395 | 815.0 | 667.6 | |
| 0.00 | 2.49 | 0.00 | 1.32 | 17.30 | 306.74 | 14.75 | 317.26 | 0.3597 | 962.0 | 762.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
