SDO HMI 2011-11-21 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.30 | 257.04 | 20.77 | 143.39 | -24.15 | 284.13 | -7.31 | 165.36 | 0.4605 | 488.0 | 264.0 | |
|
previous
or next observation for the same group /

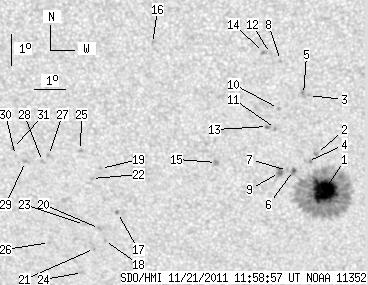

back to the solar disc SDO HMI 2011-11-21 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.01 | 206.37 | 20.06 | 115.06 | -24.38 | 284.97 | -6.47 | 167.03 | 0.4595 | 1268.2 | 320.9 | |
| 0.00 | 1.89 | 0.00 | 1.04 | -23.16 | 284.77 | -6.67 | 165.95 | 0.4418 | 818.0 | 715.7 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -21.28 | 284.61 | -6.84 | 164.38 | 0.4138 | 795.0 | 680.1 | |
| 0.00 | 2.40 | 0.00 | 1.33 | -23.43 | 284.47 | -6.98 | 165.50 | 0.4470 | 590.0 | 687.0 | |
| 0.00 | 3.34 | 0.00 | 1.82 | -21.25 | 284.45 | -7.00 | 164.01 | 0.4140 | 895.0 | 716.3 | |
| 1.29 | 3.09 | 0.71 | 1.71 | -23.72 | 283.99 | -7.45 | 164.76 | 0.4534 | 949.5 | 604.2 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -23.73 | 283.80 | -7.65 | 164.38 | 0.4542 | 875.0 | 644.2 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -20.16 | 283.77 | -7.68 | 161.68 | 0.4007 | 737.0 | 544.4 | |
| 0.00 | 5.40 | 0.00 | 3.00 | -23.79 | 283.53 | -7.91 | 163.91 | 0.4563 | 894.0 | 738.5 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -21.70 | 283.62 | -7.82 | 162.60 | 0.4247 | 972.0 | 772.8 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -22.35 | 283.49 | -7.96 | 162.81 | 0.4351 | 821.0 | 723.8 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -19.93 | 283.46 | -7.98 | 160.81 | 0.3989 | 883.0 | 585.5 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -22.29 | 283.23 | -8.21 | 162.25 | 0.4353 | 925.0 | 787.1 | |
| 0.00 | 2.23 | 0.00 | 1.20 | -19.90 | 283.24 | -8.20 | 160.29 | 0.3996 | 829.0 | 628.9 | |
| 0.00 | 2.66 | 0.00 | 1.48 | -23.48 | 281.49 | -9.95 | 159.83 | 0.4616 | -973.0 | -810.3 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -19.64 | 279.71 | -11.74 | 152.62 | 0.4184 | 708.0 | 582.0 | |
| 0.00 | 1.46 | 0.00 | 0.84 | -25.16 | 278.05 | -13.40 | 155.37 | 0.5052 | -904.0 | -769.2 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -26.10 | 277.50 | -13.95 | 155.36 | 0.5212 | -711.0 | -626.2 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -23.71 | 277.64 | -13.80 | 153.31 | 0.4884 | -911.0 | -709.5 | |
| 0.00 | 1.71 | 0.00 | 0.99 | -25.70 | 277.38 | -14.07 | 154.81 | 0.5167 | -837.0 | -664.0 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -26.38 | 277.12 | -14.32 | 155.04 | 0.5272 | -658.0 | -611.2 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -24.04 | 277.30 | -14.14 | 153.10 | 0.4952 | -637.0 | -505.5 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -25.57 | 276.89 | -14.56 | 153.94 | 0.5182 | -785.0 | -701.7 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -27.19 | 276.61 | -14.84 | 155.00 | 0.5411 | -766.0 | -551.2 | |
| 0.00 | 1.71 | 0.00 | 0.97 | -23.12 | 277.04 | -14.41 | 151.72 | 0.4849 | -849.0 | -727.6 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -26.19 | 275.61 | -15.83 | 152.63 | 0.5347 | -640.0 | -529.0 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -23.30 | 275.95 | -15.49 | 150.17 | 0.4953 | -730.0 | -536.8 | |
| 0.00 | 1.89 | 0.00 | 1.08 | -23.49 | 275.73 | -15.72 | 150.04 | 0.4995 | -754.0 | -610.8 | |
| 0.00 | 2.06 | 0.00 | 1.18 | -23.50 | 275.15 | -16.29 | 149.17 | 0.5040 | -864.0 | -625.0 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -23.31 | 274.84 | -16.60 | 148.48 | 0.5040 | -691.0 | -540.7 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -23.08 | 274.77 | -16.67 | 148.11 | 0.5017 | -857.0 | -696.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
