SDO HMI 2011-11-21 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.61 | 371.55 | 39.64 | 242.82 | 14.06 | 252.11 | -39.34 | 70.71 | 0.6537 | -315.1 | -259.5 | |
|
previous
or next observation for the same group /

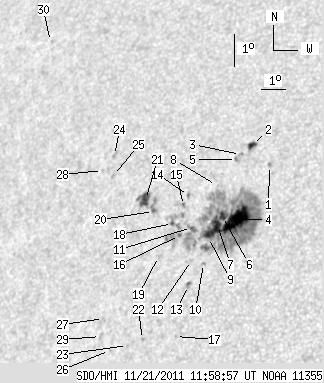

back to the solar disc SDO HMI 2011-11-21 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 1.10 | 15.78 | 253.95 | -37.49 | 67.42 | 0.6367 | -833.0 | -575.0 | |
| 4.12 | 6.52 | 2.67 | 4.23 | 16.38 | 253.15 | -38.29 | 66.87 | 0.6488 | 557.3 | 164.4 | |
| 0.00 | 2.14 | 0.00 | 1.40 | 16.09 | 252.74 | -38.70 | 67.46 | 0.6528 | -841.0 | -687.6 | |
| 30.26 | 258.75 | 19.51 | 167.42 | 14.12 | 253.01 | -38.43 | 70.31 | 0.6425 | -1076.9 | -418.2 | |
| 0.00 | 1.97 | 0.00 | 1.29 | 15.94 | 252.62 | -38.82 | 67.74 | 0.6537 | -700.0 | -606.3 | |
| 4.03 | -4.00 | 2.62 | -4.00 | 14.20 | 252.45 | -39.00 | 70.40 | 0.6499 | -739.7 | 999999 | |
| 6.77 | -4.00 | 4.41 | -4.00 | 13.92 | 252.31 | -39.14 | 70.86 | 0.6508 | -781.7 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.39 | 15.13 | 252.01 | -39.43 | 69.17 | 0.6584 | -304.0 | -210.4 | |
| 1.37 | -4.00 | 0.90 | -4.00 | 13.55 | 252.03 | -39.42 | 71.51 | 0.6532 | -649.1 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.67 | 12.76 | 251.98 | -39.46 | 72.71 | 0.6515 | -538.0 | -442.6 | |
| 1.20 | 25.03 | 0.79 | 16.50 | 13.84 | 251.29 | -40.15 | 71.33 | 0.6632 | -583.3 | -129.1 | |
| 0.00 | 1.54 | 0.00 | 1.01 | 12.84 | 251.49 | -39.95 | 72.74 | 0.6580 | -297.0 | -328.2 | |
| 0.00 | 3.17 | 0.00 | 2.08 | 12.09 | 251.51 | -39.93 | 73.86 | 0.6557 | 799.0 | 646.3 | |
| 0.00 | 2.23 | 0.00 | 1.48 | 14.80 | 250.96 | -40.48 | 70.03 | 0.6702 | -566.0 | -466.6 | |
| 0.00 | 2.14 | 0.00 | 1.43 | 14.49 | 250.83 | -40.62 | 70.52 | 0.6709 | -600.0 | -477.9 | |
| 1.20 | 26.41 | 0.80 | 17.60 | 13.58 | 250.86 | -40.58 | 71.84 | 0.6678 | -541.9 | 15.0 | |
| 0.00 | 0.94 | 0.00 | 0.62 | 10.55 | 251.26 | -40.19 | 76.25 | 0.6554 | 713.0 | 605.5 | |
| 1.20 | -16.00 | 0.80 | -16.00 | 13.94 | 250.51 | -40.94 | 71.43 | 0.6732 | -325.9 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.15 | 12.93 | 250.15 | -41.30 | 73.00 | 0.6749 | 803.0 | 551.6 | |
| 1.46 | 7.03 | 0.99 | 4.77 | 14.28 | 249.65 | -41.79 | 71.20 | 0.6846 | 772.2 | 783.3 | |
| 9.00 | 14.83 | 6.15 | 10.13 | 14.64 | 249.24 | -42.21 | 70.82 | 0.6905 | 764.3 | 527.4 | |
| 0.00 | 1.11 | 0.00 | 0.74 | 10.43 | 249.96 | -41.48 | 76.73 | 0.6717 | 755.0 | 609.3 | |
| 0.00 | 1.20 | 0.00 | 0.81 | 10.23 | 249.38 | -42.06 | 77.13 | 0.6786 | 331.0 | 287.7 | |
| 0.00 | 2.92 | 0.00 | 2.05 | 15.94 | 247.60 | -43.85 | 69.51 | 0.7134 | 600.0 | 494.8 | |
| 0.00 | 1.54 | 0.00 | 1.08 | 15.33 | 247.72 | -43.72 | 70.31 | 0.7103 | 567.0 | 463.9 | |
| 0.00 | 1.03 | 0.00 | 0.70 | 10.07 | 248.68 | -42.77 | 77.52 | 0.6871 | 587.0 | 476.4 | |
| 0.00 | 2.06 | 0.00 | 1.41 | 11.02 | 248.26 | -43.18 | 76.24 | 0.6939 | 557.0 | 447.5 | |
| 0.00 | 0.94 | 0.00 | 0.67 | 15.47 | 247.21 | -44.23 | 70.27 | 0.7166 | 409.0 | 346.7 | |
| 0.00 | 2.49 | 0.00 | 1.70 | 10.48 | 248.23 | -43.21 | 77.02 | 0.6933 | 557.0 | 483.6 | |
| 0.00 | 0.51 | 0.00 | 0.39 | 19.36 | 243.60 | -47.84 | 66.24 | 0.7665 | 394.0 | 443.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
