SDO HMI 2011-11-21 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.17 | 55.63 | 11.58 | 30.75 | 7.46 | 264.99 | -25.91 | 77.33 | 0.4457 | -911.0 | -617.6 | |
|
previous
or next observation for the same group /

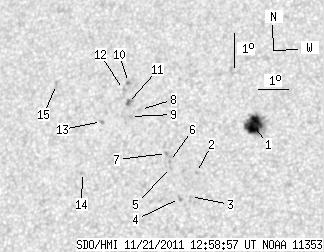

back to the solar disc SDO HMI 2011-11-21 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.46 | 33.35 | 10.61 | 18.18 | 7.56 | 266.65 | -24.24 | 76.44 | 0.4205 | -1106.3 | -629.4 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 6.14 | 264.86 | -26.04 | 80.39 | 0.4446 | -730.0 | -583.1 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 5.42 | 264.69 | -26.20 | 82.03 | 0.4458 | -882.0 | -697.2 | |
| 0.00 | 2.06 | 0.00 | 1.14 | 5.36 | 264.33 | -26.57 | 82.27 | 0.4513 | -724.0 | -599.2 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 6.27 | 263.98 | -26.91 | 80.35 | 0.4583 | -837.0 | -730.6 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 6.45 | 263.94 | -26.96 | 79.98 | 0.4594 | -884.0 | -699.2 | |
| 0.00 | 1.37 | 0.00 | 0.77 | 6.69 | 263.82 | -27.07 | 79.50 | 0.4616 | -808.0 | -713.6 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 7.98 | 262.86 | -28.04 | 77.11 | 0.4795 | -760.0 | -601.5 | |
| 0.00 | 1.46 | 0.00 | 0.82 | 7.77 | 262.54 | -28.36 | 77.67 | 0.4838 | -738.0 | -706.0 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 8.78 | 262.39 | -28.51 | 75.68 | 0.4888 | -735.0 | -716.1 | |
| 1.71 | 3.17 | 0.97 | 1.80 | 8.15 | 262.41 | -28.49 | 76.93 | 0.4868 | -881.6 | -851.5 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 8.56 | 262.24 | -28.66 | 76.16 | 0.4905 | -680.0 | -524.3 | |
| 0.00 | 1.63 | 0.00 | 0.93 | 7.60 | 261.56 | -29.34 | 78.33 | 0.4979 | -745.0 | -602.7 | |
| 0.00 | 1.46 | 0.00 | 0.83 | 6.07 | 261.01 | -29.89 | 81.51 | 0.5030 | -700.0 | -547.9 | |
| 0.00 | 2.91 | 0.00 | 1.69 | 8.67 | 259.91 | -30.99 | 76.80 | 0.5249 | -577.0 | -352.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
