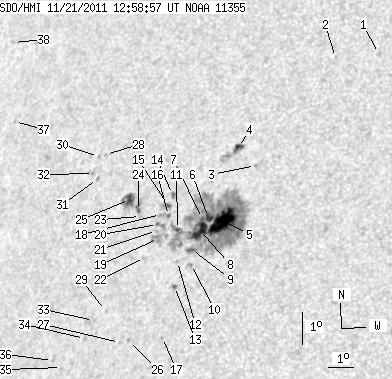

SDO HMI 2011-11-21 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.60 | 381.74 | 47.00 | 247.52 | 14.10 | 252.14 | -38.76 | 70.43 | 0.6466 | -322.8 | -236.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.06 | 0.00 | 1.27 | 19.35 | 257.83 | -33.06 | 59.61 | 0.5990 | -557.0 | -411.8 | |
| 0.00 | 0.60 | 0.00 | 0.38 | 19.19 | 256.24 | -34.66 | 60.82 | 0.6174 | -622.0 | -505.3 | |
| 0.00 | 0.86 | 0.00 | 0.55 | 15.82 | 253.94 | -36.96 | 67.12 | 0.6301 | -796.0 | -576.4 | |
| 3.69 | 14.14 | 2.38 | 9.13 | 16.35 | 253.16 | -37.73 | 66.66 | 0.6419 | 526.4 | -379.3 | |
| 33.78 | 291.04 | 21.61 | 187.12 | 14.10 | 253.06 | -37.84 | 70.12 | 0.6350 | -1098.6 | -366.9 | |
| 3.77 | -5.00 | 2.43 | -5.00 | 14.20 | 252.45 | -38.44 | 70.18 | 0.6430 | -743.2 | 999999 | |
| 0.94 | -5.00 | 0.61 | -5.00 | 14.17 | 252.22 | -38.67 | 70.32 | 0.6458 | -600.8 | 999999 | |
| 13.03 | -5.00 | 8.42 | -5.00 | 13.80 | 252.22 | -38.68 | 70.87 | 0.6447 | -763.0 | 999999 | |
| 2.74 | -5.00 | 1.78 | -5.00 | 13.22 | 251.98 | -38.92 | 71.84 | 0.6459 | -597.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 12.77 | 252.06 | -38.83 | 72.49 | 0.6436 | -594.0 | -411.1 | |
| 1.54 | -5.00 | 1.01 | -5.00 | 13.81 | 251.31 | -39.59 | 71.17 | 0.6561 | -573.5 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.50 | 12.85 | 251.50 | -39.40 | 72.56 | 0.6510 | -504.0 | -387.2 | |
| 1.03 | 2.57 | 0.67 | 1.67 | 12.10 | 251.52 | -39.38 | 73.69 | 0.6487 | 829.5 | 703.2 | |
| 1.54 | 2.40 | 1.02 | 1.59 | 14.87 | 250.88 | -40.01 | 69.76 | 0.6646 | -382.6 | -465.7 | |
| 1.71 | 5.49 | 1.13 | 3.63 | 14.53 | 250.80 | -40.10 | 70.29 | 0.6647 | -440.6 | -86.1 | |
| 0.86 | 1.97 | 0.57 | 1.30 | 14.23 | 250.86 | -40.03 | 70.71 | 0.6629 | -523.0 | -441.8 | |
| 0.00 | 1.11 | 0.00 | 0.72 | 10.56 | 251.30 | -39.59 | 76.09 | 0.6478 | 626.0 | 549.7 | |
| 0.00 | 2.57 | 0.00 | 1.70 | 14.25 | 250.54 | -40.36 | 70.78 | 0.6670 | 56.0 | 19.8 | |
| 0.00 | 11.06 | 0.00 | 7.30 | 13.53 | 250.61 | -40.28 | 71.83 | 0.6640 | 279.0 | 115.8 | |
| 1.37 | 5.74 | 0.91 | 3.80 | 13.95 | 250.48 | -40.41 | 71.25 | 0.6668 | -313.9 | -287.2 | |
| 0.00 | 0.94 | 0.00 | 0.62 | 13.76 | 250.48 | -40.41 | 71.52 | 0.6663 | 202.0 | 166.3 | |
| 0.00 | 1.71 | 0.00 | 1.14 | 12.94 | 250.17 | -40.73 | 72.83 | 0.6679 | 802.0 | 621.0 | |
| 0.00 | 1.63 | 0.00 | 1.09 | 14.17 | 249.75 | -41.15 | 71.16 | 0.6765 | 576.0 | 478.6 | |
| 1.37 | 5.49 | 0.92 | 3.69 | 14.35 | 249.63 | -41.27 | 70.94 | 0.6785 | 838.5 | 802.8 | |
| 5.23 | 13.72 | 3.54 | 9.30 | 14.68 | 249.18 | -41.71 | 70.61 | 0.6848 | 798.1 | 584.8 | |
| 0.00 | 1.03 | 0.00 | 0.68 | 10.44 | 249.98 | -40.92 | 76.59 | 0.6646 | 715.0 | 662.0 | |
| 0.00 | 0.86 | 0.00 | 0.57 | 10.37 | 249.63 | -41.27 | 76.77 | 0.6689 | 676.0 | 529.0 | |
| 0.00 | 1.37 | 0.00 | 0.95 | 16.02 | 247.84 | -43.05 | 69.16 | 0.7045 | 728.0 | 575.3 | |
| 0.00 | 0.94 | 0.00 | 0.63 | 11.31 | 248.90 | -42.00 | 75.55 | 0.6799 | 566.0 | 430.2 | |
| 0.00 | 1.29 | 0.00 | 0.90 | 15.95 | 247.56 | -43.33 | 69.34 | 0.7075 | 687.0 | 595.8 | |
| 0.00 | 1.54 | 0.00 | 1.07 | 15.28 | 247.70 | -43.20 | 70.22 | 0.7041 | 544.0 | 437.3 | |
| 0.00 | 0.86 | 0.00 | 0.60 | 15.43 | 247.49 | -43.41 | 70.08 | 0.7069 | 620.0 | 476.0 | |
| 0.00 | 0.77 | 0.00 | 0.52 | 11.00 | 248.46 | -42.43 | 76.10 | 0.6847 | 612.0 | 540.0 | |
| 0.00 | 1.89 | 0.00 | 1.28 | 10.45 | 248.19 | -42.71 | 76.95 | 0.6870 | 568.0 | 390.5 | |
| 0.00 | 0.86 | 0.00 | 0.59 | 9.56 | 247.39 | -43.51 | 78.38 | 0.6955 | 530.0 | 423.5 | |
| 0.00 | 0.86 | 0.00 | 0.59 | 9.76 | 246.98 | -43.92 | 78.16 | 0.7008 | 485.0 | 387.7 | |
| 0.00 | 1.03 | 0.00 | 0.77 | 16.92 | 243.57 | -47.33 | 69.22 | 0.7547 | 526.0 | 403.1 | |
| 0.00 | 1.63 | 0.00 | 1.26 | 19.35 | 242.64 | -48.26 | 66.38 | 0.7707 | 405.0 | 374.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
