SDO HMI 2011-11-21 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.72 | 264.43 | 22.63 | 147.34 | -24.26 | 283.96 | -6.39 | 167.22 | 0.4586 | 469.4 | 248.7 | |
|
previous
or next observation for the same group /

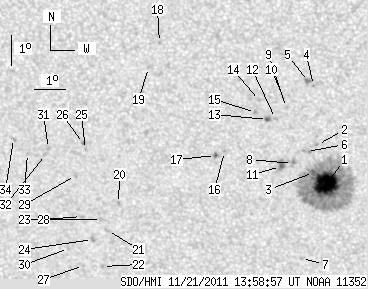

back to the solar disc SDO HMI 2011-11-21 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.57 | 206.06 | 19.78 | 114.65 | -24.42 | 284.96 | -5.39 | 169.15 | 0.4565 | 1311.1 | 323.5 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -23.13 | 284.72 | -5.63 | 168.05 | 0.4376 | 948.0 | 864.4 | |
| 1.89 | -1.00 | 1.05 | -1.00 | -24.05 | 284.55 | -5.80 | 168.18 | 0.4522 | 859.7 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -21.21 | 284.67 | -5.68 | 166.88 | 0.4082 | 746.0 | 612.6 | |
| 0.00 | 3.69 | 0.00 | 2.00 | -21.09 | 284.51 | -5.83 | 166.45 | 0.4067 | 1046.0 | 794.3 | |
| 0.00 | 3.26 | 0.00 | 1.80 | -23.36 | 284.35 | -6.00 | 167.43 | 0.4424 | 742.0 | 686.5 | |
| 0.00 | 1.46 | 0.00 | 0.83 | -26.93 | 284.01 | -6.34 | 168.53 | 0.4972 | 90.0 | 176.2 | |
| 0.00 | 3.09 | 0.00 | 1.71 | -23.76 | 283.88 | -6.47 | 166.70 | 0.4501 | 996.0 | 714.2 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -21.93 | 283.77 | -6.58 | 165.38 | 0.4226 | 752.0 | 607.5 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -21.61 | 283.69 | -6.66 | 164.99 | 0.4180 | 694.0 | 680.1 | |
| 1.29 | 7.37 | 0.71 | 4.09 | -23.86 | 283.48 | -6.87 | 165.97 | 0.4530 | 759.6 | 648.1 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -22.29 | 283.40 | -6.95 | 164.83 | 0.4296 | 815.0 | 643.7 | |
| 0.86 | 2.23 | 0.47 | 1.22 | -22.32 | 283.14 | -7.21 | 164.32 | 0.4312 | 883.9 | 672.7 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -21.71 | 282.92 | -7.43 | 163.42 | 0.4229 | 805.0 | 667.9 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -22.10 | 282.77 | -7.58 | 163.39 | 0.4294 | 837.0 | 665.7 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -23.38 | 281.68 | -8.66 | 162.17 | 0.4535 | -792.0 | -549.3 | |
| 1.11 | 1.80 | 0.62 | 1.00 | -23.51 | 281.38 | -8.97 | 161.69 | 0.4569 | -868.8 | -750.1 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -19.86 | 279.82 | -10.53 | 155.30 | 0.4130 | 757.0 | 610.2 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -20.66 | 279.41 | -10.94 | 155.33 | 0.4271 | -762.0 | -564.8 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -25.12 | 278.04 | -12.31 | 157.09 | 0.4980 | -835.0 | -675.2 | |
| 0.00 | 2.31 | 0.00 | 1.33 | -26.03 | 277.57 | -12.78 | 157.11 | 0.5131 | -718.0 | -619.9 | |
| 0.00 | 1.37 | 0.00 | 0.80 | -27.25 | 277.26 | -13.09 | 157.64 | 0.5314 | -687.0 | -554.4 | |
| 0.00 | 2.91 | 0.00 | 1.67 | -25.66 | 277.41 | -12.94 | 156.54 | 0.5091 | -780.0 | -569.9 | |
| 0.00 | 2.23 | 0.00 | 1.29 | -26.34 | 277.03 | -13.32 | 156.52 | 0.5205 | -783.0 | -697.9 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -23.34 | 277.12 | -13.23 | 153.90 | 0.4796 | -715.0 | -538.2 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -23.15 | 277.07 | -13.28 | 153.63 | 0.4773 | -921.0 | -746.9 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -27.22 | 276.61 | -13.74 | 156.64 | 0.5347 | -739.0 | -563.9 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -25.57 | 276.74 | -13.61 | 155.41 | 0.5119 | -767.0 | -665.7 | |
| 0.00 | 1.80 | 0.00 | 1.02 | -24.20 | 276.69 | -13.65 | 154.05 | 0.4940 | -616.0 | -514.8 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -26.65 | 276.17 | -14.18 | 155.49 | 0.5298 | -587.0 | -501.4 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -23.32 | 275.89 | -14.46 | 151.85 | 0.4879 | -705.0 | -613.5 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -23.52 | 275.77 | -14.58 | 151.86 | 0.4914 | -753.0 | -647.8 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -23.49 | 275.17 | -15.18 | 150.88 | 0.4954 | -857.0 | -755.5 | |
| 0.00 | 2.06 | 0.00 | 1.17 | -23.01 | 274.76 | -15.59 | 149.70 | 0.4922 | -643.0 | -554.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
