SDO HMI 2011-11-21 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.29 | 231.23 | 34.98 | 131.93 | -16.32 | 266.19 | -23.61 | 129.26 | 0.4980 | -76.6 | -74.2 | |
|
previous
or next observation for the same group /

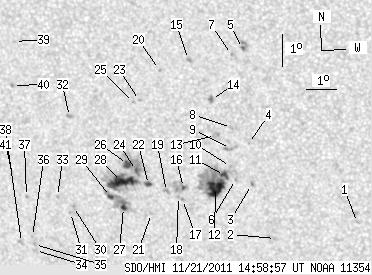

back to the solar disc SDO HMI 2011-11-21 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.80 | -17.67 | 272.62 | -17.18 | 140.12 | 0.4408 | 749.0 | 578.9 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -18.21 | 269.87 | -19.93 | 136.83 | 0.4753 | 745.0 | 499.4 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -16.52 | 269.27 | -20.53 | 133.34 | 0.4642 | 970.0 | 836.2 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -15.25 | 269.30 | -20.49 | 131.23 | 0.4510 | -670.0 | -473.7 | |
| 1.20 | 5.66 | 0.66 | 3.09 | -12.32 | 269.38 | -20.42 | 125.92 | 0.4227 | 781.3 | 767.4 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -16.37 | 268.76 | -21.04 | 132.41 | 0.4685 | 958.0 | 740.5 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -12.51 | 269.01 | -20.79 | 125.81 | 0.4292 | 820.0 | 637.8 | |
| 0.00 | 1.89 | 0.00 | 1.05 | -14.76 | 268.80 | -21.00 | 129.71 | 0.4524 | -633.0 | -534.7 | |
| 0.00 | 4.54 | 0.00 | 2.53 | -15.41 | 268.70 | -21.10 | 130.71 | 0.4598 | 796.0 | 701.5 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -15.97 | 268.64 | -21.16 | 131.58 | 0.4659 | 506.0 | 468.0 | |
| 4.20 | 61.45 | 2.36 | 34.60 | -16.25 | 268.40 | -21.39 | 131.75 | 0.4714 | 989.9 | 429.3 | |
| 19.11 | -11.00 | 10.77 | -11.00 | -16.63 | 268.06 | -21.74 | 131.94 | 0.4790 | 1029.2 | 999999 | |
| 0.00 | 4.37 | 0.00 | 2.44 | -15.01 | 268.24 | -21.55 | 129.44 | 0.4614 | -620.0 | -607.9 | |
| 0.00 | 3.09 | 0.00 | 1.71 | -13.90 | 268.23 | -21.57 | 127.45 | 0.4514 | 901.0 | 730.2 | |
| 0.00 | 2.14 | 0.00 | 1.19 | -12.68 | 267.59 | -22.21 | 124.42 | 0.4489 | 828.0 | 657.3 | |
| 0.94 | 11.31 | 0.54 | 6.43 | -16.65 | 266.99 | -22.81 | 130.64 | 0.4915 | 588.9 | -20.1 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -17.02 | 266.91 | -22.89 | 131.15 | 0.4960 | 787.0 | 689.8 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -16.93 | 266.79 | -23.01 | 130.86 | 0.4965 | 454.0 | 356.8 | |
| 0.00 | 2.83 | 0.00 | 1.61 | -16.78 | 266.40 | -23.40 | 130.17 | 0.4995 | -959.0 | -777.2 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -13.00 | 266.60 | -23.20 | 123.89 | 0.4643 | 660.0 | 579.2 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -17.48 | 265.80 | -24.00 | 130.58 | 0.5129 | 713.0 | 581.8 | |
| 2.66 | 3.17 | 1.52 | 1.82 | -16.57 | 265.82 | -23.98 | 129.17 | 0.5044 | -919.6 | -878.4 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -13.97 | 265.84 | -23.96 | 124.79 | 0.4819 | 791.0 | 594.9 | |
| 1.29 | 71.74 | 0.74 | 41.28 | -16.14 | 265.47 | -24.33 | 128.08 | 0.5048 | -1048.3 | -487.9 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -14.03 | 265.63 | -24.17 | 124.68 | 0.4851 | 765.0 | 592.0 | |
| 4.63 | -24.00 | 2.66 | -24.00 | -15.96 | 265.19 | -24.61 | 127.48 | 0.5065 | -951.4 | 999999 | |
| 1.46 | 25.97 | 0.84 | 15.06 | -17.31 | 264.87 | -24.93 | 129.28 | 0.5220 | 423.4 | -347.7 | |
| 23.06 | -24.00 | 13.30 | -24.00 | -16.49 | 264.91 | -24.88 | 128.05 | 0.5144 | -997.6 | 999999 | |
| 2.74 | -27.00 | 1.59 | -27.00 | -16.97 | 264.47 | -25.33 | 128.33 | 0.5237 | -760.1 | 999999 | |
| 0.00 | 2.49 | 0.00 | 1.46 | -17.31 | 263.14 | -26.65 | 127.50 | 0.5420 | -869.0 | -635.7 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -17.50 | 263.01 | -26.79 | 127.66 | 0.5452 | -818.0 | -703.5 | |
| 0.00 | 2.66 | 0.00 | 1.53 | -14.50 | 263.41 | -26.39 | 123.25 | 0.5167 | -921.0 | -731.4 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -17.00 | 262.63 | -27.16 | 126.54 | 0.5455 | -828.0 | -724.3 | |
| 0.00 | 2.74 | 0.00 | 1.65 | -18.72 | 261.57 | -28.23 | 128.12 | 0.5716 | -760.0 | -555.4 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -18.53 | 261.57 | -28.23 | 127.84 | 0.5701 | -825.0 | -707.1 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -18.28 | 261.54 | -28.26 | 127.44 | 0.5684 | -439.0 | -455.8 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -17.02 | 261.55 | -28.25 | 125.56 | 0.5585 | -711.0 | -564.2 | |
| 0.00 | 2.06 | 0.00 | 1.24 | -18.48 | 261.11 | -28.68 | 127.34 | 0.5748 | -707.0 | -481.3 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -12.23 | 261.80 | -28.00 | 117.95 | 0.5214 | -832.0 | -672.9 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -13.58 | 261.57 | -28.23 | 120.06 | 0.5334 | -768.0 | -659.6 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -16.31 | 261.17 | -28.63 | 124.13 | 0.5577 | -569.0 | -535.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
