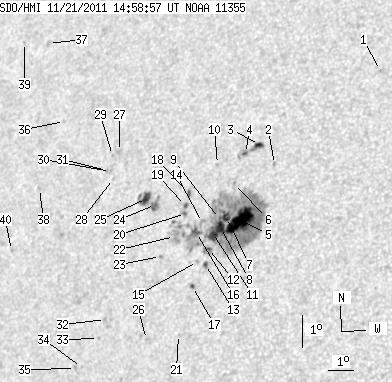

SDO HMI 2011-11-21 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.24 | 380.80 | 45.39 | 243.64 | 14.13 | 252.06 | -37.74 | 70.00 | 0.6336 | -282.9 | -262.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.58 | 18.77 | 257.35 | -32.45 | 60.10 | 0.5882 | -677.0 | -554.1 | |
| 0.00 | 1.54 | 0.00 | 0.97 | 15.81 | 254.00 | -35.80 | 66.60 | 0.6155 | -532.0 | -477.1 | |
| 3.43 | 6.43 | 2.17 | 4.08 | 16.41 | 253.30 | -36.50 | 66.01 | 0.6268 | 689.1 | 93.7 | |
| 1.29 | 6.00 | 0.82 | 3.83 | 16.12 | 252.82 | -36.98 | 66.67 | 0.6316 | -951.9 | -593.2 | |
| 33.60 | 288.75 | 21.18 | 183.01 | 14.08 | 253.04 | -36.76 | 69.71 | 0.6211 | -1126.6 | -409.1 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 15.20 | 252.59 | -37.21 | 68.17 | 0.6309 | -373.0 | -283.3 | |
| 4.71 | -5.00 | 2.99 | -5.00 | 14.16 | 252.49 | -37.31 | 69.81 | 0.6284 | -769.1 | 999999 | |
| 7.11 | -5.00 | 4.52 | -5.00 | 13.86 | 252.32 | -37.48 | 70.35 | 0.6296 | -821.1 | 999999 | |
| 0.86 | -5.00 | 0.55 | -5.00 | 14.13 | 252.23 | -37.57 | 69.97 | 0.6317 | -600.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.72 | 15.76 | 251.81 | -37.99 | 67.65 | 0.6428 | 578.0 | 534.0 | |
| 1.29 | -5.00 | 0.82 | -5.00 | 13.70 | 252.04 | -37.76 | 70.70 | 0.6327 | -680.3 | 999999 | |
| 0.60 | 6.26 | 0.38 | 3.99 | 13.21 | 251.98 | -37.82 | 71.47 | 0.6319 | -732.4 | -523.9 | |
| 2.06 | 2.74 | 1.31 | 1.75 | 12.73 | 251.95 | -37.85 | 72.23 | 0.6308 | -548.5 | -511.5 | |
| 0.00 | 4.37 | 0.00 | 2.81 | 13.99 | 251.60 | -38.20 | 70.41 | 0.6393 | 62.0 | 7.6 | |
| 0.00 | 1.20 | 0.00 | 0.77 | 12.81 | 251.62 | -38.17 | 72.21 | 0.6353 | -555.0 | -438.4 | |
| 4.03 | -5.00 | 2.59 | -5.00 | 13.69 | 251.42 | -38.38 | 70.94 | 0.6405 | -439.0 | 999999 | |
| 1.46 | 2.23 | 0.93 | 1.42 | 12.06 | 251.56 | -38.24 | 73.40 | 0.6339 | 838.4 | 727.0 | |
| 1.71 | 2.40 | 1.12 | 1.56 | 14.89 | 250.86 | -38.94 | 69.34 | 0.6515 | -439.0 | -440.0 | |
| 1.80 | 1.97 | 1.17 | 1.28 | 14.49 | 250.83 | -38.97 | 69.94 | 0.6506 | -564.3 | -595.0 | |
| 1.03 | 2.91 | 0.67 | 1.89 | 14.25 | 250.88 | -38.92 | 70.28 | 0.6492 | -566.2 | -515.7 | |
| 0.00 | 0.60 | 0.00 | 0.38 | 10.61 | 251.25 | -38.55 | 75.74 | 0.6343 | 660.0 | 565.0 | |
| 0.00 | 9.17 | 0.00 | 5.96 | 13.55 | 250.59 | -39.21 | 71.44 | 0.6506 | 239.0 | 193.3 | |
| 0.00 | 1.29 | 0.00 | 0.84 | 12.93 | 250.15 | -39.64 | 72.51 | 0.6543 | 810.0 | 711.5 | |
| 0.00 | 7.71 | 0.00 | 5.10 | 14.50 | 249.63 | -40.16 | 70.36 | 0.6654 | 970.0 | 771.0 | |
| 6.26 | 10.97 | 4.17 | 7.32 | 14.67 | 249.23 | -40.57 | 70.24 | 0.6708 | 816.0 | 505.3 | |
| 0.00 | 1.29 | 0.00 | 0.84 | 10.43 | 250.03 | -39.77 | 76.32 | 0.6498 | 795.0 | 661.4 | |
| 0.00 | 2.49 | 0.00 | 1.70 | 16.07 | 247.78 | -42.01 | 68.73 | 0.6925 | 762.0 | 666.9 | |
| 0.00 | 1.11 | 0.00 | 0.76 | 15.24 | 247.75 | -42.05 | 69.91 | 0.6905 | 618.0 | 442.9 | |
| 0.00 | 0.77 | 0.00 | 0.53 | 15.94 | 247.53 | -42.27 | 69.00 | 0.6951 | 681.0 | 611.3 | |
| 0.00 | 2.23 | 0.00 | 1.53 | 15.45 | 247.57 | -42.23 | 69.67 | 0.6932 | 688.0 | 387.6 | |
| 0.00 | 1.11 | 0.00 | 0.77 | 15.48 | 247.39 | -42.40 | 69.69 | 0.6953 | 593.0 | 543.9 | |
| 0.00 | 1.29 | 0.00 | 0.86 | 10.99 | 248.31 | -41.49 | 75.89 | 0.6729 | 669.0 | 543.6 | |
| 0.00 | 1.03 | 0.00 | 0.69 | 10.42 | 248.12 | -41.68 | 76.78 | 0.6741 | 668.0 | 582.5 | |
| 0.00 | 0.94 | 0.00 | 0.63 | 9.53 | 247.57 | -42.22 | 78.19 | 0.6795 | 597.0 | 476.6 | |
| 0.00 | 1.71 | 0.00 | 1.16 | 9.50 | 247.33 | -42.46 | 78.28 | 0.6824 | 611.0 | 503.9 | |
| 0.00 | 1.29 | 0.00 | 0.92 | 16.93 | 245.20 | -44.60 | 68.41 | 0.7248 | 438.0 | 367.4 | |
| 0.00 | 2.57 | 0.00 | 1.91 | 19.30 | 243.70 | -46.10 | 65.76 | 0.7482 | 469.0 | 354.8 | |
| 0.00 | 1.46 | 0.00 | 1.04 | 14.86 | 244.70 | -45.10 | 71.34 | 0.7250 | 320.0 | 350.8 | |
| 0.00 | 0.86 | 0.00 | 0.65 | 19.31 | 242.59 | -47.20 | 66.11 | 0.7598 | 464.0 | 408.6 | |
| 0.00 | 1.03 | 0.00 | 0.74 | 12.96 | 243.96 | -45.84 | 74.10 | 0.7293 | 510.0 | 410.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
