SDO HMI 2011-11-21 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.62 | 359.02 | 62.87 | 347.45 | 14.60 | 231.24 | -58.56 | 74.21 | 0.8584 | -253.9 | -118.6 | |
|
previous
or next observation for the same group /

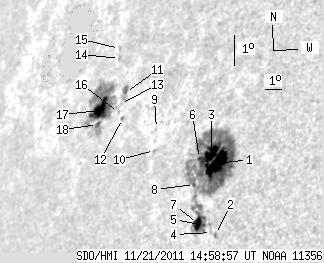

back to the solar disc SDO HMI 2011-11-21 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.91 | 252.49 | 21.44 | 228.06 | 14.32 | 233.93 | -55.87 | 74.18 | 0.8358 | -1003.0 | -278.6 | |
| 0.00 | 1.37 | 0.00 | 1.20 | 12.19 | 234.61 | -55.19 | 76.65 | 0.8270 | 290.0 | 249.3 | |
| 10.88 | -1.00 | 9.87 | -1.00 | 14.62 | 233.54 | -56.26 | 73.89 | 0.8397 | -614.7 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.28 | 12.24 | 234.38 | -55.42 | 76.61 | 0.8293 | -320.0 | -260.9 | |
| 0.43 | -1.00 | 0.38 | -1.00 | 12.44 | 233.94 | -55.86 | 76.43 | 0.8336 | 227.6 | 999999 | |
| 0.86 | -1.00 | 0.79 | -1.00 | 14.45 | 232.93 | -56.86 | 74.18 | 0.8450 | -132.8 | 999999 | |
| 7.37 | -1.00 | 6.64 | -1.00 | 12.49 | 233.54 | -56.26 | 76.42 | 0.8374 | -573.3 | 999999 | |
| 1.29 | -1.00 | 1.18 | -1.00 | 13.66 | 232.96 | -56.84 | 75.10 | 0.8439 | -245.9 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.11 | 15.28 | 230.05 | -59.75 | 73.59 | 0.8707 | -275.0 | -294.5 | |
| 0.00 | 1.03 | 0.00 | 1.02 | 14.61 | 230.23 | -59.57 | 74.33 | 0.8686 | -493.0 | -409.4 | |
| 0.00 | 7.20 | 0.00 | 7.82 | 16.30 | 227.53 | -62.27 | 72.73 | 0.8915 | 24.0 | 108.6 | |
| 0.00 | 1.63 | 0.00 | 1.75 | 15.51 | 227.76 | -62.03 | 73.59 | 0.8891 | 405.0 | 378.8 | |
| 0.00 | 0.94 | 0.00 | 1.03 | 15.96 | 227.39 | -62.41 | 73.13 | 0.8923 | 500.0 | 330.7 | |
| 0.00 | 1.63 | 0.00 | 1.83 | 17.32 | 226.52 | -63.28 | 71.72 | 0.8999 | -361.0 | -295.2 | |
| 0.00 | 1.54 | 0.00 | 1.75 | 17.63 | 226.33 | -63.47 | 71.40 | 0.9015 | -360.0 | -285.4 | |
| 0.00 | 0.94 | 0.00 | 1.02 | 15.69 | 227.40 | -62.39 | 73.44 | 0.8920 | 376.0 | 357.5 | |
| 17.48 | 87.68 | 19.86 | 99.58 | 15.71 | 226.09 | -63.71 | 73.55 | 0.9017 | 586.2 | 235.9 | |
| 2.40 | -17.00 | 2.71 | -17.00 | 15.28 | 226.19 | -63.61 | 74.01 | 0.9007 | 470.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
