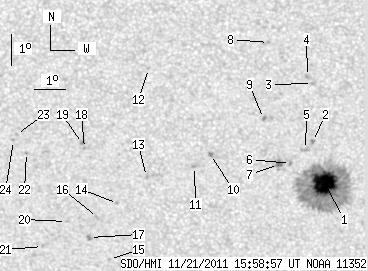

SDO HMI 2011-11-21 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.74 | 239.70 | 18.18 | 133.33 | -24.29 | 284.19 | -5.06 | 169.82 | 0.4546 | 510.3 | 275.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.74 | 199.59 | 18.18 | 110.96 | -24.41 | 284.93 | -4.32 | 171.27 | 0.4535 | 1353.5 | 343.4 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -23.06 | 284.59 | -4.66 | 170.03 | 0.4336 | 1023.0 | 838.9 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -21.18 | 284.65 | -4.60 | 169.29 | 0.4039 | 835.0 | 602.5 | |
| 0.00 | 2.06 | 0.00 | 1.11 | -20.95 | 284.50 | -4.75 | 168.83 | 0.4009 | 999.0 | 690.0 | |
| 0.00 | 3.34 | 0.00 | 1.84 | -23.32 | 284.35 | -4.89 | 169.66 | 0.4383 | 824.0 | 726.5 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -23.79 | 283.85 | -5.40 | 168.84 | 0.4469 | 1075.0 | 840.3 | |
| 0.00 | 5.91 | 0.00 | 3.27 | -23.82 | 283.46 | -5.79 | 168.08 | 0.4486 | 931.0 | 735.9 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -19.87 | 283.30 | -5.95 | 165.40 | 0.3882 | 942.0 | 701.6 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -22.32 | 283.04 | -6.21 | 166.39 | 0.4271 | 934.0 | 769.8 | |
| 0.00 | 1.89 | 0.00 | 1.05 | -23.50 | 281.26 | -7.99 | 163.56 | 0.4522 | -962.0 | -873.5 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -23.90 | 280.71 | -8.54 | 162.79 | 0.4606 | -828.0 | -698.3 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -20.72 | 279.43 | -9.82 | 157.63 | 0.4208 | -718.0 | -582.5 | |
| 0.00 | 1.80 | 0.00 | 1.01 | -24.24 | 279.11 | -10.14 | 160.10 | 0.4735 | -755.0 | -605.0 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -25.14 | 278.07 | -11.18 | 159.00 | 0.4918 | -797.0 | -662.1 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -27.03 | 277.61 | -11.64 | 159.72 | 0.5205 | -698.0 | -473.5 | |
| 0.00 | 1.71 | 0.00 | 0.98 | -25.62 | 277.35 | -11.89 | 158.20 | 0.5024 | -939.0 | -735.2 | |
| 0.00 | 2.74 | 0.00 | 1.58 | -26.29 | 277.01 | -12.23 | 158.20 | 0.5136 | -851.0 | -735.1 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -23.33 | 277.14 | -12.10 | 155.82 | 0.4721 | -814.0 | -624.1 | |
| 0.00 | 1.46 | 0.00 | 0.82 | -23.17 | 277.09 | -12.16 | 155.58 | 0.4701 | -998.0 | -767.2 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -25.76 | 276.29 | -12.95 | 156.61 | 0.5105 | -657.0 | -570.1 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -26.61 | 275.38 | -13.87 | 155.92 | 0.5274 | -624.0 | -508.5 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -23.48 | 275.21 | -14.04 | 152.69 | 0.4870 | -653.0 | -583.6 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -22.90 | 274.94 | -14.31 | 151.63 | 0.4812 | -101.0 | -114.9 | |
| 0.00 | 1.37 | 0.00 | 0.78 | -23.09 | 274.82 | -14.43 | 151.64 | 0.4846 | -759.0 | -575.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
