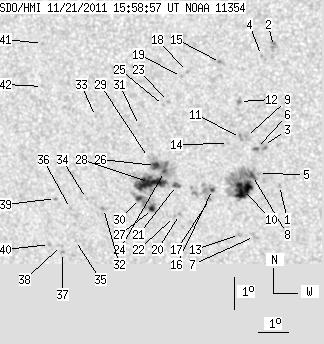

SDO HMI 2011-11-21 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.42 | 230.68 | 34.36 | 131.02 | -16.35 | 266.25 | -23.00 | 129.99 | 0.4910 | -41.8 | -63.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.81 | -16.52 | 269.25 | -20.00 | 134.05 | 0.4582 | 958.0 | 735.4 | |
| 0.00 | 5.06 | 0.00 | 2.75 | -12.22 | 269.45 | -19.80 | 126.55 | 0.4138 | 958.0 | 797.0 | |
| 0.00 | 3.34 | 0.00 | 1.85 | -15.28 | 268.85 | -20.39 | 131.42 | 0.4502 | 251.0 | 381.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -12.50 | 269.04 | -20.20 | 126.56 | 0.4216 | 823.0 | 643.1 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -16.15 | 268.60 | -20.65 | 132.56 | 0.4618 | 894.0 | 816.9 | |
| 1.71 | 2.31 | 0.95 | 1.29 | -15.37 | 268.61 | -20.63 | 131.26 | 0.4539 | 717.5 | 631.3 | |
| 0.00 | 3.51 | 0.00 | 1.99 | -18.13 | 268.23 | -21.02 | 135.23 | 0.4860 | 503.0 | 522.3 | |
| 3.00 | 63.76 | 1.68 | 35.78 | -16.21 | 268.39 | -20.86 | 132.39 | 0.4648 | 1012.3 | 441.5 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -15.00 | 268.32 | -20.92 | 130.24 | 0.4538 | -710.0 | -607.6 | |
| 18.25 | -8.00 | 10.25 | -8.00 | -16.66 | 268.04 | -21.21 | 132.66 | 0.4732 | 1027.2 | 999999 | |
| 0.00 | 2.66 | 0.00 | 1.48 | -15.04 | 268.12 | -21.13 | 130.04 | 0.4565 | -776.0 | -644.6 | |
| 0.00 | 2.91 | 0.00 | 1.61 | -13.92 | 268.20 | -21.05 | 128.15 | 0.4451 | 890.0 | 724.9 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -18.07 | 267.73 | -21.51 | 134.50 | 0.4908 | 790.0 | 601.3 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -15.23 | 267.71 | -21.54 | 129.84 | 0.4633 | -627.0 | -453.1 | |
| 0.00 | 2.06 | 0.00 | 1.13 | -12.73 | 267.69 | -21.56 | 125.29 | 0.4409 | 805.0 | 630.0 | |
| 1.46 | 15.00 | 0.82 | 8.50 | -16.67 | 267.01 | -22.24 | 131.37 | 0.4851 | 637.9 | -274.7 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -16.99 | 266.87 | -22.38 | 131.71 | 0.4897 | 758.0 | 617.1 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -13.03 | 266.58 | -22.67 | 124.53 | 0.4577 | 726.0 | 536.6 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -13.18 | 266.37 | -22.88 | 124.58 | 0.4617 | 649.0 | 437.2 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -17.47 | 265.79 | -23.45 | 131.19 | 0.5066 | 819.0 | 556.5 | |
| 3.26 | 3.60 | 1.86 | 2.05 | -16.56 | 265.81 | -23.43 | 129.77 | 0.4980 | -858.8 | -872.2 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -17.54 | 265.62 | -23.63 | 131.09 | 0.5092 | 603.0 | 483.0 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -13.96 | 265.86 | -23.39 | 125.40 | 0.4747 | 733.0 | 592.5 | |
| 1.29 | 74.47 | 0.73 | 42.66 | -16.13 | 265.46 | -23.78 | 128.67 | 0.4982 | -1080.5 | -543.2 | |
| 0.00 | 0.51 | 0.00 | 0.29 | -14.09 | 265.68 | -23.57 | 125.43 | 0.4780 | 657.0 | 508.3 | |
| 4.11 | -24.00 | 2.35 | -24.00 | -15.95 | 265.18 | -24.06 | 128.06 | 0.4999 | -996.3 | 999999 | |
| 2.23 | 20.65 | 1.29 | 11.92 | -17.33 | 264.90 | -24.35 | 129.95 | 0.5155 | 405.7 | -477.9 | |
| 22.71 | -24.00 | 13.04 | -24.00 | -16.49 | 264.91 | -24.34 | 128.63 | 0.5078 | -1004.6 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -15.71 | 264.98 | -24.27 | 127.43 | 0.5003 | -42.0 | -62.8 | |
| 2.40 | -27.00 | 1.39 | -27.00 | -16.99 | 264.50 | -24.75 | 128.99 | 0.5171 | -729.8 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -14.72 | 264.80 | -24.45 | 125.57 | 0.4941 | 786.0 | 508.0 | |
| 0.00 | 2.91 | 0.00 | 1.71 | -17.33 | 263.22 | -26.03 | 128.16 | 0.5349 | -811.0 | -538.1 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -14.46 | 263.34 | -25.91 | 123.65 | 0.5103 | -834.0 | -656.5 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -17.02 | 262.67 | -26.57 | 127.15 | 0.5387 | -805.0 | -668.1 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -18.35 | 262.07 | -27.17 | 128.58 | 0.5566 | -656.0 | -517.1 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -17.35 | 262.07 | -27.18 | 127.05 | 0.5485 | -789.0 | -617.5 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -18.74 | 261.55 | -27.70 | 128.65 | 0.5658 | -805.0 | -651.1 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -18.52 | 261.55 | -27.69 | 128.32 | 0.5639 | -662.0 | -552.5 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -17.04 | 261.59 | -27.66 | 126.14 | 0.5517 | -643.0 | -540.4 | |
| 0.00 | 1.37 | 0.00 | 0.82 | -18.50 | 261.13 | -28.11 | 127.89 | 0.5685 | -748.0 | -567.4 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -12.25 | 261.80 | -27.45 | 118.43 | 0.5143 | -761.0 | -606.8 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -13.57 | 261.64 | -27.61 | 120.57 | 0.5253 | -821.0 | -616.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
