SDO HMI 2011-11-21 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.75 | 370.55 | 47.33 | 235.23 | 14.14 | 252.03 | -37.22 | 69.78 | 0.6272 | -349.3 | -276.4 | |
|
previous
or next observation for the same group /

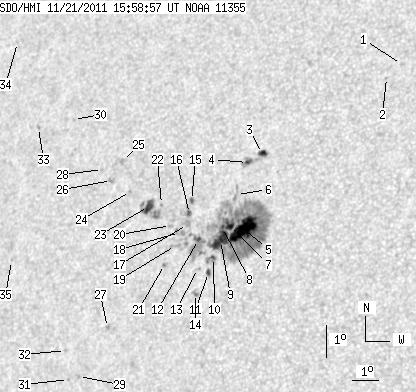

back to the solar disc SDO HMI 2011-11-21 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 1.04 | 19.22 | 257.89 | -31.36 | 58.65 | 0.5776 | -722.0 | -580.5 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 18.81 | 257.43 | -31.82 | 59.62 | 0.5808 | -595.0 | -492.0 | |
| 3.43 | 13.54 | 2.16 | 8.55 | 16.39 | 253.29 | -35.95 | 65.78 | 0.6199 | 643.5 | -414.8 | |
| 0.86 | -3.00 | 0.54 | -3.00 | 16.10 | 252.78 | -36.47 | 66.47 | 0.6252 | -861.0 | 999999 | |
| 32.57 | 267.90 | 20.39 | 168.39 | 14.06 | 253.03 | -36.21 | 69.52 | 0.6141 | -1150.0 | -424.8 | |
| 0.00 | 6.51 | 0.00 | 4.12 | 15.12 | 252.56 | -36.69 | 68.08 | 0.6240 | -272.0 | -299.2 | |
| 4.63 | -5.00 | 2.92 | -5.00 | 14.17 | 252.48 | -36.77 | 69.58 | 0.6216 | -751.0 | 999999 | |
| 0.94 | -5.00 | 0.60 | -5.00 | 14.11 | 252.22 | -37.02 | 69.78 | 0.6246 | -581.4 | 999999 | |
| 15.43 | -5.00 | 9.75 | -5.00 | 13.71 | 252.22 | -37.03 | 70.40 | 0.6233 | -768.4 | 999999 | |
| 1.46 | 6.68 | 0.92 | 4.23 | 13.19 | 252.05 | -37.20 | 71.27 | 0.6238 | -601.0 | -472.4 | |
| 2.40 | 3.17 | 1.52 | 2.00 | 12.74 | 251.94 | -37.31 | 72.02 | 0.6239 | -613.0 | -563.9 | |
| 1.63 | -5.00 | 1.04 | -5.00 | 13.73 | 251.37 | -37.87 | 70.70 | 0.6342 | -504.4 | 999999 | |
| 0.00 | 1.63 | 0.00 | 1.04 | 12.85 | 251.49 | -37.75 | 72.01 | 0.6299 | -517.0 | -442.5 | |
| 0.00 | 2.91 | 0.00 | 1.85 | 12.10 | 251.55 | -37.70 | 73.16 | 0.6270 | 830.0 | 750.6 | |
| 0.77 | 2.06 | 0.50 | 1.33 | 14.90 | 250.86 | -38.38 | 69.11 | 0.6446 | -584.1 | -337.5 | |
| 2.23 | 5.57 | 1.44 | 3.60 | 14.50 | 250.87 | -38.38 | 69.70 | 0.6432 | -573.7 | -373.8 | |
| 0.00 | 4.28 | 0.00 | 2.76 | 14.17 | 250.86 | -38.39 | 70.21 | 0.6422 | -799.0 | -533.9 | |
| 0.00 | 5.31 | 0.00 | 3.43 | 13.92 | 250.59 | -38.65 | 70.68 | 0.6447 | -267.0 | -282.5 | |
| 0.00 | 3.51 | 0.00 | 2.27 | 13.52 | 250.52 | -38.73 | 71.31 | 0.6445 | 246.0 | 255.7 | |
| 0.00 | 1.80 | 0.00 | 1.17 | 14.12 | 250.20 | -39.05 | 70.52 | 0.6504 | 342.0 | 116.9 | |
| 0.00 | 1.97 | 0.00 | 1.28 | 12.94 | 250.20 | -39.05 | 72.30 | 0.6469 | 720.0 | 652.0 | |
| 0.00 | 0.86 | 0.00 | 0.56 | 14.75 | 249.71 | -39.54 | 69.76 | 0.6585 | 805.0 | 707.9 | |
| 8.40 | 21.68 | 5.55 | 14.31 | 14.68 | 249.21 | -40.04 | 70.04 | 0.6644 | 778.1 | 613.8 | |
| 0.00 | 1.20 | 0.00 | 0.80 | 15.12 | 248.38 | -40.87 | 69.69 | 0.6759 | 688.0 | 583.9 | |
| 0.00 | 2.74 | 0.00 | 1.86 | 16.02 | 247.83 | -41.42 | 68.59 | 0.6853 | 769.0 | 640.0 | |
| 0.00 | 3.17 | 0.00 | 2.15 | 15.43 | 247.52 | -41.72 | 69.53 | 0.6871 | 704.0 | 502.1 | |
| 0.00 | 2.49 | 0.00 | 1.65 | 11.00 | 248.28 | -40.96 | 75.75 | 0.6663 | 672.0 | 583.7 | |
| 0.00 | 1.29 | 0.00 | 0.88 | 15.76 | 247.07 | -42.18 | 69.23 | 0.6935 | 459.0 | 403.1 | |
| 0.00 | 1.11 | 0.00 | 0.75 | 9.51 | 247.35 | -41.89 | 78.16 | 0.6752 | 639.0 | 506.1 | |
| 0.00 | 1.03 | 0.00 | 0.73 | 17.25 | 245.42 | -43.82 | 67.71 | 0.7170 | 725.0 | 564.8 | |
| 0.00 | 0.77 | 0.00 | 0.52 | 9.41 | 246.96 | -42.28 | 78.38 | 0.6800 | 447.0 | 375.4 | |
| 0.00 | 1.03 | 0.00 | 0.70 | 10.27 | 246.70 | -42.54 | 77.17 | 0.6847 | 575.0 | 489.4 | |
| 0.00 | 1.54 | 0.00 | 1.12 | 16.97 | 243.98 | -45.26 | 68.55 | 0.7323 | 689.0 | 513.8 | |
| 0.00 | 1.20 | 0.00 | 0.91 | 19.56 | 242.14 | -47.11 | 65.76 | 0.7595 | 513.0 | 423.1 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 12.91 | 243.90 | -45.34 | 74.05 | 0.7235 | 380.0 | 337.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
