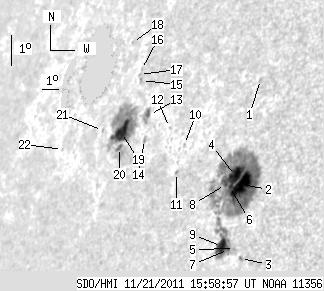

SDO HMI 2011-11-21 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.08 | 361.07 | 63.29 | 344.16 | 14.73 | 231.26 | -57.98 | 73.97 | 0.8536 | -266.7 | -119.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.89 | 0.00 | 1.70 | 17.58 | 233.66 | -55.59 | 70.27 | 0.8377 | -486.0 | -351.5 | |
| 21.25 | 219.31 | 18.78 | 195.49 | 14.37 | 233.96 | -55.28 | 74.04 | 0.8304 | -1065.0 | -283.3 | |
| 0.00 | 1.63 | 0.00 | 1.41 | 12.15 | 234.66 | -54.58 | 76.63 | 0.8211 | 412.0 | 308.6 | |
| 12.60 | -2.00 | 11.27 | -2.00 | 14.63 | 233.54 | -55.71 | 73.79 | 0.8347 | -611.6 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.12 | 12.44 | 234.25 | -54.99 | 76.33 | 0.8254 | -594.0 | -465.5 | |
| 0.60 | -2.00 | 0.54 | -2.00 | 14.29 | 233.34 | -55.91 | 74.23 | 0.8361 | -414.9 | 999999 | |
| 0.86 | 32.91 | 0.75 | 29.26 | 12.40 | 233.95 | -55.30 | 76.41 | 0.8283 | 224.3 | -299.9 | |
| 1.20 | -2.00 | 1.08 | -2.00 | 14.35 | 233.10 | -56.15 | 74.20 | 0.8384 | -195.1 | 999999 | |
| 8.83 | -7.00 | 7.84 | -7.00 | 12.48 | 233.54 | -55.70 | 76.37 | 0.8322 | -507.9 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.92 | 15.48 | 230.26 | -58.99 | 73.26 | 0.8646 | -479.0 | -403.3 | |
| 0.00 | 1.20 | 0.00 | 1.17 | 14.62 | 230.17 | -59.08 | 74.26 | 0.8645 | -388.0 | -335.3 | |
| 0.00 | 0.69 | 0.00 | 0.70 | 15.97 | 229.10 | -60.14 | 72.85 | 0.8746 | -341.0 | -295.8 | |
| 1.46 | 8.74 | 1.55 | 9.33 | 16.32 | 227.64 | -61.61 | 72.63 | 0.8865 | -130.6 | 207.8 | |
| 0.00 | 1.97 | 0.00 | 2.08 | 15.56 | 227.72 | -61.53 | 73.48 | 0.8852 | 453.0 | 356.2 | |
| 0.00 | 2.23 | 0.00 | 2.46 | 17.34 | 226.52 | -62.73 | 71.63 | 0.8959 | -227.0 | -227.5 | |
| 0.00 | 0.60 | 0.00 | 0.67 | 17.67 | 226.31 | -62.94 | 71.29 | 0.8977 | -279.0 | -256.3 | |
| 0.00 | 1.37 | 0.00 | 1.53 | 17.52 | 226.27 | -62.98 | 71.47 | 0.8979 | -247.0 | -211.7 | |
| 0.00 | 0.60 | 0.00 | 0.70 | 18.47 | 225.15 | -64.10 | 70.54 | 0.9067 | 99.0 | 94.4 | |
| 16.71 | 70.62 | 18.63 | 78.74 | 15.72 | 226.10 | -63.15 | 73.48 | 0.8977 | 613.7 | 266.6 | |
| 2.57 | 13.03 | 2.85 | 14.36 | 15.26 | 226.21 | -63.04 | 73.97 | 0.8965 | 469.1 | 262.3 | |
| 0.00 | 1.11 | 0.00 | 1.30 | 15.74 | 224.75 | -64.50 | 73.59 | 0.9074 | -107.0 | -74.2 | |
| 0.00 | 0.94 | 0.00 | 1.22 | 15.07 | 222.13 | -67.12 | 74.54 | 0.9247 | 412.0 | 342.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
