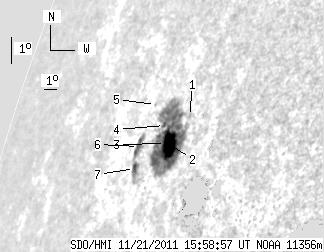

SDO HMI 2011-11-21 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.22 | 179.28 | 44.96 | 226.14 | 17.51 | 222.96 | -66.28 | 71.84 | 0.9205 | -222.5 | -78.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 1.65 | 18.41 | 224.23 | -65.01 | 70.72 | 0.9129 | -565.0 | -485.6 | |
| 19.97 | 153.66 | 24.67 | 191.74 | 17.52 | 223.36 | -65.88 | 71.79 | 0.9180 | -677.7 | -115.4 | |
| 3.17 | -2.00 | 3.98 | -2.00 | 17.54 | 223.04 | -66.21 | 71.79 | 0.9202 | 205.0 | 999999 | |
| 1.20 | -2.00 | 1.54 | -2.00 | 18.08 | 222.56 | -66.69 | 71.25 | 0.9236 | -250.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 1.39 | 18.69 | 221.32 | -67.92 | 70.71 | 0.9316 | -253.0 | -196.8 | |
| 7.11 | 23.22 | 9.69 | 31.36 | 17.38 | 220.97 | -68.28 | 72.15 | 0.9330 | 469.2 | 335.1 | |
| 3.77 | -6.00 | 5.08 | -6.00 | 16.70 | 221.15 | -68.10 | 72.86 | 0.9316 | 415.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
