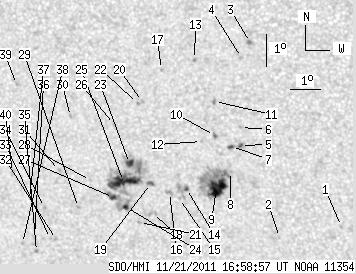

SDO HMI 2011-11-21 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.65 | 217.87 | 33.75 | 123.51 | -16.43 | 266.01 | -22.68 | 130.52 | 0.4882 | -68.9 | -106.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.57 | -17.82 | 271.96 | -16.74 | 141.07 | 0.4381 | 542.0 | 489.2 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -18.19 | 269.89 | -18.80 | 138.42 | 0.4633 | 639.0 | 583.1 | |
| 0.00 | 2.83 | 0.00 | 1.53 | -12.15 | 269.52 | -19.18 | 127.26 | 0.4052 | 1096.0 | 886.5 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -12.61 | 269.19 | -19.50 | 127.73 | 0.4137 | 767.0 | 587.4 | |
| 1.63 | 4.71 | 0.90 | 2.60 | -15.33 | 268.92 | -19.78 | 132.36 | 0.4435 | 750.0 | 511.9 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -14.77 | 268.97 | -19.72 | 131.45 | 0.4372 | -853.0 | -627.6 | |
| 1.80 | -5.00 | 1.00 | -5.00 | -15.36 | 268.62 | -20.07 | 132.01 | 0.4473 | 610.8 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.95 | -16.14 | 268.51 | -20.19 | 133.17 | 0.4565 | 970.0 | 755.2 | |
| 20.91 | 59.90 | 11.70 | 33.51 | -16.68 | 267.99 | -20.71 | 133.35 | 0.4678 | 1024.4 | 454.8 | |
| 1.29 | 1.97 | 0.71 | 1.09 | -15.03 | 268.10 | -20.60 | 130.71 | 0.4501 | -644.7 | -636.6 | |
| 0.00 | 2.06 | 0.00 | 1.13 | -13.98 | 268.20 | -20.49 | 128.97 | 0.4388 | 869.0 | 729.5 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -15.22 | 267.65 | -21.04 | 130.46 | 0.4573 | -631.0 | -501.1 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -12.70 | 267.67 | -21.03 | 125.87 | 0.4338 | 831.0 | 741.6 | |
| 0.86 | 9.08 | 0.48 | 5.13 | -16.69 | 266.99 | -21.71 | 132.07 | 0.4792 | 576.2 | 56.2 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -17.01 | 266.72 | -21.98 | 132.24 | 0.4854 | 469.0 | 344.8 | |
| 0.00 | 3.86 | 0.00 | 2.18 | -16.83 | 266.41 | -22.29 | 131.56 | 0.4872 | -997.0 | -759.8 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -13.02 | 266.56 | -22.14 | 125.13 | 0.4508 | 713.0 | 548.9 | |
| 0.00 | 3.09 | 0.00 | 1.76 | -17.50 | 265.75 | -22.95 | 131.82 | 0.5010 | 675.0 | 564.7 | |
| 2.57 | 3.26 | 1.46 | 1.85 | -16.56 | 265.80 | -22.89 | 130.39 | 0.4916 | -886.0 | -739.2 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -14.01 | 265.83 | -22.86 | 126.09 | 0.4685 | 816.0 | 658.1 | |
| 0.00 | 1.37 | 0.00 | 0.79 | -17.79 | 265.27 | -23.43 | 131.71 | 0.5092 | 677.0 | 508.1 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -14.08 | 265.66 | -23.04 | 126.01 | 0.4712 | 713.0 | 593.2 | |
| 4.11 | 94.44 | 2.34 | 53.98 | -15.94 | 265.18 | -23.52 | 128.65 | 0.4934 | -1010.6 | -523.6 | |
| 1.63 | -23.00 | 0.94 | -23.00 | -17.32 | 264.89 | -23.80 | 130.55 | 0.5091 | 459.9 | 999999 | |
| 22.19 | -23.00 | 12.69 | -23.00 | -16.51 | 264.90 | -23.79 | 129.26 | 0.5017 | -1011.3 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -14.74 | 264.82 | -23.88 | 126.22 | 0.4872 | 764.0 | 609.1 | |
| 2.66 | -23.00 | 1.53 | -23.00 | -17.01 | 264.49 | -24.20 | 129.62 | 0.5109 | -760.4 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -16.49 | 263.78 | -24.91 | 128.01 | 0.5147 | -668.0 | -474.9 | |
| 0.00 | 1.29 | 0.00 | 0.75 | -17.35 | 263.25 | -25.45 | 128.79 | 0.5283 | -798.0 | -619.5 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -14.51 | 263.36 | -25.33 | 124.30 | 0.5035 | -810.0 | -608.9 | |
| 0.00 | 1.63 | 0.00 | 0.95 | -16.20 | 262.76 | -25.93 | 126.48 | 0.5244 | -811.0 | -516.5 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -18.37 | 262.33 | -26.37 | 129.40 | 0.5476 | -731.0 | -633.3 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -18.34 | 262.12 | -26.57 | 129.15 | 0.5497 | -684.0 | -574.7 | |
| 0.00 | 1.63 | 0.00 | 0.96 | -17.37 | 262.07 | -26.62 | 127.62 | 0.5422 | -749.0 | -612.1 | |
| 0.00 | 1.29 | 0.00 | 0.77 | -18.76 | 261.56 | -27.14 | 129.22 | 0.5596 | -775.0 | -685.3 | |
| 0.00 | 1.97 | 0.00 | 1.17 | -18.29 | 261.57 | -27.12 | 128.53 | 0.5555 | -579.0 | -507.7 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -17.09 | 261.59 | -27.10 | 126.74 | 0.5455 | -710.0 | -497.8 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -18.52 | 261.11 | -27.59 | 128.42 | 0.5627 | -661.0 | -566.8 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -13.56 | 261.64 | -27.05 | 121.04 | 0.5181 | -685.0 | -610.7 | |
| 0.00 | 2.83 | 0.00 | 1.67 | -16.29 | 261.13 | -27.57 | 125.04 | 0.5448 | -306.0 | -272.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
