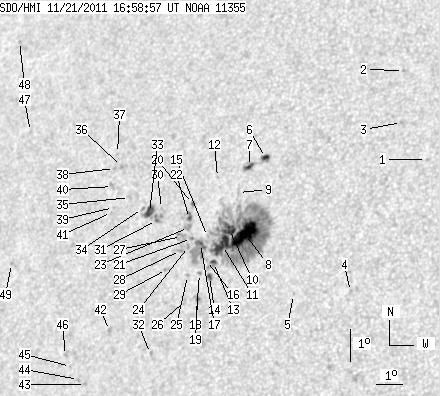

SDO HMI 2011-11-21 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.32 | 373.81 | 51.08 | 235.35 | 14.02 | 252.02 | -36.68 | 69.74 | 0.6198 | -337.6 | -260.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.50 | 16.45 | 259.24 | -29.46 | 61.86 | 0.5370 | -734.0 | -642.0 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 19.17 | 257.90 | -30.79 | 58.33 | 0.5704 | -693.0 | -627.2 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 17.56 | 258.15 | -30.55 | 60.75 | 0.5576 | -641.0 | -563.2 | |
| 0.00 | 1.20 | 0.00 | 0.71 | 12.40 | 257.15 | -31.54 | 70.19 | 0.5452 | -651.0 | -507.0 | |
| 0.00 | 0.77 | 0.00 | 0.47 | 12.27 | 255.12 | -33.58 | 71.34 | 0.5726 | -651.0 | -517.3 | |
| 3.00 | 5.31 | 1.87 | 3.32 | 16.40 | 253.35 | -35.35 | 65.46 | 0.6123 | 700.9 | 405.7 | |
| 3.00 | 6.77 | 1.89 | 4.25 | 16.11 | 252.80 | -35.89 | 66.18 | 0.6180 | -857.7 | -570.3 | |
| 34.53 | 246.89 | 21.47 | 153.79 | 14.05 | 253.05 | -35.64 | 69.31 | 0.6066 | -1176.2 | -452.8 | |
| 0.00 | 2.40 | 0.00 | 1.51 | 15.31 | 252.55 | -36.15 | 67.53 | 0.6180 | -338.0 | -279.6 | |
| 9.43 | -8.00 | 5.91 | -8.00 | 14.18 | 252.42 | -36.27 | 69.35 | 0.6152 | -689.3 | 999999 | |
| 13.28 | -8.00 | 8.33 | -8.00 | 13.70 | 252.25 | -36.45 | 70.20 | 0.6158 | -781.9 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.44 | 15.75 | 251.65 | -37.04 | 67.26 | 0.6310 | 747.0 | 601.6 | |
| 2.06 | 4.88 | 1.29 | 3.07 | 13.18 | 252.00 | -36.70 | 71.11 | 0.6173 | -640.9 | -482.2 | |
| 2.74 | 3.00 | 1.72 | 1.88 | 12.75 | 251.92 | -36.78 | 71.81 | 0.6169 | -650.7 | -582.0 | |
| 0.00 | 1.03 | 0.00 | 0.65 | 13.95 | 251.63 | -37.07 | 70.03 | 0.6247 | -324.0 | -201.9 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 13.23 | 251.72 | -36.97 | 71.13 | 0.6210 | -473.0 | -324.8 | |
| 1.37 | 22.79 | 0.87 | 14.46 | 13.74 | 251.40 | -37.30 | 70.46 | 0.6269 | -553.1 | -69.8 | |
| 0.00 | 1.46 | 0.00 | 0.92 | 12.83 | 251.52 | -37.17 | 71.83 | 0.6223 | -664.0 | -492.7 | |
| 1.29 | 3.86 | 0.81 | 2.43 | 12.05 | 251.58 | -37.12 | 73.04 | 0.6193 | 838.5 | 576.3 | |
| 1.46 | 1.71 | 0.93 | 1.10 | 14.94 | 250.85 | -37.84 | 68.83 | 0.6380 | -467.1 | -340.0 | |
| 0.00 | 1.80 | 0.00 | 1.15 | 13.88 | 251.03 | -37.67 | 70.38 | 0.6321 | -640.0 | -478.0 | |
| 1.71 | 4.54 | 1.10 | 2.91 | 14.48 | 250.83 | -37.87 | 69.53 | 0.6367 | -618.7 | -333.7 | |
| 0.00 | 4.11 | 0.00 | 2.63 | 14.21 | 250.85 | -37.85 | 69.94 | 0.6355 | -814.0 | -526.4 | |
| 0.00 | 1.97 | 0.00 | 1.26 | 13.64 | 250.96 | -37.74 | 70.78 | 0.6322 | -513.0 | -401.9 | |
| 0.00 | 1.29 | 0.00 | 0.82 | 12.76 | 251.08 | -37.62 | 72.09 | 0.6279 | -409.0 | -214.9 | |
| 0.00 | 2.23 | 0.00 | 1.41 | 11.98 | 251.09 | -37.60 | 73.31 | 0.6254 | 669.0 | 490.8 | |
| 0.00 | 5.83 | 0.00 | 3.74 | 13.93 | 250.63 | -38.07 | 70.45 | 0.6374 | -392.0 | -240.7 | |
| 0.00 | 2.40 | 0.00 | 1.54 | 13.51 | 250.67 | -38.02 | 71.08 | 0.6355 | 156.0 | 149.4 | |
| 0.00 | 2.23 | 0.00 | 1.43 | 12.93 | 250.24 | -38.46 | 72.13 | 0.6393 | 723.0 | 599.6 | |
| 0.00 | 0.77 | 0.00 | 0.50 | 14.76 | 249.67 | -39.02 | 69.55 | 0.6521 | 751.0 | 644.2 | |
| 1.11 | 5.74 | 0.73 | 3.74 | 14.39 | 249.55 | -39.14 | 70.14 | 0.6524 | 780.4 | 675.9 | |
| 0.00 | 1.63 | 0.00 | 1.04 | 10.39 | 250.03 | -38.66 | 76.10 | 0.6353 | 796.0 | 649.7 | |
| 6.34 | 10.20 | 4.16 | 6.69 | 14.63 | 249.23 | -39.47 | 69.91 | 0.6572 | 813.0 | 621.9 | |
| 0.00 | 1.46 | 0.00 | 0.96 | 14.75 | 248.92 | -39.77 | 69.85 | 0.6613 | 465.0 | 398.0 | |
| 0.00 | 2.06 | 0.00 | 1.37 | 15.07 | 248.33 | -40.37 | 69.59 | 0.6697 | 702.0 | 564.7 | |
| 0.00 | 1.71 | 0.00 | 1.15 | 16.00 | 247.78 | -40.92 | 68.44 | 0.6793 | 728.0 | 652.6 | |
| 0.00 | 1.03 | 0.00 | 0.70 | 16.39 | 247.52 | -41.18 | 67.98 | 0.6837 | 603.0 | 418.5 | |
| 0.00 | 1.03 | 0.00 | 0.69 | 15.93 | 247.51 | -41.19 | 68.63 | 0.6823 | 748.0 | 550.9 | |
| 0.00 | 0.86 | 0.00 | 0.57 | 14.75 | 247.75 | -40.94 | 70.25 | 0.6757 | 573.0 | 530.9 | |
| 0.00 | 2.74 | 0.00 | 1.85 | 15.38 | 247.56 | -41.13 | 69.40 | 0.6799 | 659.0 | 461.1 | |
| 0.00 | 1.11 | 0.00 | 0.75 | 14.60 | 247.71 | -40.99 | 70.48 | 0.6758 | 547.0 | 453.0 | |
| 0.00 | 3.00 | 0.00 | 1.97 | 11.04 | 248.33 | -40.37 | 75.54 | 0.6589 | 665.0 | 531.0 | |
| 0.00 | 1.46 | 0.00 | 0.96 | 9.41 | 247.62 | -41.07 | 78.15 | 0.6646 | 679.0 | 556.7 | |
| 0.00 | 0.77 | 0.00 | 0.51 | 9.55 | 247.32 | -41.37 | 77.99 | 0.6687 | 552.0 | 489.4 | |
| 0.00 | 0.77 | 0.00 | 0.52 | 9.93 | 246.94 | -41.75 | 77.51 | 0.6742 | 510.0 | 440.0 | |
| 0.00 | 1.20 | 0.00 | 0.81 | 10.26 | 246.69 | -42.01 | 77.08 | 0.6780 | 569.0 | 513.4 | |
| 0.00 | 1.11 | 0.00 | 0.80 | 16.98 | 243.65 | -45.04 | 68.48 | 0.7299 | 645.0 | 503.2 | |
| 0.00 | 1.11 | 0.00 | 0.84 | 19.73 | 242.22 | -46.48 | 65.33 | 0.7535 | 610.0 | 531.4 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 12.96 | 243.91 | -44.79 | 73.86 | 0.7171 | 505.0 | 449.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
