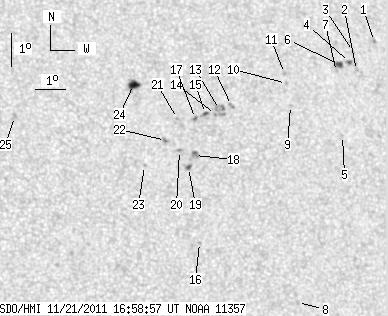

SDO HMI 2011-11-21 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.21 | 62.72 | 9.22 | 35.56 | 17.27 | 313.75 | 25.05 | 303.38 | 0.4856 | -372.7 | -468.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 16:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.26 | 19.48 | 319.58 | 30.89 | 302.09 | 0.5735 | -749.0 | -657.8 | |
| 0.00 | 1.54 | 0.00 | 0.92 | 18.59 | 318.75 | 30.05 | 301.29 | 0.5576 | -638.0 | -515.8 | |
| 0.00 | 1.29 | 0.00 | 0.77 | 19.18 | 318.76 | 30.06 | 302.23 | 0.5615 | -758.0 | -554.7 | |
| 1.80 | 2.14 | 1.07 | 1.27 | 18.84 | 318.54 | 29.85 | 301.85 | 0.5567 | -789.3 | -653.2 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 16.61 | 317.89 | 29.19 | 298.60 | 0.5345 | -685.0 | -527.7 | |
| 3.34 | 3.77 | 1.98 | 2.24 | 18.79 | 318.14 | 29.44 | 302.07 | 0.5513 | -888.8 | -822.6 | |
| 0.00 | 0.94 | 0.00 | 0.56 | 18.57 | 318.02 | 29.33 | 301.80 | 0.5485 | -741.0 | -647.1 | |
| 0.00 | 1.89 | 0.00 | 1.06 | 11.58 | 315.65 | 26.96 | 290.78 | 0.4769 | -664.0 | -582.6 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 17.55 | 316.21 | 27.52 | 301.54 | 0.5189 | -574.0 | -559.0 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 18.23 | 316.19 | 27.49 | 302.72 | 0.5232 | 696.0 | 521.1 | |
| 0.00 | 1.71 | 0.00 | 1.00 | 18.54 | 316.17 | 27.47 | 303.26 | 0.5252 | 748.0 | 446.8 | |
| 0.00 | 2.57 | 0.00 | 1.46 | 17.59 | 314.17 | 25.47 | 303.40 | 0.4931 | -793.0 | -616.2 | |
| 0.00 | 9.77 | 0.00 | 5.53 | 17.47 | 313.74 | 25.04 | 303.60 | 0.4868 | -905.0 | -731.0 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 17.32 | 313.58 | 24.88 | 303.48 | 0.4836 | -878.0 | -769.8 | |
| 1.29 | 3.77 | 0.72 | 2.13 | 17.35 | 313.24 | 24.55 | 303.87 | 0.4796 | -736.6 | -732.5 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 13.44 | 312.55 | 23.86 | 296.89 | 0.4430 | -773.0 | -551.5 | |
| 1.46 | 1.97 | 0.82 | 1.11 | 17.21 | 312.88 | 24.19 | 303.96 | 0.4738 | -714.5 | -628.8 | |
| 0.00 | 5.48 | 0.00 | 3.06 | 16.08 | 312.70 | 24.00 | 302.02 | 0.4629 | -942.0 | -765.9 | |
| 1.89 | 2.06 | 1.05 | 1.14 | 15.71 | 312.45 | 23.75 | 301.57 | 0.4570 | -970.3 | -936.0 | |
| 0.00 | 2.31 | 0.00 | 1.29 | 16.24 | 312.21 | 23.52 | 302.82 | 0.4577 | -1032.0 | -827.3 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 17.21 | 312.27 | 23.58 | 304.60 | 0.4661 | -718.0 | -499.4 | |
| 0.00 | 2.74 | 0.00 | 1.52 | 16.55 | 311.78 | 23.08 | 303.86 | 0.4545 | -793.0 | -594.2 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 15.79 | 310.99 | 22.29 | 303.25 | 0.4383 | 674.0 | 578.0 | |
| 6.43 | 8.31 | 3.58 | 4.63 | 18.28 | 310.93 | 22.24 | 308.04 | 0.4581 | 858.8 | 475.9 | |
| 0.00 | 2.66 | 0.00 | 1.43 | 17.34 | 306.87 | 18.18 | 311.62 | 0.4001 | 672.0 | 519.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
