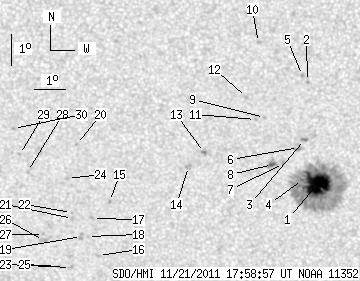

SDO HMI 2011-11-21 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.39 | 255.97 | 21.29 | 142.36 | -24.41 | 283.83 | -4.32 | 171.42 | 0.4549 | 459.9 | 236.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.39 | 201.55 | 19.63 | 111.88 | -24.45 | 284.90 | -3.25 | 173.42 | 0.4518 | 1349.1 | 341.8 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -21.11 | 284.66 | -3.49 | 171.81 | 0.4000 | 763.0 | 599.1 | |
| 0.00 | 2.66 | 0.00 | 1.46 | -23.00 | 284.51 | -3.63 | 172.18 | 0.4300 | 1083.0 | 899.5 | |
| 0.77 | -1.00 | 0.43 | -1.00 | -24.31 | 284.41 | -3.73 | 172.41 | 0.4507 | 670.1 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -20.92 | 284.50 | -3.64 | 171.38 | 0.3973 | 1086.0 | 885.8 | |
| 0.00 | 5.31 | 0.00 | 2.92 | -23.26 | 284.31 | -3.83 | 171.85 | 0.4345 | 767.0 | 737.4 | |
| 0.00 | 1.71 | 0.00 | 0.95 | -23.79 | 283.81 | -4.33 | 171.00 | 0.4439 | 1049.0 | 742.0 | |
| 2.23 | 6.00 | 1.23 | 3.31 | -23.82 | 283.45 | -4.69 | 170.29 | 0.4453 | 851.3 | 645.1 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -22.28 | 283.25 | -4.89 | 169.18 | 0.4221 | 768.0 | 644.3 | |
| 0.00 | 1.97 | 0.00 | 1.06 | -19.87 | 283.14 | -5.00 | 167.63 | 0.3846 | 822.0 | 685.6 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -22.35 | 282.96 | -5.18 | 168.58 | 0.4240 | 864.0 | 650.7 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -21.64 | 282.70 | -5.45 | 167.64 | 0.4138 | 858.0 | 603.2 | |
| 0.00 | 1.97 | 0.00 | 1.09 | -23.44 | 281.26 | -6.88 | 165.69 | 0.4466 | -1001.0 | -765.0 | |
| 0.00 | 3.08 | 0.00 | 1.71 | -23.90 | 280.71 | -7.43 | 164.90 | 0.4557 | -846.0 | -675.7 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -25.08 | 278.03 | -10.11 | 160.78 | 0.4852 | -820.0 | -631.3 | |
| 0.00 | 2.14 | 0.00 | 1.23 | -26.89 | 277.50 | -10.64 | 161.21 | 0.5135 | -558.0 | -369.8 | |
| 0.00 | 1.89 | 0.00 | 1.07 | -25.65 | 277.41 | -10.73 | 160.16 | 0.4965 | -930.0 | -716.1 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -26.25 | 277.19 | -10.95 | 160.24 | 0.5061 | -594.0 | -496.6 | |
| 0.00 | 3.34 | 0.00 | 1.92 | -26.25 | 276.99 | -11.16 | 159.91 | 0.5072 | -820.0 | -708.3 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -23.20 | 277.10 | -11.04 | 157.58 | 0.4636 | -912.0 | -678.1 | |
| 0.00 | 1.89 | 0.00 | 1.08 | -25.65 | 276.74 | -11.40 | 159.04 | 0.5001 | -901.0 | -745.5 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -25.45 | 276.73 | -11.41 | 158.86 | 0.4973 | -741.0 | -598.1 | |
| 0.00 | 2.40 | 0.00 | 1.39 | -27.31 | 276.51 | -11.64 | 159.93 | 0.5242 | -661.0 | -563.5 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -24.32 | 276.70 | -11.44 | 157.87 | 0.4817 | -824.0 | -608.9 | |
| 0.00 | 1.37 | 0.00 | 0.80 | -27.28 | 276.14 | -12.01 | 159.32 | 0.5257 | -399.0 | -398.6 | |
| 0.00 | 2.74 | 0.00 | 1.58 | -26.40 | 275.69 | -12.45 | 157.93 | 0.5162 | -704.0 | -583.6 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -26.20 | 275.71 | -12.43 | 157.80 | 0.5133 | -810.0 | -602.7 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -24.10 | 275.40 | -12.75 | 155.44 | 0.4866 | -719.0 | -652.3 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -23.54 | 275.19 | -12.96 | 154.56 | 0.4804 | -862.0 | -646.3 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -22.69 | 275.07 | -13.07 | 153.50 | 0.4696 | -780.0 | -669.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
