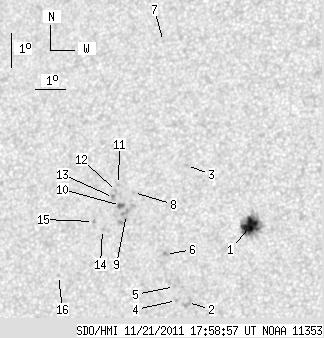

SDO HMI 2011-11-21 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.08 | 73.60 | 9.71 | 39.84 | 7.60 | 264.98 | -23.17 | 75.76 | 0.4041 | -936.8 | -673.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.34 | 39.33 | 8.20 | 21.01 | 7.62 | 266.72 | -21.42 | 74.76 | 0.3769 | -1245.9 | -639.5 | |
| 0.00 | 4.97 | 0.00 | 2.68 | 5.31 | 264.80 | -23.35 | 81.51 | 0.4007 | -717.0 | -742.7 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 9.38 | 264.54 | -23.61 | 71.83 | 0.4176 | -830.0 | -666.1 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 5.36 | 264.44 | -23.70 | 81.49 | 0.4065 | -787.0 | -605.4 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 5.78 | 264.36 | -23.79 | 80.50 | 0.4086 | -722.0 | -616.1 | |
| 0.00 | 1.97 | 0.00 | 1.07 | 6.72 | 264.02 | -24.13 | 78.35 | 0.4163 | -900.0 | -827.3 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 13.09 | 263.44 | -24.70 | 64.55 | 0.4527 | -684.0 | -530.9 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 8.55 | 262.85 | -25.29 | 74.68 | 0.4399 | -723.0 | -607.8 | |
| 0.00 | 10.54 | 0.00 | 5.81 | 7.89 | 262.66 | -25.48 | 76.24 | 0.4406 | -770.0 | -763.8 | |
| 2.74 | 3.34 | 1.51 | 1.85 | 8.16 | 262.45 | -25.70 | 75.75 | 0.4447 | -913.6 | -876.4 | |
| 0.00 | 1.20 | 0.00 | 0.66 | 8.78 | 262.33 | -25.81 | 74.43 | 0.4485 | -767.0 | -585.3 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 8.57 | 262.28 | -25.86 | 74.92 | 0.4486 | -665.0 | -604.9 | |
| 0.00 | 2.31 | 0.00 | 1.28 | 8.39 | 262.20 | -25.95 | 75.35 | 0.4493 | -707.0 | -650.4 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 7.43 | 261.90 | -26.25 | 77.58 | 0.4509 | -817.0 | -584.3 | |
| 0.00 | 1.46 | 0.00 | 0.81 | 7.67 | 261.58 | -26.56 | 77.19 | 0.4564 | -860.0 | -626.8 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 6.04 | 260.51 | -27.64 | 81.03 | 0.4690 | -666.0 | -482.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
