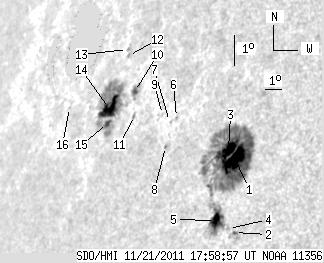

SDO HMI 2011-11-21 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.11 | 367.97 | 60.20 | 340.33 | 14.70 | 231.31 | -56.84 | 73.84 | 0.8434 | -244.7 | -135.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-11-21 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.05 | 225.28 | 17.24 | 195.38 | 14.37 | 234.03 | -54.12 | 73.86 | 0.8193 | -1132.4 | -310.4 | |
| 1.29 | 2.23 | 1.08 | 1.87 | 12.17 | 234.69 | -53.46 | 76.44 | 0.8101 | 331.3 | 249.3 | |
| 10.71 | -1.00 | 9.31 | -1.00 | 14.66 | 233.55 | -54.59 | 73.58 | 0.8242 | -710.9 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.87 | 12.29 | 234.35 | -53.80 | 76.35 | 0.8136 | -482.0 | -404.5 | |
| 8.40 | 31.96 | 7.25 | 27.57 | 12.51 | 233.60 | -54.54 | 76.18 | 0.8211 | -593.2 | -183.9 | |
| 0.00 | 1.20 | 0.00 | 1.14 | 15.54 | 230.30 | -57.84 | 73.03 | 0.8548 | -531.0 | -431.4 | |
| 0.00 | 0.60 | 0.00 | 0.57 | 15.41 | 229.95 | -58.19 | 73.23 | 0.8577 | -458.0 | -430.6 | |
| 0.00 | 1.46 | 0.00 | 1.39 | 14.65 | 230.05 | -58.09 | 74.10 | 0.8561 | -404.0 | -297.8 | |
| 0.00 | 0.77 | 0.00 | 0.75 | 15.61 | 229.45 | -58.69 | 73.07 | 0.8622 | -348.0 | -285.3 | |
| 2.06 | 6.94 | 2.13 | 7.16 | 16.25 | 227.41 | -60.73 | 72.60 | 0.8796 | 379.4 | 96.4 | |
| 0.00 | 1.97 | 0.00 | 2.01 | 15.53 | 227.78 | -60.37 | 73.38 | 0.8760 | 433.0 | 355.6 | |
| 0.00 | 1.46 | 0.00 | 1.56 | 17.33 | 226.42 | -61.72 | 71.51 | 0.8884 | -382.0 | -324.3 | |
| 0.00 | 0.69 | 0.00 | 0.74 | 17.51 | 226.25 | -61.90 | 71.33 | 0.8898 | -335.0 | -293.2 | |
| 18.77 | 91.52 | 20.17 | 98.31 | 15.69 | 226.08 | -62.06 | 73.39 | 0.8895 | 635.9 | 250.1 | |
| 2.83 | -14.00 | 3.02 | -14.00 | 15.23 | 226.19 | -61.95 | 73.89 | 0.8883 | 511.5 | 999999 | |
| 0.00 | 0.86 | 0.00 | 1.01 | 15.63 | 223.34 | -64.81 | 73.73 | 0.9095 | 479.0 | 443.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
