SDO HMI 2011-11-21 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.87 | 73.10 | 9.63 | 41.67 | 17.44 | 313.78 | 25.64 | 303.10 | 0.4938 | -288.2 | -448.0 | |
|
previous
or next observation for the same group /

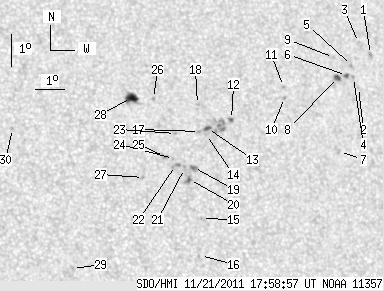

back to the solar disc SDO HMI 2011-11-21 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.23 | 0.00 | 1.35 | 19.52 | 319.59 | 31.44 | 301.77 | 0.5805 | -748.0 | -602.2 | |
| 0.00 | 0.60 | 0.00 | 0.36 | 18.51 | 318.93 | 30.79 | 300.62 | 0.5663 | -537.0 | -386.7 | |
| 0.00 | 1.29 | 0.00 | 0.78 | 19.90 | 319.23 | 31.08 | 302.61 | 0.5785 | -687.0 | -454.7 | |
| 0.00 | 1.20 | 0.00 | 0.72 | 18.82 | 318.82 | 30.67 | 301.21 | 0.5667 | -651.0 | -595.2 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 19.19 | 318.82 | 30.68 | 301.80 | 0.5691 | -701.0 | -553.7 | |
| 1.63 | 2.06 | 0.97 | 1.23 | 18.89 | 318.57 | 30.43 | 301.49 | 0.5642 | -768.7 | -723.6 | |
| 0.00 | 1.97 | 0.00 | 1.16 | 16.56 | 317.89 | 29.75 | 298.13 | 0.5414 | -758.0 | -506.5 | |
| 2.91 | 3.60 | 1.74 | 2.15 | 18.83 | 318.24 | 30.09 | 301.65 | 0.5597 | -897.1 | -825.8 | |
| 0.00 | 1.37 | 0.00 | 0.82 | 19.45 | 318.22 | 30.07 | 302.66 | 0.5634 | -768.0 | -569.0 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 18.25 | 316.23 | 28.09 | 302.25 | 0.5308 | 627.0 | 485.5 | |
| 0.00 | 1.20 | 0.00 | 0.70 | 18.59 | 316.26 | 28.11 | 302.80 | 0.5335 | 751.0 | 550.4 | |
| 0.60 | 1.54 | 0.34 | 0.88 | 17.60 | 314.27 | 26.12 | 302.83 | 0.5015 | -761.9 | -604.5 | |
| 2.31 | 15.85 | 1.31 | 9.01 | 17.34 | 313.40 | 25.26 | 303.16 | 0.4885 | -920.2 | -716.3 | |
| 0.00 | 1.29 | 0.00 | 0.73 | 17.15 | 313.34 | 25.20 | 302.88 | 0.4864 | -803.0 | -662.5 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 14.60 | 312.83 | 24.69 | 298.52 | 0.4619 | -722.0 | -493.3 | |
| 0.00 | 0.43 | 0.00 | 0.24 | 13.48 | 312.67 | 24.52 | 296.41 | 0.4526 | -530.0 | -554.0 | |
| 0.00 | 1.80 | 0.00 | 1.02 | 17.25 | 313.11 | 24.97 | 303.27 | 0.4842 | -934.0 | -726.5 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 18.08 | 313.17 | 25.03 | 304.71 | 0.4912 | -442.0 | -440.1 | |
| 0.77 | 3.51 | 0.43 | 1.97 | 16.15 | 312.76 | 24.61 | 301.58 | 0.4716 | -929.6 | -756.0 | |
| 1.11 | 4.03 | 0.62 | 2.25 | 15.79 | 312.57 | 24.43 | 301.06 | 0.4665 | -982.7 | -809.4 | |
| 0.00 | 1.46 | 0.00 | 0.82 | 16.13 | 312.45 | 24.30 | 301.83 | 0.4673 | -446.0 | -471.2 | |
| 0.00 | 3.17 | 0.00 | 1.77 | 16.22 | 312.16 | 24.01 | 302.30 | 0.4642 | -877.0 | -815.1 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 17.20 | 312.29 | 24.14 | 303.99 | 0.4733 | -691.0 | -493.1 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 16.44 | 312.12 | 23.97 | 302.74 | 0.4653 | -615.0 | -486.3 | |
| 0.00 | 3.00 | 0.00 | 1.67 | 16.50 | 311.82 | 23.68 | 303.16 | 0.4619 | -775.0 | -527.4 | |
| 0.00 | 1.37 | 0.00 | 0.77 | 18.29 | 311.69 | 23.55 | 306.58 | 0.4744 | 768.0 | 480.4 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 15.87 | 311.04 | 22.89 | 302.76 | 0.4468 | 792.0 | 638.9 | |
| 7.54 | 10.20 | 4.22 | 5.70 | 18.33 | 310.95 | 22.81 | 307.47 | 0.4656 | 879.3 | 309.0 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 13.15 | 308.42 | 20.28 | 299.86 | 0.3908 | 742.0 | 643.1 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 17.42 | 306.88 | 18.74 | 310.96 | 0.4076 | 786.0 | 569.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
