SDO HMI 2011-11-21 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.82 | 247.83 | 19.84 | 137.72 | -24.38 | 283.80 | -3.79 | 172.45 | 0.4534 | 379.3 | 257.7 | |
|
previous
or next observation for the same group /

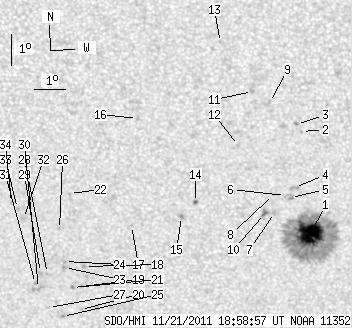

back to the solar disc SDO HMI 2011-11-21 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.22 | 193.84 | 17.86 | 107.59 | -24.48 | 284.90 | -2.69 | 174.55 | 0.4513 | 1371.1 | 367.7 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -21.15 | 284.68 | -2.91 | 173.16 | 0.3992 | 702.0 | 579.8 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -20.92 | 284.53 | -3.06 | 172.73 | 0.3959 | 1002.0 | 869.4 | |
| 0.00 | 3.77 | 0.00 | 2.07 | -22.97 | 284.42 | -3.17 | 173.14 | 0.4285 | 1047.0 | 765.9 | |
| 0.00 | 3.00 | 0.00 | 1.65 | -23.29 | 284.28 | -3.31 | 172.95 | 0.4339 | 770.0 | 791.9 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -23.23 | 284.12 | -3.47 | 172.59 | 0.4332 | 690.0 | 657.8 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -23.79 | 283.75 | -3.84 | 172.01 | 0.4427 | 1118.0 | 924.4 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -23.20 | 283.73 | -3.86 | 171.77 | 0.4335 | 842.0 | 673.6 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -20.22 | 283.69 | -3.90 | 170.45 | 0.3867 | 883.0 | 654.8 | |
| 2.14 | 4.97 | 1.18 | 2.74 | -23.82 | 283.42 | -4.17 | 171.36 | 0.4440 | 866.9 | 680.1 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -19.87 | 283.16 | -4.43 | 169.01 | 0.3826 | 826.0 | 722.7 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -21.60 | 282.66 | -4.93 | 168.76 | 0.4115 | 846.0 | 642.5 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -18.31 | 282.20 | -5.39 | 165.65 | 0.3615 | 742.0 | 589.6 | |
| 1.46 | 1.71 | 0.80 | 0.95 | -23.47 | 281.20 | -6.39 | 166.68 | 0.4452 | -763.5 | -727.3 | |
| 0.00 | 2.23 | 0.00 | 1.24 | -23.93 | 280.72 | -6.87 | 166.00 | 0.4540 | -934.0 | -761.4 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -20.75 | 279.47 | -8.12 | 161.20 | 0.4116 | -723.0 | -535.7 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -24.24 | 279.07 | -8.53 | 163.04 | 0.4654 | -699.0 | -613.6 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -25.61 | 277.40 | -10.19 | 161.05 | 0.4932 | -1054.0 | -797.2 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -26.28 | 277.24 | -10.35 | 161.27 | 0.5035 | -692.0 | -532.6 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -27.06 | 277.14 | -10.45 | 161.64 | 0.5150 | -590.0 | -490.9 | |
| 0.00 | 1.46 | 0.00 | 0.84 | -26.32 | 276.94 | -10.65 | 160.79 | 0.5055 | -822.0 | -731.1 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -23.20 | 277.11 | -10.48 | 158.60 | 0.4603 | -773.0 | -682.2 | |
| 0.00 | 2.40 | 0.00 | 1.37 | -25.65 | 276.73 | -10.86 | 159.94 | 0.4971 | -901.0 | -667.2 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -25.45 | 276.75 | -10.84 | 159.82 | 0.4942 | -548.0 | -532.1 | |
| 0.00 | 1.46 | 0.00 | 0.84 | -27.30 | 276.50 | -11.09 | 160.79 | 0.5214 | -747.0 | -611.5 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -24.38 | 276.68 | -10.91 | 158.84 | 0.4796 | -877.0 | -709.1 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -27.00 | 276.06 | -11.53 | 159.87 | 0.5194 | -662.0 | -499.2 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -25.85 | 276.14 | -11.45 | 159.12 | 0.5031 | -451.0 | -343.7 | |
| 0.00 | 1.63 | 0.00 | 0.93 | -25.82 | 275.91 | -11.68 | 158.71 | 0.5039 | -771.0 | -667.1 | |
| 0.00 | 4.97 | 0.00 | 2.86 | -26.36 | 275.79 | -11.80 | 158.94 | 0.5120 | -717.0 | -643.1 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -26.19 | 275.70 | -11.89 | 158.67 | 0.5102 | -797.0 | -656.8 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -24.03 | 275.52 | -12.07 | 156.52 | 0.4814 | -863.0 | -707.9 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -23.70 | 275.35 | -12.24 | 155.93 | 0.4779 | -692.0 | -612.7 | |
| 0.00 | 1.11 | 0.00 | 0.63 | -23.51 | 275.17 | -12.42 | 155.44 | 0.4763 | -770.0 | -688.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
