SDO HMI 2011-11-21 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.77 | 376.23 | 48.77 | 233.55 | 14.02 | 252.12 | -35.47 | 69.22 | 0.6043 | -318.1 | -275.1 | |
|
previous
or next observation for the same group /

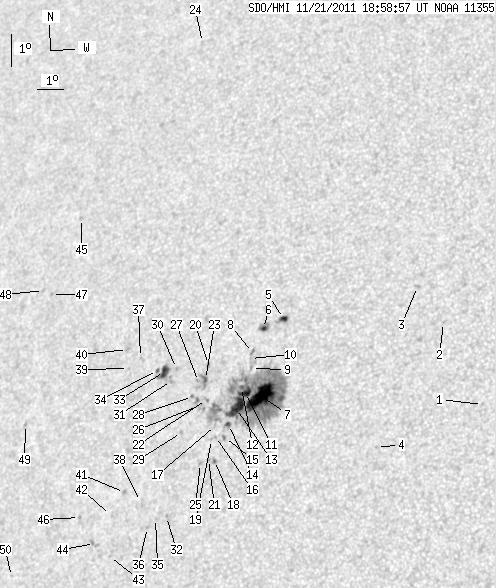

back to the solar disc SDO HMI 2011-11-21 18:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.58 | 13.93 | 260.94 | -26.65 | 64.38 | 0.4849 | -520.0 | -440.8 | |
| 0.00 | 1.29 | 0.00 | 0.75 | 16.40 | 259.24 | -28.35 | 61.13 | 0.5223 | -758.0 | -617.8 | |
| 0.00 | 2.49 | 0.00 | 1.46 | 17.49 | 258.13 | -29.46 | 60.09 | 0.5433 | -710.0 | -600.2 | |
| 0.00 | 0.51 | 0.00 | 0.30 | 12.57 | 257.44 | -30.15 | 69.16 | 0.5266 | -720.0 | -614.2 | |
| 3.17 | 6.08 | 1.95 | 3.75 | 16.42 | 253.45 | -34.14 | 64.80 | 0.5973 | 692.0 | 194.9 | |
| 1.80 | 7.46 | 1.12 | 4.63 | 16.10 | 252.76 | -34.83 | 65.67 | 0.6045 | -892.4 | -658.5 | |
| 36.68 | 275.76 | 22.49 | 169.73 | 14.03 | 253.07 | -34.52 | 68.82 | 0.5918 | -1180.9 | -406.8 | |
| 0.00 | 2.40 | 0.00 | 1.49 | 15.36 | 252.49 | -35.10 | 66.97 | 0.6047 | -614.0 | -480.9 | |
| 0.00 | 1.54 | 0.00 | 0.95 | 14.87 | 252.55 | -35.04 | 67.71 | 0.6020 | -125.0 | -157.3 | |
| 0.00 | 1.03 | 0.00 | 0.64 | 15.17 | 252.45 | -35.14 | 67.28 | 0.6045 | -395.0 | -348.6 | |
| 6.17 | -7.00 | 3.81 | -7.00 | 14.14 | 252.46 | -35.13 | 68.93 | 0.6003 | -793.0 | 999999 | |
| 1.89 | -7.00 | 1.17 | -7.00 | 14.29 | 252.28 | -35.31 | 68.77 | 0.6032 | -523.6 | 999999 | |
| 16.80 | -7.00 | 10.40 | -7.00 | 13.65 | 252.21 | -35.38 | 69.82 | 0.6018 | -766.2 | 999999 | |
| 1.89 | 3.43 | 1.17 | 2.12 | 13.16 | 251.99 | -35.60 | 70.70 | 0.6029 | -636.9 | -525.6 | |
| 0.00 | 1.80 | 0.00 | 1.11 | 12.77 | 251.90 | -35.69 | 71.37 | 0.6026 | -714.0 | -630.1 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 12.79 | 251.56 | -36.03 | 71.46 | 0.6072 | -587.0 | -537.3 | |
| 0.00 | 1.29 | 0.00 | 0.80 | 13.12 | 251.51 | -36.08 | 70.96 | 0.6091 | -62.0 | -65.7 | |
| 0.00 | 1.97 | 0.00 | 1.22 | 12.07 | 251.64 | -35.95 | 72.60 | 0.6039 | 858.0 | 772.1 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 12.70 | 251.43 | -36.16 | 71.67 | 0.6087 | -385.0 | -325.0 | |
| 0.00 | 1.89 | 0.00 | 1.19 | 14.96 | 250.90 | -36.69 | 68.31 | 0.6235 | -516.0 | -451.9 | |
| 0.00 | 1.20 | 0.00 | 0.75 | 12.09 | 251.41 | -36.18 | 72.64 | 0.6070 | 801.0 | 645.5 | |
| 0.00 | 1.89 | 0.00 | 1.18 | 13.90 | 251.03 | -36.56 | 69.91 | 0.6180 | -640.0 | -514.3 | |
| 2.14 | 6.60 | 1.35 | 4.17 | 14.50 | 250.88 | -36.71 | 69.03 | 0.6221 | -637.0 | -416.1 | |
| 0.00 | 1.63 | 0.00 | 1.13 | 24.96 | 247.77 | -39.82 | 55.69 | 0.7052 | -329.0 | -316.9 | |
| 0.00 | 1.71 | 0.00 | 1.07 | 11.97 | 251.13 | -36.46 | 72.94 | 0.6104 | 751.0 | 630.2 | |
| 0.00 | 8.23 | 0.00 | 5.18 | 13.71 | 250.80 | -36.79 | 70.30 | 0.6203 | -161.0 | -259.8 | |
| 0.00 | 1.37 | 0.00 | 0.87 | 14.44 | 250.62 | -36.97 | 69.24 | 0.6251 | -15.0 | -33.2 | |
| 0.00 | 1.37 | 0.00 | 0.87 | 13.98 | 250.48 | -37.11 | 70.01 | 0.6253 | -433.0 | -278.6 | |
| 0.00 | 1.71 | 0.00 | 1.08 | 12.88 | 250.26 | -37.33 | 71.80 | 0.6246 | 869.0 | 700.6 | |
| 0.00 | 1.29 | 0.00 | 0.82 | 14.81 | 249.70 | -37.89 | 69.04 | 0.6382 | 759.0 | 588.3 | |
| 0.00 | 2.83 | 0.00 | 1.82 | 14.44 | 249.58 | -38.01 | 69.64 | 0.6384 | 646.0 | 666.7 | |
| 0.00 | 1.29 | 0.00 | 0.81 | 10.35 | 250.08 | -37.51 | 75.85 | 0.6200 | 837.0 | 662.9 | |
| 6.77 | 9.34 | 4.37 | 6.03 | 14.71 | 249.25 | -38.34 | 69.37 | 0.6435 | 841.7 | 653.8 | |
| 1.46 | 1.71 | 0.94 | 1.11 | 14.74 | 248.97 | -38.62 | 69.44 | 0.6471 | 378.6 | 391.3 | |
| 0.00 | 0.51 | 0.00 | 0.33 | 10.28 | 249.67 | -37.92 | 76.07 | 0.6252 | 625.0 | 546.7 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 10.01 | 249.41 | -38.18 | 76.58 | 0.6282 | 650.0 | 524.7 | |
| 0.00 | 0.69 | 0.00 | 0.45 | 15.11 | 248.21 | -39.38 | 69.16 | 0.6577 | 702.0 | 611.8 | |
| 0.00 | 0.86 | 0.00 | 0.55 | 10.78 | 249.02 | -38.57 | 75.47 | 0.6350 | 225.0 | 338.8 | |
| 0.00 | 1.03 | 0.00 | 0.68 | 14.77 | 247.81 | -39.78 | 69.81 | 0.6615 | 670.0 | 541.5 | |
| 0.00 | 2.40 | 0.00 | 1.59 | 15.35 | 247.64 | -39.95 | 69.03 | 0.6655 | 759.0 | 490.9 | |
| 0.00 | 1.80 | 0.00 | 1.16 | 11.03 | 248.36 | -39.23 | 75.25 | 0.6442 | 754.0 | 625.5 | |
| 0.00 | 0.69 | 0.00 | 0.44 | 10.33 | 247.92 | -39.67 | 76.44 | 0.6483 | 470.0 | 440.6 | |
| 0.00 | 1.11 | 0.00 | 0.72 | 9.11 | 248.06 | -39.53 | 78.29 | 0.6441 | 652.0 | 545.8 | |
| 0.00 | 4.20 | 0.00 | 2.74 | 9.48 | 247.42 | -40.17 | 77.85 | 0.6532 | 348.0 | 526.7 | |
| 0.00 | 1.71 | 0.00 | 1.21 | 19.31 | 244.63 | -42.96 | 64.62 | 0.7142 | 515.0 | 501.0 | |
| 0.00 | 1.20 | 0.00 | 0.79 | 10.25 | 246.71 | -40.88 | 76.85 | 0.6637 | 609.0 | 456.9 | |
| 0.00 | 1.20 | 0.00 | 0.84 | 16.95 | 244.08 | -43.51 | 68.02 | 0.7126 | 655.0 | 495.9 | |
| 0.00 | 1.37 | 0.00 | 0.97 | 17.06 | 243.70 | -43.89 | 67.99 | 0.7172 | 554.0 | 459.5 | |
| 0.00 | 1.29 | 0.00 | 0.89 | 12.98 | 243.99 | -43.60 | 73.54 | 0.7031 | 589.0 | 488.3 | |
| 0.00 | 1.20 | 0.00 | 0.82 | 8.42 | 244.22 | -43.37 | 79.98 | 0.6921 | 529.0 | 430.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
