SDO HMI 2011-11-21 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.85 | 239.03 | 20.43 | 132.76 | -24.43 | 284.05 | -2.99 | 174.05 | 0.4522 | 450.7 | 259.6 | |
|
previous
or next observation for the same group /

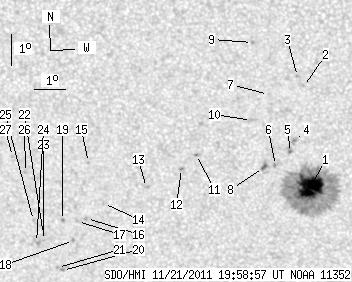

back to the solar disc SDO HMI 2011-11-21 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.36 | 197.96 | 19.05 | 109.85 | -24.48 | 284.87 | -2.17 | 175.60 | 0.4506 | 1353.8 | 342.6 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -21.21 | 284.70 | -2.34 | 174.51 | 0.3992 | 741.0 | 625.5 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -20.89 | 284.51 | -2.52 | 173.99 | 0.3944 | 988.0 | 727.6 | |
| 0.00 | 3.26 | 0.00 | 1.78 | -23.00 | 284.38 | -2.66 | 174.25 | 0.4281 | 988.0 | 785.0 | |
| 0.43 | 3.26 | 0.24 | 1.79 | -23.36 | 284.24 | -2.79 | 174.05 | 0.4340 | 917.6 | 825.6 | |
| 0.00 | 1.71 | 0.00 | 0.95 | -23.79 | 283.75 | -3.29 | 173.14 | 0.4415 | 1028.0 | 787.3 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -21.47 | 283.58 | -3.46 | 172.01 | 0.4055 | 752.0 | 565.4 | |
| 2.06 | 2.66 | 1.14 | 1.47 | -23.85 | 283.36 | -3.68 | 172.36 | 0.4434 | 801.0 | 893.4 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -19.80 | 283.11 | -3.92 | 170.20 | 0.3801 | 910.0 | 730.3 | |
| 0.00 | 3.34 | 0.00 | 1.82 | -22.32 | 283.01 | -4.02 | 171.07 | 0.4201 | 782.0 | 553.4 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -23.43 | 281.20 | -5.84 | 167.78 | 0.4427 | -811.0 | -669.6 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -23.90 | 280.69 | -6.35 | 167.01 | 0.4515 | -929.0 | -791.2 | |
| 0.00 | 1.97 | 0.00 | 1.10 | -24.53 | 279.51 | -7.53 | 165.10 | 0.4654 | -555.0 | -372.7 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -25.07 | 278.06 | -8.98 | 162.78 | 0.4796 | -766.0 | -617.5 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -23.72 | 277.66 | -9.37 | 161.08 | 0.4618 | -833.0 | -675.4 | |
| 0.00 | 1.46 | 0.00 | 0.83 | -25.58 | 277.45 | -9.58 | 162.06 | 0.4897 | -862.0 | -699.8 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -25.68 | 277.14 | -9.89 | 161.60 | 0.4926 | -743.0 | -585.3 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -26.32 | 276.96 | -10.08 | 161.73 | 0.5026 | -885.0 | -753.4 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -25.65 | 276.65 | -10.39 | 160.73 | 0.4946 | -898.0 | -736.3 | |
| 0.00 | 1.37 | 0.00 | 0.79 | -27.34 | 276.49 | -10.55 | 161.67 | 0.5192 | -779.0 | -647.9 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -27.24 | 276.33 | -10.71 | 161.35 | 0.5185 | -688.0 | -608.0 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -26.12 | 275.97 | -11.07 | 159.94 | 0.5048 | -799.0 | -647.8 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -26.32 | 275.95 | -11.09 | 160.07 | 0.5077 | -810.0 | -649.5 | |
| 0.00 | 3.26 | 0.00 | 1.87 | -26.39 | 275.70 | -11.33 | 159.72 | 0.5099 | -701.0 | -619.4 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -25.65 | 275.68 | -11.36 | 159.10 | 0.4998 | -759.0 | -581.8 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -24.06 | 275.56 | -11.48 | 157.57 | 0.4782 | -825.0 | -658.4 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -23.54 | 275.18 | -11.86 | 156.43 | 0.4732 | -910.0 | -748.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
